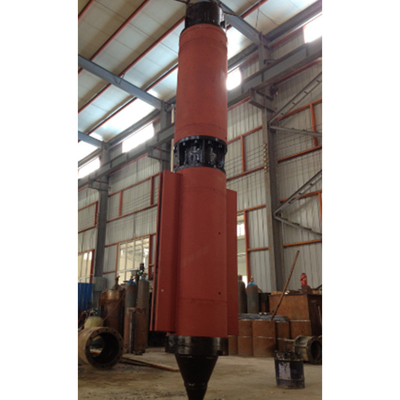

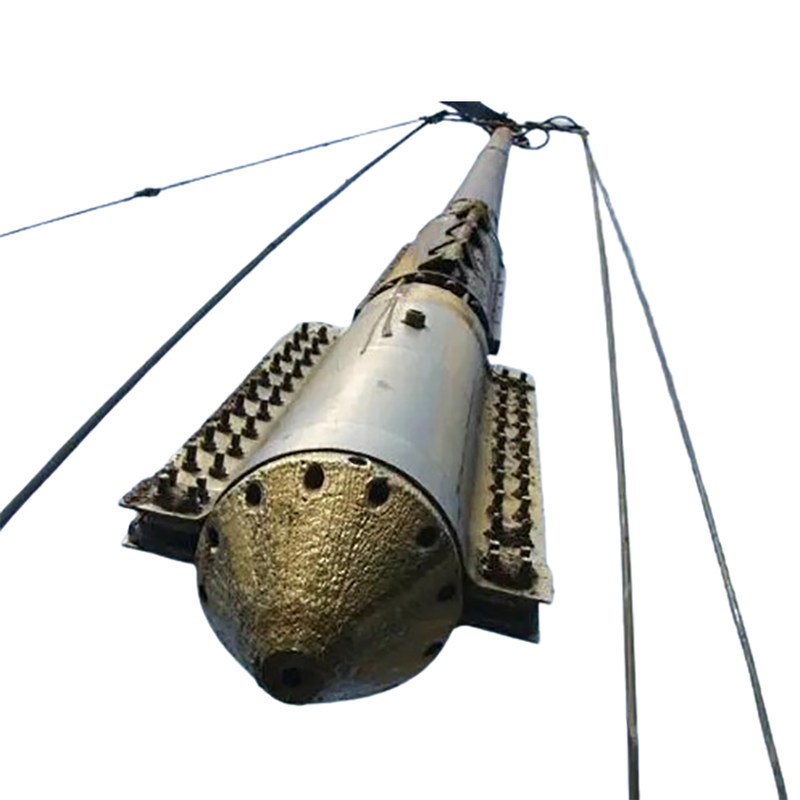

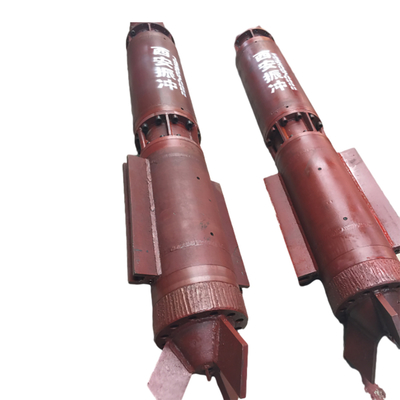

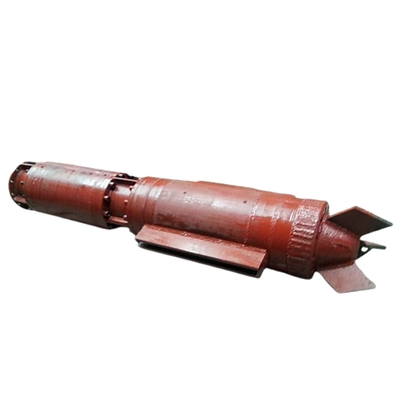

Electrical 55 kW vibroflotation device for strengthen the foundation of shear capacity by stone column pile
parameter |
model |
ZCQ45 |
ZCQ55 |
ZCQ75 |
ZCQ100 |
ZCQ130 |
ZCQ150 |
ZCQ180 |
Motor rated power |
kw |
45 |
55 |
75 |
100 |
130 |
150 |
180 |
Rotating speed |
r/mim |
1450 |
1450 |
1450 |
1450 |
1450 |
1450 |
1450 |
Rated current |
A |
80 |
100 |
150 |
190 |
250 |
290 |
350 |
Vibration frequency |
HZ |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
Dynamic torque |
N.m |
47 |
56 |
69 |
78 |
88 |
96 |
106 |
Exciting force |
kn |
110 |
130 |
160 |
180 |
200 |
225 |
250 |
Empty vibration amplitude |
mm |
≥10 |
≥9.8 |
≥9.5 |
≥9.2 |
≥9.0 |
≥8.8 |
≥8.5 |
Empty current |
A |
≤35 |
≤40 |
≤50 |
≤60 |
≤70 |
≤80 |
≤90 |
Body outer diameter |
mm |
360 |
390 |
426 |
426 |
426 |
426 |
426 |
Body length |
mm |
≤2230 |
≤2465 |
≤2600 |
≤2750 |
≤2860 |
≤3000 |
≤3150 |
Total mass |
kg |
1000 |
1350 |
1800 |
1950 |
2200 |
2350 |
2600 |
Xi'an Zhenchong Machinery Equipment Co., Ltd. (formerly Xi'an Huashan Zhenchong Factory) is located in Fuxin District, Xi'an, a famous historical city in China. It enjoys an advantageous geographical location and convenient transportation. It is adjacent to China's largest inland port - Xi'an International Port Area and several sections. The highway is only a few hundred meters from the highway exit. Founded in 1987, the company is a weak foundation construction machinery integrating R&D, production, sales and promotion, and a widely used non-excavation construction technology. The company always adheres to the principle of “quality first, reputation first”. With its technical advantages, strong professional strength, and the spirit of continuous improvement and continuous development, the company has always been at the leading level in the same industry in the research, development, production and sales of vibrating machines.
Anne Vibroflotation Machinery Co.Ltd.(formerly Xi’an Huashan vibrator factory) is located in the historic city of China- the ancient capital of Xi’an Chanba District, the location and convenient transportation,adjacent to the China largest inland port-Xi’an international port district and highways, export only a few hundred meters away from the highway.
