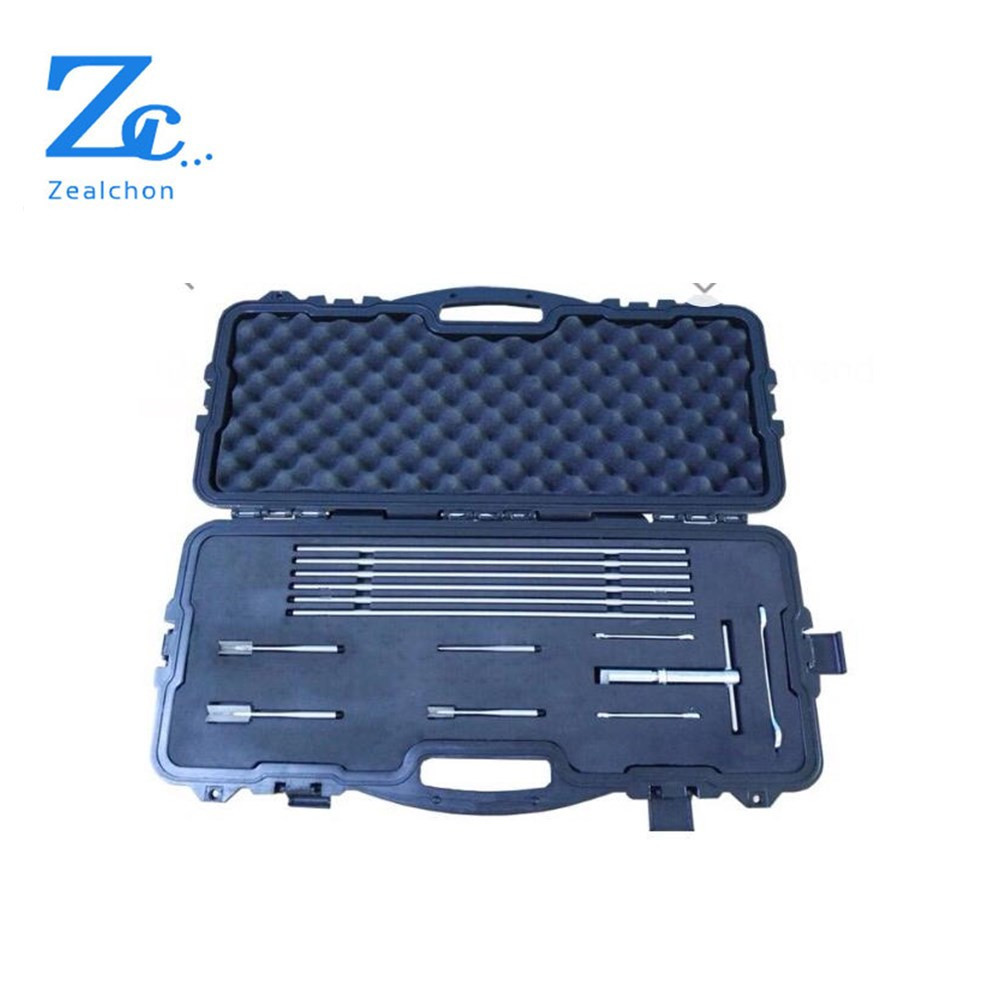

C041 Digital field portable vane shear tester
It is used to measure Natural shear strength of saturated soft clay on site.
Test:Press cross slab head equipped with four blades into depth of the reservation, And cross slab head rotation, measure The resistance of the cylindrical surface is required formed by Vane shear head.
Then put the equivalent resistance of shear resistance on the surface of the cylindrical units
Due to the equipment in the determination of strength index in drilling need to use with drilling equipment, generally can do within 30 m shear test
Cross plate drilling rod should have sufficient strength under the condition of full load , in order not to make the drilling rod distorted, or Torque Angle of rotation curve must be amended
|Cross board size
|Steel ring maximum allowable button space
||800N.m precision 0.55N.m Turbine indexing instructions 1.25° per gradutaion
||range 0-10mm division value 0.01mm
1. Warranty 1 year of replacement and return.
2, Providing factory visit and study, technical training
3, 24-hour technical support by e-mail or phone
4, Providing laboratory construction program design guidelines
5, Providing product design and OEM service
