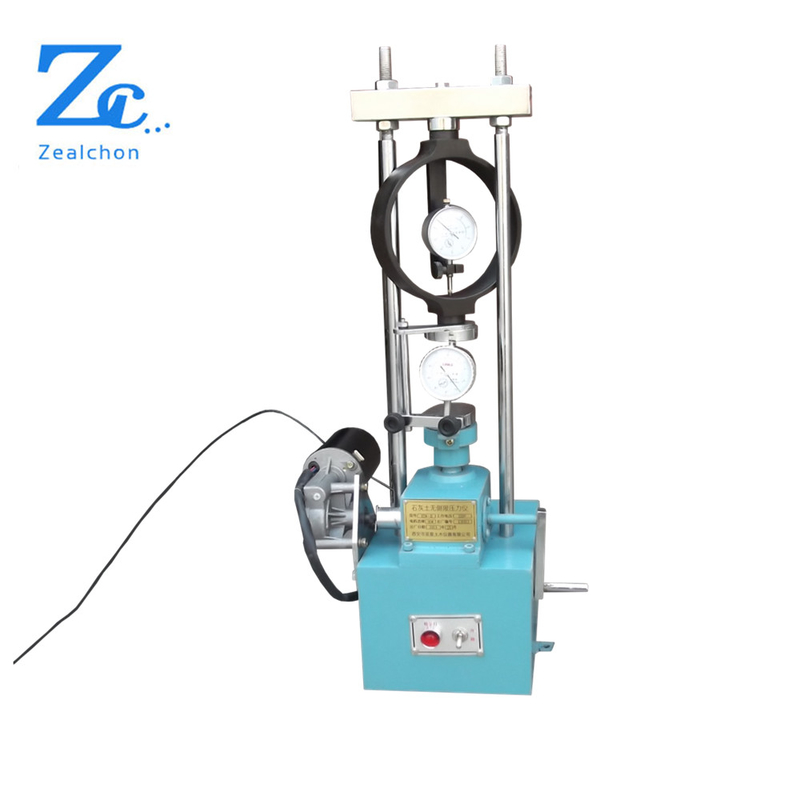

B029 Manual soil strain unconfined compression machine

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	iso
Model Number:	B029

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$600
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Maximum Load Of Proving Ring:	5kN	Soil Sample Size:	Diameter 40mm Height 100mm
Restore Cylinder:	Diameter 40mm Height 100mm Optional	The Climbing Speed Of Screw: Hand:	A Round, Rising 0.058mm Electric 2mm/min
The Scale Of Axial Displacement (dial Indicator):	Range 30mm Division Value 0.01mm

Product Description

B029 Manual soil strain unconfined compression machine

Unconfined Compression Test apparatus can be used either in a laboratory or in field. These are designed as per the set standard and manufactured using high quality Material. Specifications: Consists of a spring operated load frame with arrangements for loading 38 mm x 76 mm samples, one set of four load springs of stiffness 0.2 kg, 0.4 kg, 0.8 kg, and 1.6 kg/mm, a calibrated mask and one set of 50 charts, in a metal carrying case. Spares & Accessories Charts, set of 50 Calibrated mask. Spring set comprising one each of stiffness 2 N/mm, 4N/mm, 8N/mm and 16 N/mm Coning toll for 38 mm sample (female) Coning toll for 38 mm sample (male) Tripod stand wooden, for using the instrument in field.

Unconfined Compression Test apparatus can be used either in a laboratory or in field. These are designed as per the set standard and manufactured using high quality Material.

Specifications:
Consists of a spring operated load frame with arrangements for loading 38 mm x 76 mm samples, one set of four load springs of stiffness 0.2 kg, 0.4 kg, 0.8 kg, and 1.6 kg/mm, a calibrated mask and one set of 50 charts, in a metal carrying case.

Spares & Accessories
Charts, set of 50 Calibrated mask. Spring set comprising one each of stiffness 2 N/mm, 4N/mm, 8N/mm and 16 N/mm Coning toll for 38 mm sample (female) Coning toll for 38 mm sample (male) Tripod stand wooden, for using the instrument in field.

parameters	details
maximum load of Proving ring	5kN
Soil sample size	diameter 40mm height 100mm
Restore cylinder	diameter 40mm height 100mm optional
The climbing speed of screw: hand	a round, rising 0.058mm Electric 2mm/min
The scale of axial displacement (dial indicator)	range 30mm division value 0.01mm
