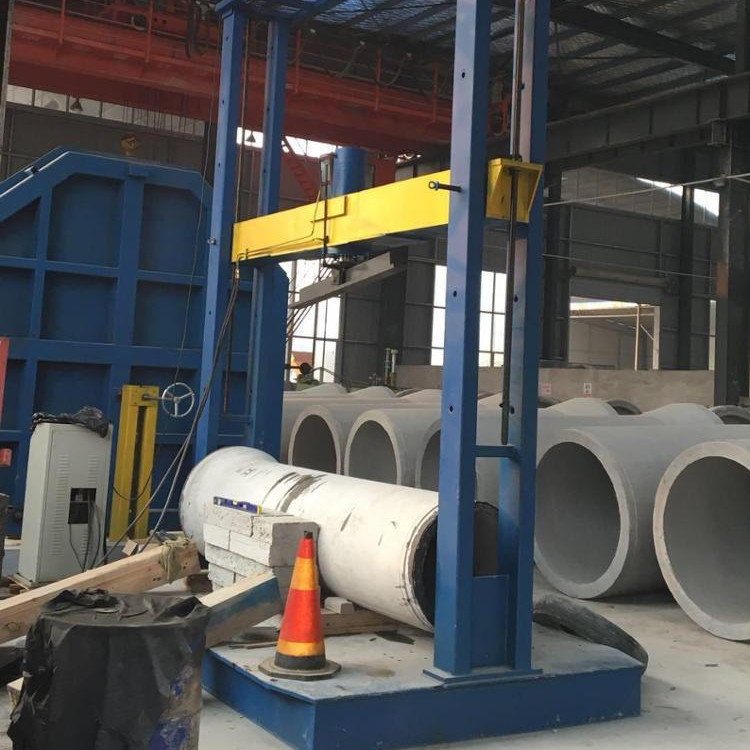

YPW-500W servo controlled compression testing machine for drain external

YPW-500W servo controlled compression testing machine for drain external

YPW-500W servo controlled compression testing machine for drain external

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO
Model Number: YPW-500W

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $20000
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
The Maximum Pressure: 500kN Force Value Accuracy: 1 Level (better Than ± 1% Of The Indication Value)
The Net Spacing Of The Column: 2200mm Test Space: 2200×2000mm
Beam Adjustment Method:: Electric Screw (electric Control Button, Free Adjustment) Beam Adjustment Range: 300mm ~ 2000mm

Product Description

YPW-500W servo controlled compression testing machine for  drain external





The test equipment for concrete and reinforced concrete drainage pipes is in accordance with the national standard "Concrete and reinforced concrete drainage pipes" (GB/T 11836-99), "Test methods for concrete and reinforced concrete drainage pipes" (GB/T 16752-2010) Developed, the three-point compression mode is mainly applied to the external pressure test of concrete and reinforced concrete drainage pipes.





1. The beam is lifted by electric screw to facilitate the test of different diameter drain pipes.

2. The machine base adopts a special structure and is flush with the ground to facilitate the placement of various mouth drains.

3. The loading adopts the microcomputer to control the hydraulic loading, saving time and labor, loading smoothly, and the test space is reset quickly.

4, The loading speed is constant, the whole process is controlled by the microcomputer, which meets the loading speed specified by the national standard and the pressure control time requirement of each stage, and the control level can be arbitrarily programmed by the customer.

5. The stroke of the beam and the piston are all set to limit the safety to ensure the safety of the test process.

6, the software has a force value automatic clearing system, eliminating the artificial zeroing error and other factors

7. The test speed, pressure holding point and holding time can be written during programming, and the microcomputer can fully control the operation.





1, The maximum pressure: 500kN

2, Force value accuracy: 1 level (better than ± 1% of the indication value)

3, The net spacing of the column: 2200mm

4. Test space: 2200×2000mm

5, Beam adjustment method: electric screw (electric control button, free adjustment)

6, Beam adjustment range: 300mm ~ 2000mm

7, Piston stroke: 200mm

8. Upper support beam: 2000mm

9, Hardwood support length: 1000+1000= 2000mm

10, Hardwood support spacing: adjustable

11, Hardwood support rounded corners: fully respond to the national standard

12, Loading method: electro-hydraulic.

13, Control mode: computer automatic control system.

14, The whole machine weight: 5000Kg

15, Dimensions: 3000x1140x4200mm

16. Safety protection: With overload protection function, 3% automatic unloading of force value over-full scale.

17, Configuration: brand computer, LCD monitor, HP color printer.

18, Installation needs to know: due to the huge equipment, the site needs to be grounded in advance, on-site installation, painting, (need to install, hoist).
