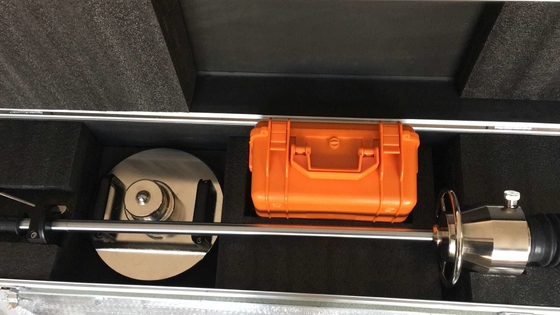

C120 Light Drop Weight Tester with laptop and software operation system

C120 Light Drop Weight Tester with laptop and software operation system

    • C120 Light Drop Weight Tester with laptop and software operation system
    • C120 Light Drop Weight Tester with laptop and software operation system
    • C120 Light Drop Weight Tester with laptop and software operation system
  • C120 Light Drop Weight Tester with laptop and software operation system

    Product Details:

    Place of Origin: china
    Brand Name: zealchon
    Certification: iso
    Model Number: c120

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $6500
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, Western Union, T/T
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Hammer Weight: 10 Kg (can Be Combined) Displacement Sensor Measuring Range: ± 3.5mm
    The Pulse Load Duration: 15-20ms Bearing Plate Diameter: 300mm
    Rated Impact Load: 15 KN

    Product Description

    C120 Light Drop Weight Tester with laptop and software operation system





    Application:



    This handheld instrument is mainly used to determine the value of subgrade deflection under dynamic loads in order to assess the carrying capacity of subgrade; also, to assess the degree of subgrade compaction method by comparison.



    It is suitable for measuring the deflection of soil and grass-roots groups.



    Product Description
    The main technical requirements:

    1, Rated impact load: 15 KN, drop hammer height: 1000mm;
    2, hammer Weight: 10 kg (can be combined);
    3, the dynamic force measurement system accuracy: less than 2%;
    Xi'an Zealchon Electronic Technology Co., Ltd
    4, displacement sensor type: geophone speed sensor;
    5, displacement sensor measuring range: ± 3.5mm;
    6, the displacement sensor resolution: 0.2μm;
    7, the number of displacement sensors: 1;
    8, displacement measurement system accuracy: less than 2%;
    9, each point of measurement time: less than 35 seconds;
    10, the pulse load shape: half sine wave;
    11, the pulse load duration: 15-20ms;
    12, bearing plate diameter: Φ300mm;
    13, with a hand-held tablet PC or laptop wireless transmission of measurement data;
    14, EVD automatically calculated values, display measurement curve;
    15, automatic measurement deflection value, load value;
    16, the station can be set;
    17 can output data EXCEL report;
    18, total weight: about 20 kg;
    19, Ambient temperature: -10-60 ℃.



    Main feature

    Holding a falling weight deflection instrument is used to measure deflection value of the subgrade under dynamic load, to assess the subgrade bearing capacity and deformation. Applies to the dynamic load of railway, highway, airport, urban transportation, ports, docks, and industrial and civil building foundation construction quality control testing, especially suitable for narrow area detection, such as road and bridge (han) transition section and shoulder detection, existing roadbed, etc..







    Detailed Images





    Lab Display



    Trade Shows





    Packing and Shipping







    After-Sales Service



    Contact Us







    Service:







    1. Warranty 1 year of replacement and return.





    2, Providing factory visit and study, technical training





    3, 24-hour technical support by e-mail or phone





    4, Providing laboratory construction program design guidelines





    5, Providing product design and OEM service
