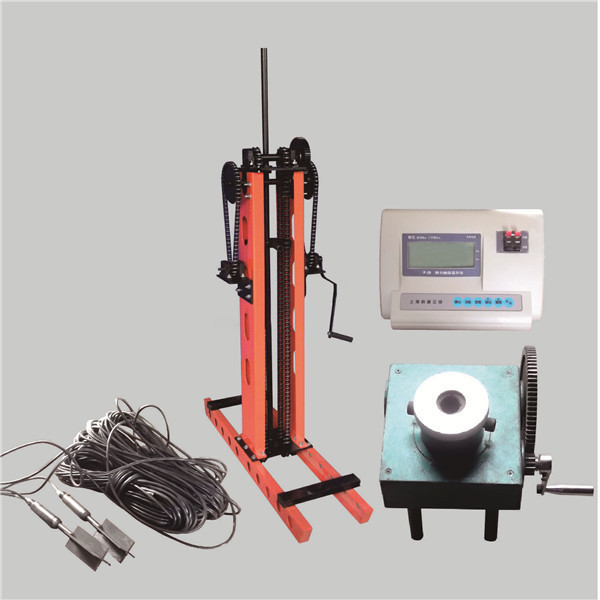

C041 Cross plate shear test machine

C041 Cross plate shear test machine

C041 Cross plate shear test machine

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: iso
Model Number: c041

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $2500
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Cross Board Size: 75mm×150mm 50mm×100mm Steel Ring Maximum Allowable Button Space: 800N.m Precision 0.55N.m Turbine Indexing Instructions 1.25° Per Gradutaion
Leader: 30mm×1040mm Dial Indicator: Range 0-10mm Division Value 0.01mm

C041 In-situ Vane Shear Test Apparatus






It is used to measure Natural shear strength of saturated soft clay on site.


Test:Press cross slab head equipped with four blades into depth of the reservation, And cross slab head rotation, measure The resistance of the cylindrical surface is required formed by Vane shear head.

Then put the equivalent resistance of shear resistance on the surface of the cylindrical units


Due to the equipment in the determination of strength index in drilling need to use with drilling equipment, generally can do within 30 m shear test


Cross plate drilling rod should have sufficient strength under the condition of full load , in order not to make the drilling rod distorted, or Torque Angle of rotation curve must be amended



C041 Cross plate shear test machine







parameter details
Cross board size ¢75mm×150mm ¢50mm×100mm
Steel ring maximum allowable button space 800N.m precision 0.55N.m Turbine indexing instructions 1.25° per gradutaion
Leader ¢30mm×1040mm
5,dial indicator range 0-10mm division value 0.01mm







1. Warranty 1 year of replacement and return.



2, Providing factory visit and study, technical training



3, 24-hour technical support by e-mail or phone



4, Providing laboratory construction program design guidelines



5, Providing product design and OEM service
