Place of Origin: | China |
Brand Name: | zealchon |
Certification: | ISO |

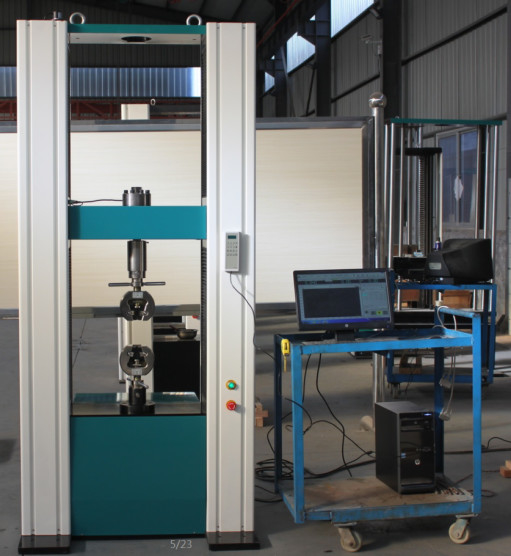

Model Number: | WDW-100E |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $5000 |
Packaging Details: | wooden box |
Delivery Time: | 7days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100sets/month |
Maximum Test Force:: | 100kN | Relative Error Of Indication: | Better Than ±0.5% Of Indication |
---|---|---|---|
Effective Force Range:: | 0.2%-100%F.S(200N-100kN) | Resolution: | 1/500000 |
Specification:
1 Test force
Maximum test force: 100kN
Relative error of indication: better than ±0.5% of indication
Effective force range: 0.2%-100%F.S(200N-100kN)
Resolution: ±1/500000, the whole process is not divided, and the resolution is unchanged
2. Test speed
Speed adjustment range: 0.001 ~ 500mm / min (stepless speed regulation)
Accuracy: Better than ±0.5% of the indication
Displacement rate control accuracy: within ±0.5% of the set value when the rate is <0.1mm/min;
When the rate is ≥0.1%mm/min, within ±0.2% of the set value
3 Displacement (moving beam)
Measuring range: 0 ~ 1200mm
Resolution: 0.03μm
Number | Name | Model | Unit |
1 | Host | Single space | 1set |
|
Ball screw | High precision, no gap | 2sets |
Arc tooth timing belt | 2pc | ||
Pulley | 1set | ||
AC servo motor | Full number; Panasonic | 1set | |
server Driver | Full number; Panasonic | 1set | |
2 | Measurement control system | 1set | |
|
Measurement controller | Detached | 1set |
Special software | 1set | ||
Hand control box | Digital | 1set | |
Load cell | 100kN;USA celtron | 1pc | |
3 | Fixture | ||
|
Wedge clamp | Flat jaws: 0-7mm, 7-14mm | 1set |
Round jaws: Ø9-Ø14mm | |||
Compression test device | Φ150mm | 1set | |
Electronic extensometer | YUU50/25;Gauge:50mm;Deformation:5mm; | 1set | |
4 | computer system | 1set | |
|
Computer | HP mainstream configuration (19 LCD) | 1set |
Printer | A4HP color inkjet | 1set | |
document | Certificate of conformity, instruction manual, packing list, software program installation CD, etc | 1set |
Service:
1. Warranty 1 year of replacement and return.
2, Providing factory visit and study, technical training
3, 24-hour technical support by e-mail or phone
4, Providing laboratory construction program design guidelines
5, Providing product design and OEM service
