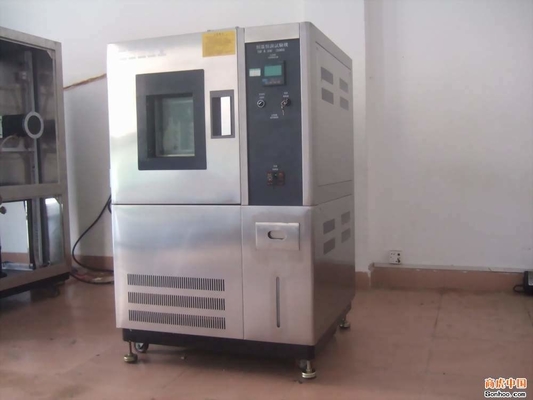

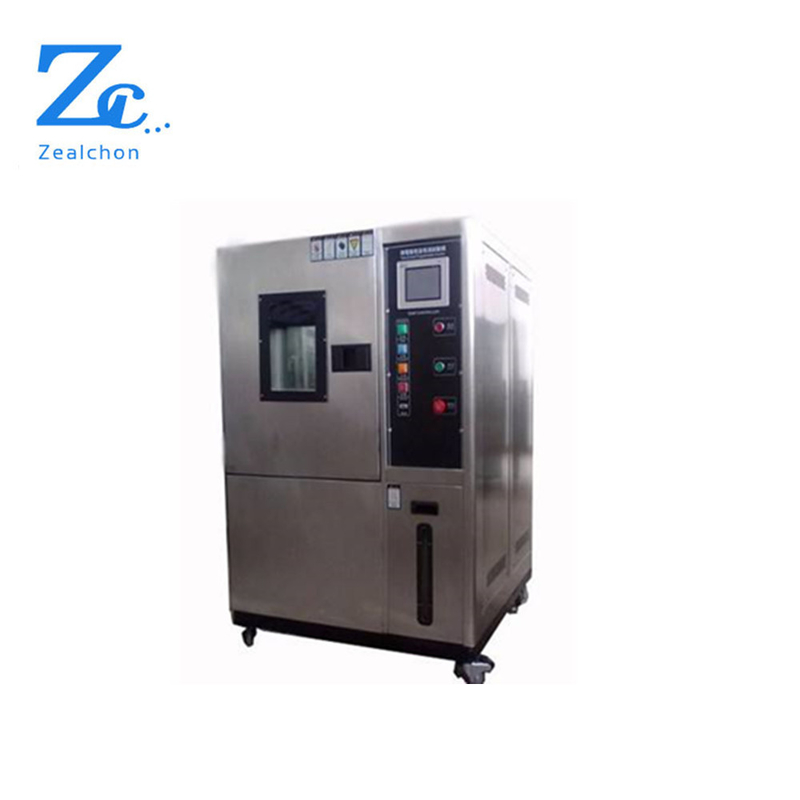

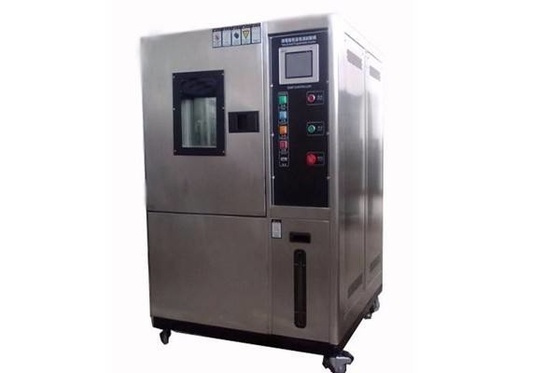

The HS series constant temperature and humidity test chamber is suitable for the reliability test of high and low temperature damp heat (alternating) of industrial products. For parts and materials of related products such as electric and electronic, automobile and motorcycle, aerospace, shipbuilding, universities, research institutes, etc., in the case of high and low temperature (alternating) wet heat cycle changes, test their performance indicators
Structural features
1. The test chamber liner is made of high-grade stainless steel plate, and the outer casing is sprayed with SUS304 stainless steel oil-oil hairline plate or A3 steel plate.
2. The door sealing strip is made of high-low temperature resistant silicone rubber and has good sealing performance.
3. The ideal temperature and humidity control method—balanced temperature and humidity control mode, can automatically obtain the high temperature and high humidity climate test environment.
4. It has the function of automatically selecting the running refrigeration circuit with the set value of temperature, and the operation is simple.
5. Shallow groove humidification method (surface evaporation and humidification method) 6. With observation window and illumination lamp, it is convenient to observe the sample inside the box.
7. Main control instrument: High and low temperature alternating wet heat box adopts imported widescreen LCD display touch screen programmable temperature controller.
Technical Parameters:
Studio volume: 150 liters
Temperature range: 5 to 50 ° C
Humidity range: 50 to 95% RH deviation ± 5% RH
Temperature uniformity: ≤ ± 1 ° C
Temperature fluctuation: ≤ ± 1 ° C
Stainless steel liner, sprayed steel shell, polyurethane foam insulation
Large viewing angle viewing window, lighting
External intelligent atomizer humidifies, can add large capacity and humidify
Unique stainless steel circulation duct, forced air circulation, uniform temperature
With over temperature protection system
