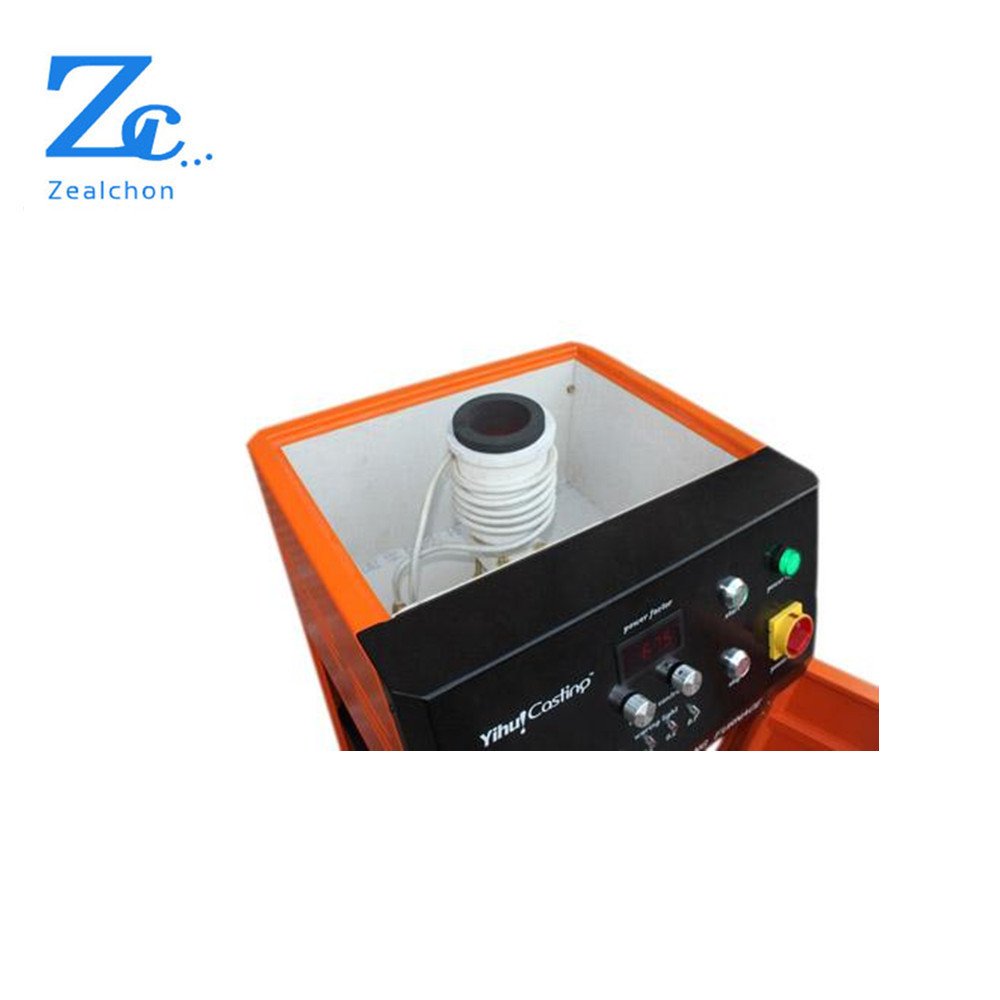

JXG-15 Small induction crucible furnace

JXG-15 Small induction crucible furnace

JXG-15 Small induction crucible furnace

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: iso
Model Number: JXG-15

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $1500
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets
Contact Now
Detailed Product Description
Max Capacity: 10KG Gold Silver Input Power Desire: 3 Phase 380V 50/60HZ
Oscillate Power Max: 15KW Max Input Current: 23A
Output Voltage: 70-520V

Product Description

Small induction crucible furnace (JXG-15)


Main parts of the melting furnace system

1. M.F Induction Heating Power.
2. Tilting type Melting Furnace.

Characteristics of M.F Melting Furnace

  • Better Heating penetration and even temperature inside the melting metal.
  • M.F field force can stir the melting pool to achieve better melting quality.
  • Melting the Maximum quantity by the recommend machine according to above table the melting time is 50-60 minutes, the first melting when the furnace is cold ,and it will take about 20-30mins for the later melting after the furance is already hot.
  • Suitable for melting of steel, iron, cooper, bronze, gold, silver and aluminum, stannum, magnesium, stainless steel.

Main Technical Data
Model JXG-15KW
Max capacity 10KG gold silver
Input power desire 3 phase 380V 50/60HZ
Oscillate power max 15KW
Max input current 23A
Output voltage 70-520V
Oscillate frequency 1-20KHZ
Cooling water desire Only for generator: ≥0.2MPa, ≥3L/Min
For generator & furnace: ≥0.2MPa, ≥6L/Min
Duty cycle 100% 40°C
Melting Speed First cool furnace: 50-60mins
Second heated furnace: 20-30mins
Package dimensions Power 650*750*680mm
Furnace 1000*640*950mm
Gross weight Power 90kg
Furnace 110kg
Cable length 2-6(Meters)


Machine models and maximum melting ability
(the first:50-60mins/furnace.the second:20-30mins/furnace)
Model Steel ,iron Copper, Gold , Silver Aluminum
15KWMelting Furnace   10KG 3KG
25KW Melting Furnace 5KG 20KG 6KG
35KW Melting Furnace 10KG 30KG 10KG
45KW Melting Furnace 18KG 50KG 20KG
70KW Melting Furnace 25KG 100KG 30KG
90KW Melting Furnace 40KG 120KG 40KG
110KW Melting Furnace 50KG 150KG 50KG
160KW Melting Furnace 100KG 250KG 100KG


List of Accessories In the Package

Item Name of machine or parts Specification Amount
1 15KW induction heater - 1 pc
2 10KG Tilting-type furnace With coil and crucible inside 1 pc
3 Foot pedal 3 core 1 pc
4 Connect cable - 1 set
5 Instruction Manual - 1 pc
6 Product catalogue - 2 sets
