    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO
    Model Number: ZCQ75

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $15000
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Rated Power: 75kw Rotating Speed: 1450
    Current Rating: 150 Vibration Frequency: 24
    Moment: 78




    ZCQ series variable frequency electric drive Vibroflot technical parameters





    specification ZCQ45 ZCQ55 ZCQ75 ZCQ100 ZCQ130
    Vibro
    Motor
    rated power kw 45 55 75 100 130
    Rotating speed r/mim 1450 (1950) 1450 (1950) 1450 (1950) 1450 (1950) 1450 (1950)
    Current Rating A 86 110 150 196 256
    Vibration
    move
    machine
    body
    Vibration frequency HZ 24 24 24 24 24
    Moment N.m 47 56 69 78 88
    Exciting force kN 110-200 130-235 180-325 190-350 210-380
    Empty vibration amplitude mm ≥18 ≥16 ≥15 ≥15 ≥16
    Empty LO current A ≤35 ≤40 ≤50 ≤60 ≤70
    The outer diameter of the body mm 351 377 426 426 426
    Body length mm ≤2230 ≤2465 ≤2600 ≤2750 ≤2860
    The total mass kg 1000 1350 1800 1950 2200

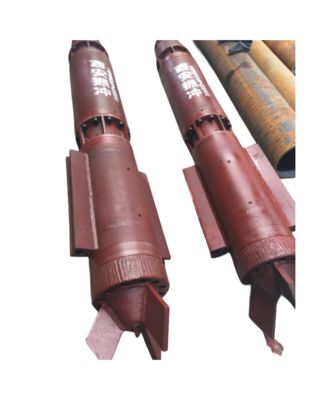

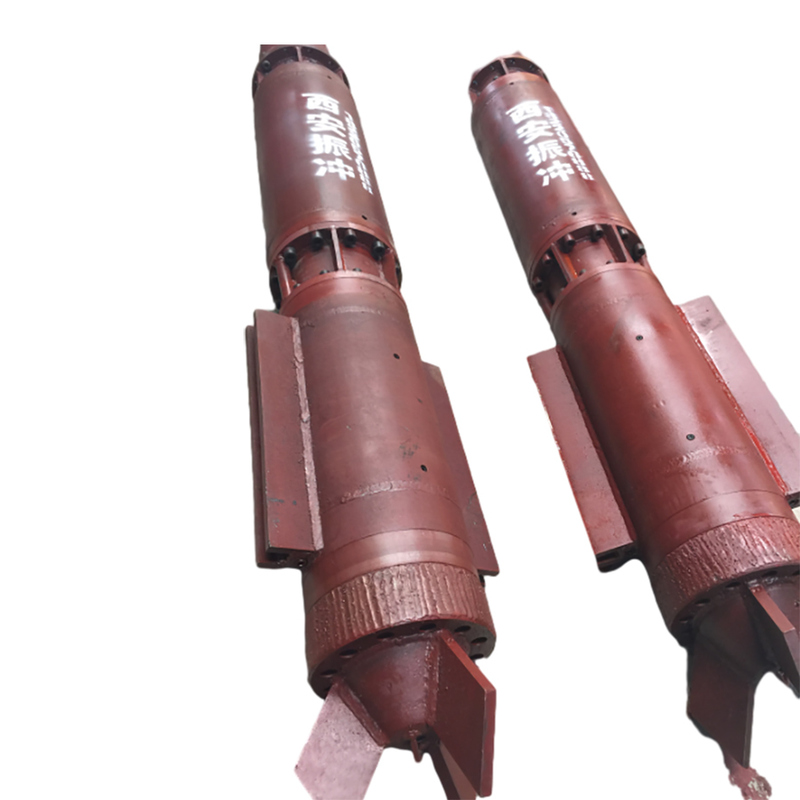

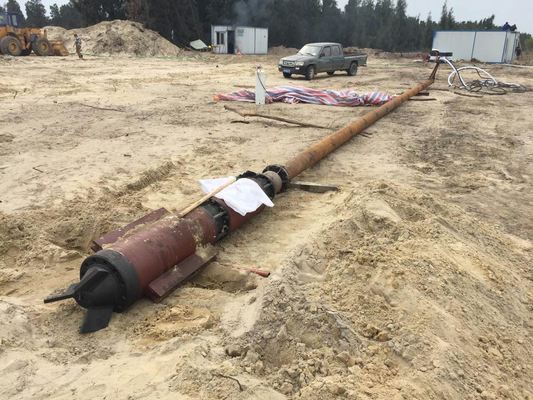

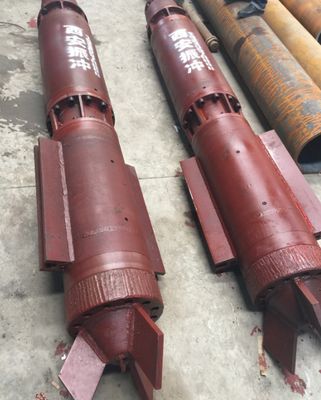

    Detailed Images

    small power ZCQ75kw vibroflot for vibro replacement small power ZCQ75kw vibroflot for vibro replacementsmall power ZCQ75kw vibroflot for vibro replacementsmall power ZCQ75kw vibroflot for vibro replacementsmall power ZCQ75kw vibroflot for vibro replacement







    Packing and Shipping

    small power ZCQ75kw vibroflot for vibro replacement



    small power ZCQ75kw vibroflot for vibro replacementsmall power ZCQ75kw vibroflot for vibro replacement





    Certifications

    small power ZCQ75kw vibroflot for vibro replacement





    small power ZCQ75kw vibroflot for vibro replacement

    After-Sales Service

    small power ZCQ75kw vibroflot for vibro replacement



    small power ZCQ75kw vibroflot for vibro replacement

    Contact Us

    small power ZCQ75kw vibroflot for vibro replacement








    Product Description

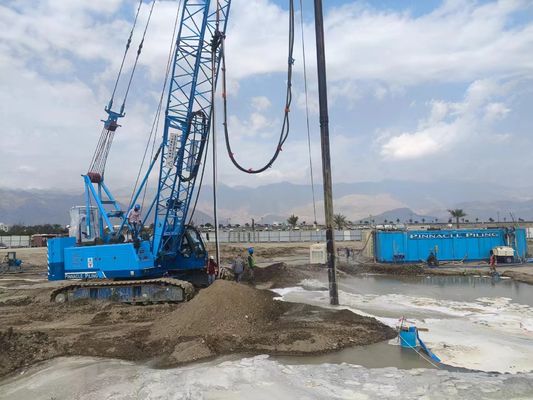

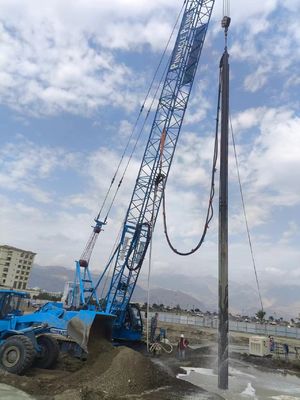

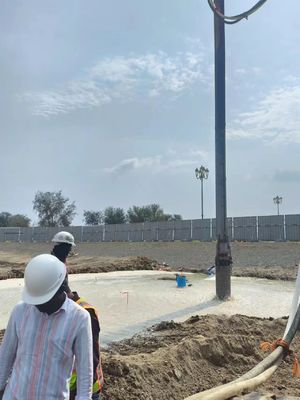

    1.The vibroflot is used for 2 distinct vibroflotation application : Vibro compaction and vibro replacement, in terms of requirement of soil improvement.
    2. The vibroflotation techniques present a very versatile ground improvement method that can be adjusted to a wide variety of ground conditions . Such as sand,silt, gravel, even clay.
    3.Vibroflotation is an application which makes the use of natural or field materials as feed materials. So it is high efficient, economical and valuable for environment protection.

    small power ZCQ75kw vibroflot for vibro replacement
