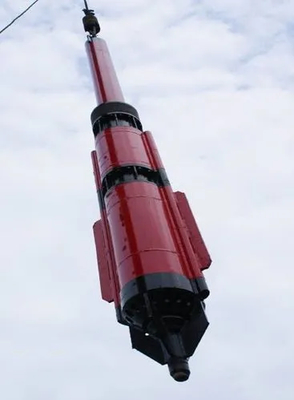

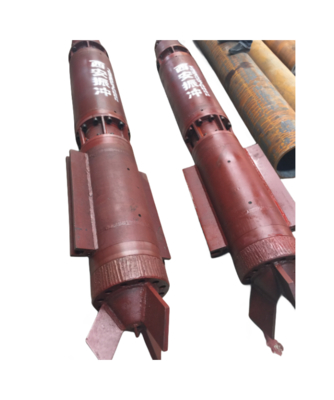

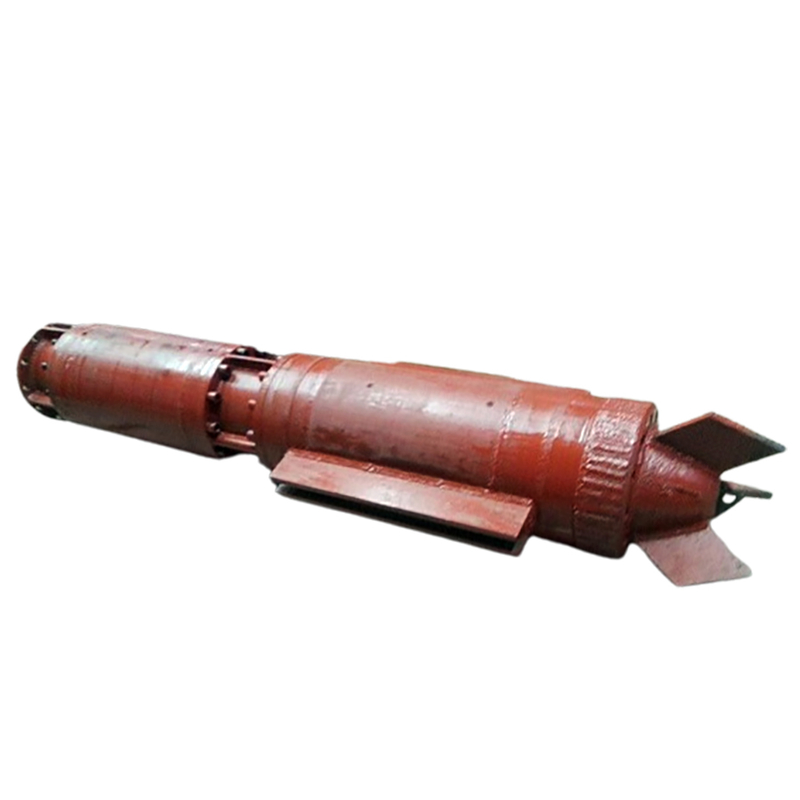

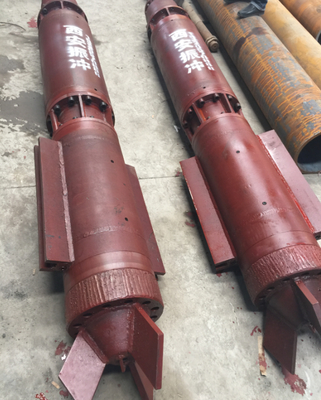

130kW Stone Column Vibroflot pile for foundation treatment

Home Products stone columns Vibroflot Equipment

130kW Stone Column Vibroflot pile for foundation treatment

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	iso
Model Number:	zcq130

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$20000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Rated Power:	130	Rotating Speed:	1450 (1950）
Current Rating:	256	Vibration Frequency:	24
Moment:	88	Exciting Force:	210-380

Product Description

1.The vibroflot is used for 2 distinct vibroflotation application : Vibro compaction and vibro replacement, in terms of requirement of soil improvement.
2. The vibroflotation techniques present a very versatile ground improvement method that can be adjusted to a wide variety of ground conditions . Such as sand, silt, gravel ,even clay.
3.Vibroflotation is an application which makes the use of natural or field materials as feed materials. So it is high efficient, economical and valuable for environment protection.

Products Show

specification			ZCQ45	ZCQ55	ZCQ75	ZCQ100	ZCQ130
Vibro Motor	rated power	kw	45	55	75	100	130
	Rotating speed	r/mim	1450 (1950)	1450 (1950)	1450 (1950)	1450 (1950)	1450 (1950)
	Current Rating	A	86	110	150	196	256
Vibration move machine body	Vibration frequency	HZ	24	24	24	24	24
	Moment	N.m	47	56	69	78	88
	Exciting force	kN	110-200	130-235	180-325	190-350	210-380
	Empty vibration amplitude	mm	≥18	≥16	≥15	≥15	≥16
	Empty LO current	A	≤35	≤40	≤50	≤60	≤70
The outer diameter of the body		mm	351	377	426	426	426
Body length		mm	≤2230	≤2465	≤2600	≤2750	≤2860
The total mass		kg	1000	1350	1800	1950	2200
