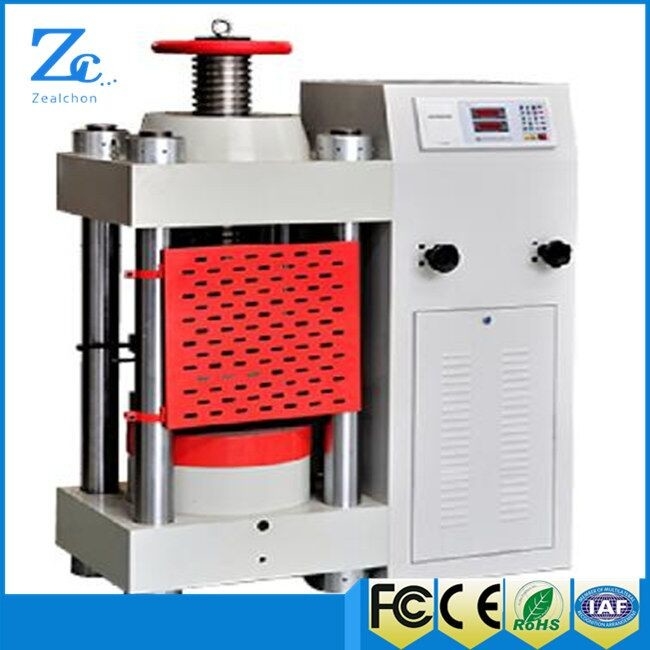

YES-2000 Digital compression testing machine for brick, stone, cement, concrete compressive strength test

YES-2000 Digital compression testing machine for brick, stone, cement, concrete compressive strength test

YES-2000 Digital compression testing machine for brick, stone, cement, concrete compressive strength test

Product Details:

Place of Origin: China
Brand Name: ZEALCHON
Certification: ISO
Model Number: YES-2000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $2000
Packaging Details: wooden box
Delivery Time: within 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
The Maximum Test Compression: 2000kN Test Space Adjustment Mode: Manual Adjustment Screw
Cylinder Stroke: 50mm The Maximum Distance Between The Upper And Lower Platens: 180mm

YES-2000 Digital compression testing machine



Product use:


This machine is mainly used in building materials such as brick, stone, cement, concrete compressive strength test, can also be used in other material mechanical performance testing.
Product description:
1. Structure: equipment, oil sources by the host, control system is composed of three parts
2. Adjust: via hand wheel rotation, adjustment to achieve compression space.
3. Control system: this machine uses hydraulic pressure to add Holland, electronic measurement power, with display load figures, loading rate, maximum load to maintain, as well as overload protection and power features such as data retention.





Safety protection device: when the result exceeds the maximum test force at 3%,

overload protection, pump motor shutdown.

YES-2000 Digital compression testing machine for brick, stone, cement, concrete compressive strength test

Specification:



Product model YES-2000
The maximum test compression 2000kN
Test space adjustment mode Manual adjustment screw
Control mode Manual control the loading process
Accuracy class Level 1
Test force measurement range 4%~100%F·S
Test Force showed the accuracy ≥±1%
Cylinder stroke 50mm
The maximum distance between the upper and lower platens 180mm
The maximum distance between the left and right columns 270mm
Platen size 250×250mm
Host Dimension 900×400×1150mm
Host Power 1Kw/AC380V
Total Weight 750Kg







Service:





1. Warranty 1 year of replacement and return.



1, Providing factory visit and study, technical training



2, 24-hour technical support by e-mail or phone



3, Providing laboratory construction program design guidelines



4, Providing product design and OEM service





YES-2000 Digital compression testing machine for brick, stone, cement, concrete compressive strength test





Related Equipment:




Asphalt sampler, asphalt furnace.



Packing and Shipping:



YES-2000 Digital compression testing machine for brick, stone, cement, concrete compressive strength test





Trade Show:



YES-2000 Digital compression testing machine for brick, stone, cement, concrete compressive strength test



Certification:



YES-2000 Digital compression testing machine for brick, stone, cement, concrete compressive strength test
