Place of Origin: | China |
Brand Name: | ZEALCHON |
Certification: | ISO |
Model Number: | c075 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $3500 |
Packaging Details: | wooden box |
Delivery Time: | 4days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 100 sets/month |
Penetration Resistance Maximum Load Two Types: | 20kN / 30kN | Penetration Depth: | 20 M, 30 M |
---|---|---|---|
Injection Speed: | 0.5-1m/min | The Probe Cross-sectional Area: | 10cm² 15cm² |

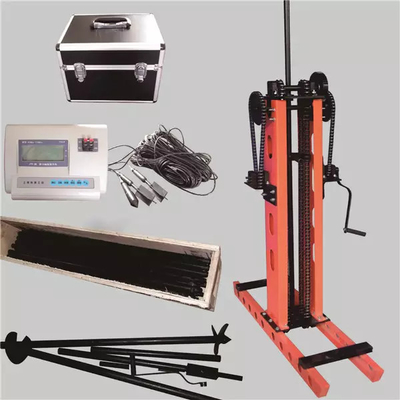

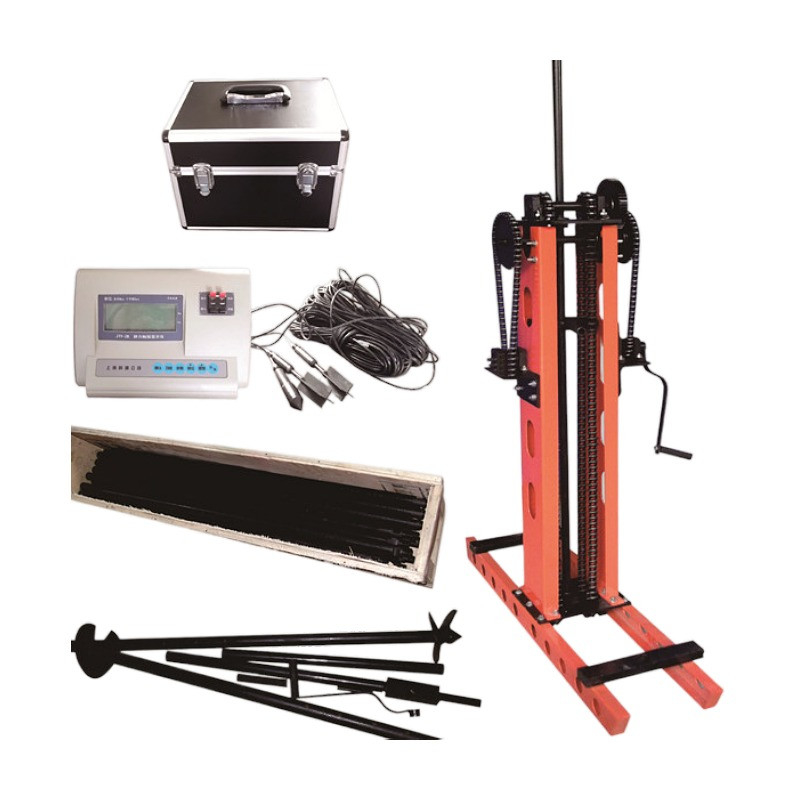

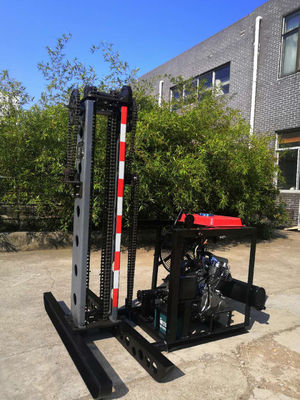

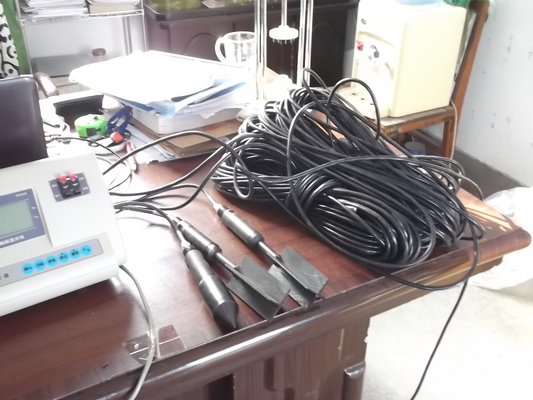

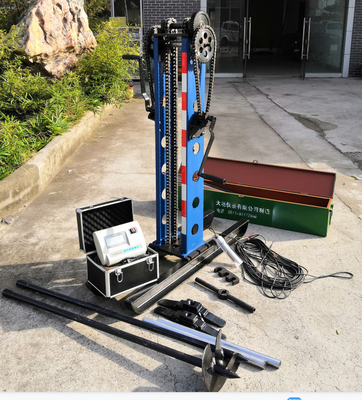

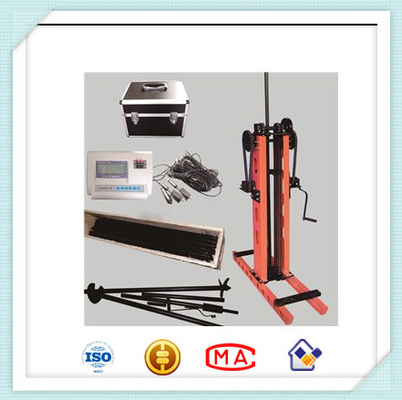

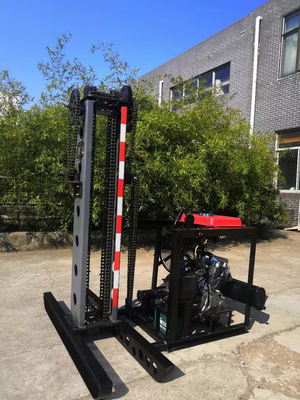

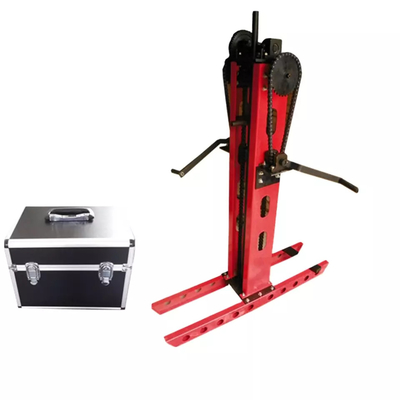

C075 2017 CPT hand static penetrometer from china manufactory
Application:
When we inject the feeler lever with probe into soil Steadily and slowly, we can measure the weight of Penetration resistance, bearing force and side frictional resistance
It is suitable for clayey soil,Soft soil, loess and sand soil. It can provide data of Engineering propertiesfor Geotechnical and structure design and construction. It is also suitable for the situ testing of foundation soil in Construction engineering, municipal, railway, water and electricity engineering.
Also Cross shear head , sensor , speed variator is optional for Field vane shear.
Specification:
parameters | details |
penetration resistance maximum load two types | 20kN / 30kN |
Penetration depth | 20 m, 30 m With the corresponding sheath maerial |
Injection speed | 0.5-1m/min |
The probe cross-sectional area | 10cm² 15cm² |
liquid crystal display(voltage is less or equal 6 v, with battery charging ) operating temperature | 0-40 humidity ≤ 85%PH |
picking rate 10 times/SEC. transducer sensitivity 1.5-3mV/V | |
optional dividing value: 1,2,5,10,20,50 Digital display with LCD :6LED | |
high precision A/D convert, readability 1/30000,digital filtering, speed, range and settling time can be set, A variety of backlight is optional | |
Static sounding can be used with single bridge , More intuitive clear, Charge once can work 200 hours | |
Size 600mm*1200mm*2050mm |
