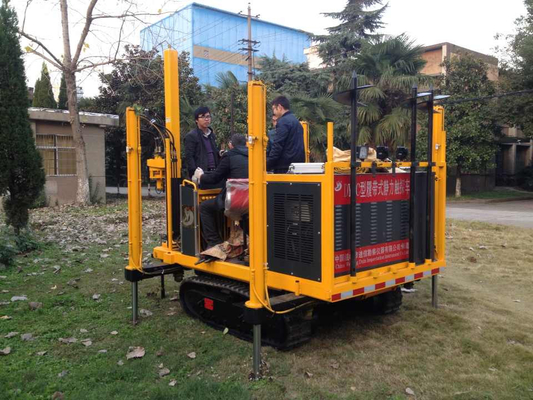

20Ton static cone penetrometer CPT truck with SPT drilling machine

20Ton static cone penetrometer CPT truck with SPT drilling machine

    • 20Ton static cone penetrometer CPT truck with SPT drilling machine
    • 20Ton static cone penetrometer CPT truck with SPT drilling machine
    • 20Ton static cone penetrometer CPT truck with SPT drilling machine
    • 20Ton static cone penetrometer CPT truck with SPT drilling machine
    • 20Ton static cone penetrometer CPT truck with SPT drilling machine
    • 20Ton static cone penetrometer CPT truck with SPT drilling machine
    • 20Ton static cone penetrometer CPT truck with SPT drilling machine
    • 20Ton static cone penetrometer CPT truck with SPT drilling machine
    • 20Ton static cone penetrometer CPT truck with SPT drilling machine
    • 20Ton static cone penetrometer CPT truck with SPT drilling machine
  • 20Ton static cone penetrometer CPT truck with SPT drilling machine

    Product Details:

    Place of Origin: China
    Brand Name: ZEALCHON
    Certification: ISO
    Model Number: DYLC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $20000
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Power(diesel Engine): 13.2KW Working Dimension: 3250x1400x7000mm
    Drilling Depth: 130m Max Drilling Diameter: 480mm

    Application of drilling rig





    1. Applied for general investigation, geophysical exploration, highway, building construction and blast-hole drilling etc.



    2. with hydro-automatic feeding device, and high drilling efficiency.

    3. Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
    4. Close levers, convenient to operate, safe and reliable operations.

    5. Crawler type, suitable for rugged venue operations, very easy to move and transport;
    6. Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.



    Product pictures:



    Specification of drilling rig



    20Ton static cone penetrometer CPT truck with SPT drilling machine

    Model Items Unit Specification
    1 structure / Rotary
    2 power(diesel engine) kW 13.2
    3 Working dimension mm 3250x1400x7000
    4 weight kg 2300
    5 Drilling depth m 130
    6 Max drilling diameter mm Ø480
    7 Driving pipe/drill pipe mm 53x59x4200 /Ø50
    8 Drill bits mm Ø75- Ø220
    9 rotary speed r/min 142;285;570
    10 Hoisting machine Diameter of roll mm Ø140
    Single ling lifting speed m/min 0.41;0.82;1.64
    Max.single line hoisting capactiry t 0.96
    coiling length m 27
    Steel wire rope mm Ø9.3
    11

    Twoer



    Rate load t 3
    Effective height m 6.5
    Model lift and telescopic hydraulic tower
    12 Water fault Max.lifting capacity t 4
    Diameter of rubber duct mm Ø38
    13 Mud pump model / BW95A
    Flow L/min 95
    pressure m 1.5
    Reciprocating frequency Times/min 93





    Parameter
    Engine
    single cylinder 180 diesel engine horizontal four stroke water cooling
    Rated power - speed
    5.67KW-2600r / min
    CPT hydraulic cylinder device
    rated penetration force 50KN
    Rated pull force
    70KN
    Stroke
    570mm
    Weight
    180 kg
    Ground anchor form
    single leaf or multi-leaf anchor anchor
    Maximum working environment Permissible temperature:
    45 ° C
    Supporting probe
    10cm2
    Measuring instruments
    static data collection or automatic collection of European and American brands
    Testing results
    20Ton static cone penetrometer CPT truck with SPT drilling machine
    20Ton static cone penetrometer CPT truck with SPT drilling machine
    20Ton static cone penetrometer CPT truck with SPT drilling machine
