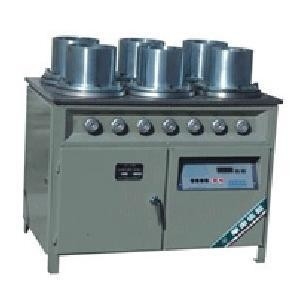

E22 Digital Concrete Impervious Apparatus
Application:
The apparatus is used to test the impervious properties of concrete which resist liquid medium like water and other liquid (Light Oil and Heavy Oil), it is widely used in all kinds of QI department, Lab in construction firm , scientific and Research Unit and all academy.
Main technical data:
- Max.Working pressure:4Mpa
- Specimens at one test:6 Pcs
- Specimen size:Inner Dia of upper opening: 174mm; Inner Dia of bottom opening: 185mm; Height: 165mm
- Piston data:Pump Dia: 10mm; Piston stroke: 10mm; Frequency: 130rpm; Flux: 0.11m
- Work voltage:AC220V
- Operation way: voltage set automatically or manually.
- Dimension: 1300x660x945mm
- Net weight: 370Kgs
Specifications
Concrete Permeability Tester
Low-cost supply of Concrete Permeability Tester
only for lab use
Test 6pcs specimens one time
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
