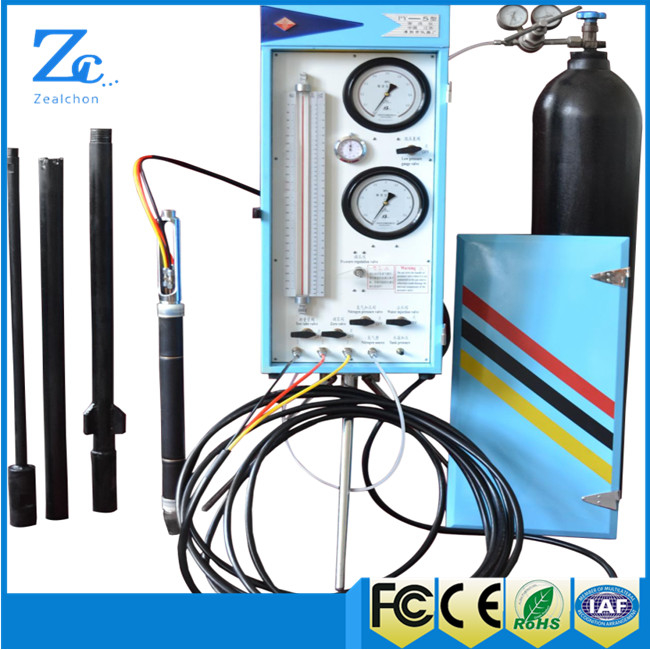

C148 Soil Menard Pressuremeter for soil on site testing machine

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO
Model Number:	C148

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$7000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Nade Nonimal Dia.:	ø50mm	Dia.with Metal Shield:	ø55mm
Measure Chamber Length:	250mm	Pressuremeter Length:	800mm

Pressuremeter test

Test Description:

The pressuremeter test is an in-situ testing method used to achieve a quick measure of the in-situ stress-strain relationship of the soil. In principle, the pressuremeter test is performed by applying pressure to the sidewalls of a borehole and observing the corresponding deformation.

For the test readings (volume variation based on controlled pressure), a stress-strain curve can be obtained, in the case of plane deformation, which yields:

-the Menard pressuremeter modulus

-the creep pressure

-the Menard limit pressure

Specification

C148 Soil Menard Pressuremeter for soil on site testing machine

Item	Parameter		Model
			PY-3	PY-4	PY-5
1	Pressuremeter	Nade Nonimal dia.	ø50mm
		Dia.with metal shield	ø55mm
		Measure chamber length	250mm
		Pressuremeter length	800mm
2	Measuring precision	Min.reading of pressure gauge	0.005Mpa
		Volume meter effective range	400mm
		Comprehensive error	≤±1%
		Measurements	Electrical measurement and visual
3	Others	Max.Pressure	2.5Mpa	4.0Mpa	5.5Mpa
		Size	830×360×220mm
		Weight	28kg
		Range	Clay, silt and other formations	Hard clay, silt, sand and other formations	Clay, silt, sand, weathered rock, soft rock strata

Packaging
