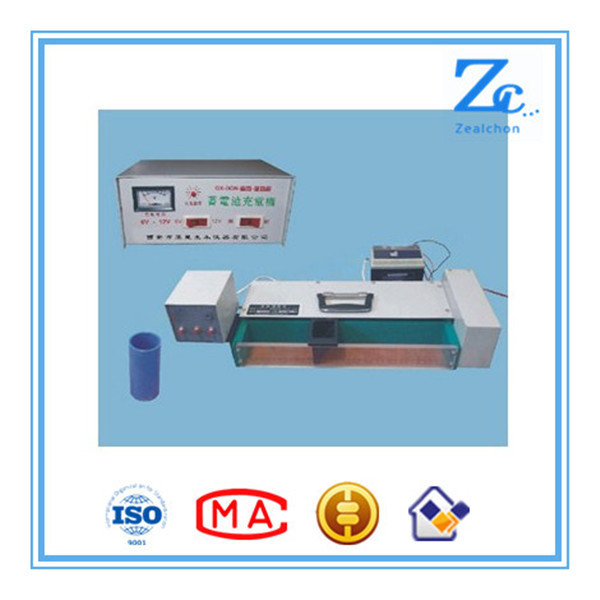

B027 Electric sanding device(measuring pavement structural depth)

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO
Model Number:	B027

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$1500
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Sanding Move Rate:	9-15mm/s	Sand Funnel Opening Width:	2.7mm
The Capacity Of Sand Funnel:	170ml	The Capacity Of Standard Measuring Cylinder:	50ml

B027 Electric sanding device(measuring pavement structural depth)

The instrument used to measure depth of asphalt pavement and cement concrete road surface construction, evaluate the macro structure of the airports, ports, DAMS, road surface.

YLPY-3 Electric sanding method of pavement structure depth tester YLPY – 3	Manual sanding method of pavement structure depth tester
12V power source: 12V	Measuring tube closed at one end, volume:25ml±0.15ml
boundary dimension470mm×160mm×140mm	boundary dimension470mm×160mm×140mm
The sand funnel driving range: 290mm	Push plate aluminum diameter length50mm height: 86mm rubber sheet thickness1.5mmΦ50mm
Sanding move rate 9-15mm/s	wind screen 300mm×300mm×300mm
Sand funnel opening width 2.7mm, Sanding belt size 50mm thickness: 4mm	Special sand, The amount of sand0.15-.03mm, autogamy
The capacity of sand funnel170ml, The amount of sand 0.15-.03mm, autogamy	The special rubber feet length 180mm width 100mm height 100mm
The capacity of Standard measuring cylinder50ml	measure gauge 0mm-300mm
wind screen 300mm×300mm×300mm
