Schematic Diagram
Description:

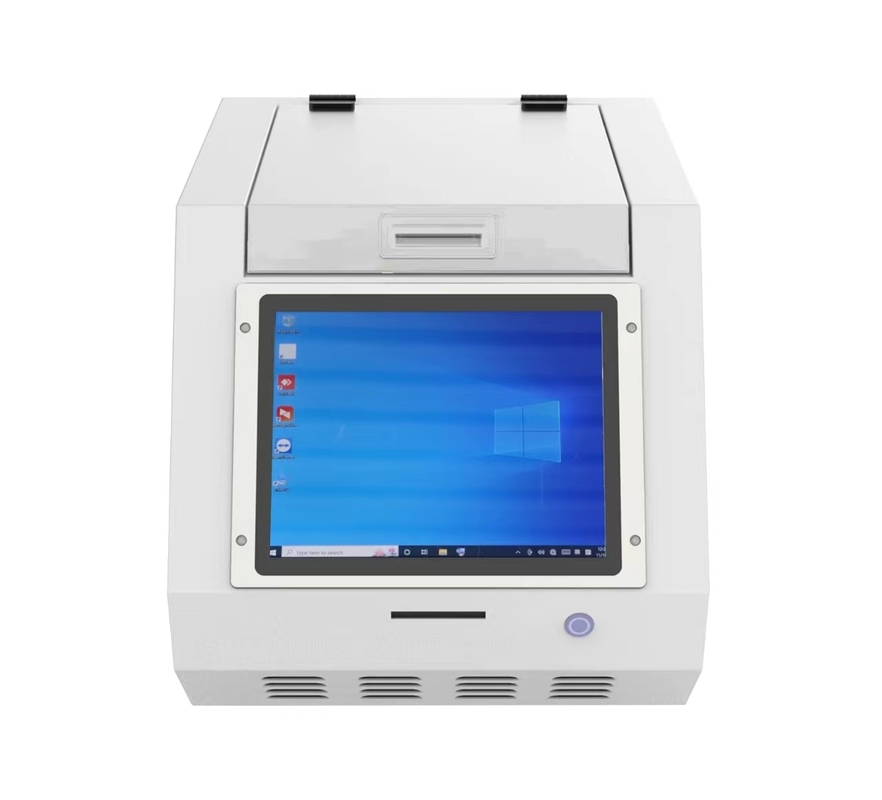

EXF 8300 is integrated an industrial computer with industrial motherboard & multi-point hand touch, providing best operation experience.
It is designed exactly to security standards with active radiation protection, high voltage protection and X-ray tube overheating protection. Warm-up and anti interference procedure is controlled by the program, to reduce the interference by the reflected X-ray and the spectrums, to add the accuracy and stability.
Optional colors for different elements will help to distinguish the interested elements clearly and conveniently. When the testing is over, the testing report will be shown timely.
Applications:
Fast, precise and non-destructive metal testing for jewellery retailers, jewellery manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions.
Specifications:
| Working Principle: |
Energy Dispersive X-ray Fluorescence |
| Size(mm): |
670*400*330 |
| Detection limit: |
100ppm Best substance effect |
| Precision: |
±10ppm~0.2% |
| Expanded Uncertainty: |
≤0.36% |
| Operating Environment: |
Temperature 0-28℃
Humidity ≤70%
|
| High Voltage: |
0~50KV/0~1MA |
| Detector: |
Gas Proportional Detector |
| Testable Elements: |
Au, Ag, Cu, Zn, Ni, Pt, Pd |
| Hare Ware: |
Integrated PC with touch screen, Wireless LAN, USB interfaces, Video camera |
| Main Structure: |
High-strength metal frame and industry plastic shell |
| N/G Weight(KG): |
33 / 45 |
Testing result:

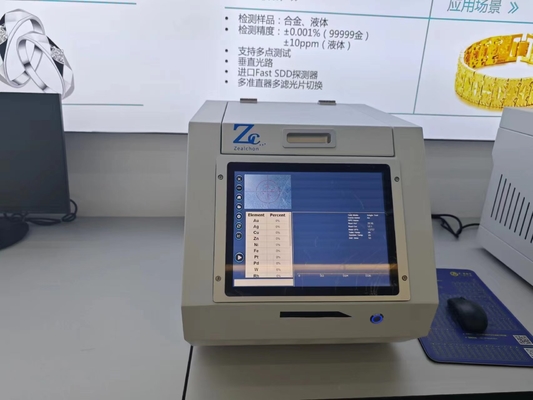

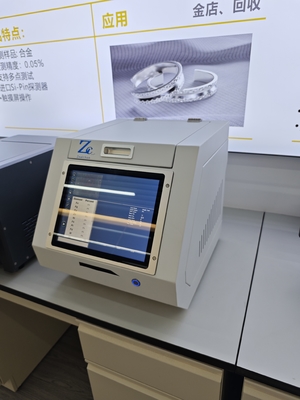

Pictures in details:
Certificate:
Service We Can Provide
Warranty 2year of replacement and return.
Providing factory visit and study, technical training.
24-hour technical support by e-mail or phone.
Providing laboratory construction program design guidelines.
Providing product design and OEM service.
