Name: DYLC light model CPT In Situ Site Investigation machine Crawler Type Cpt Vehicle Cone Penetration test Truck
Brand: Xian Zealchon Electronic Technology Co., Ltd.
SKU: DYLC
Price: 25000 USD
Availability: InStock

Home Products soil testing machine

DYLC light model CPT In Situ Site Investigation machine Crawler Type Cpt Vehicle Cone Penetration test Truck

Product Details:

Place of Origin:	China
Brand Name:	zelachon
Certification:	ISO
Model Number:	DYLC

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$25000 per set
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 set/month

Contact Now

Detailed Product Description

Rated Power - Speed:	16.2KW-2200r / Min	Stroke:	550mm Or 1100mm
Anchor Diameter (mm)::	300 ~ 400	Hydraulic Oil Tank Capacity (L):	140

Product Description

Specification

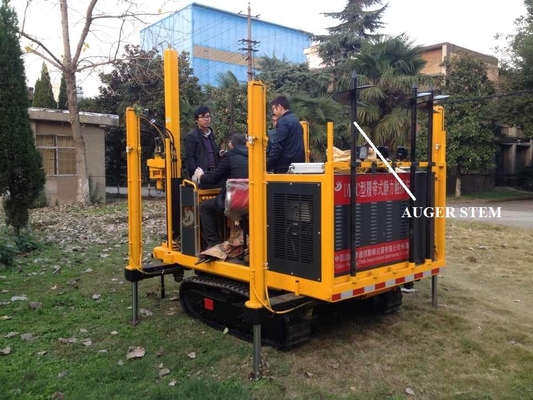

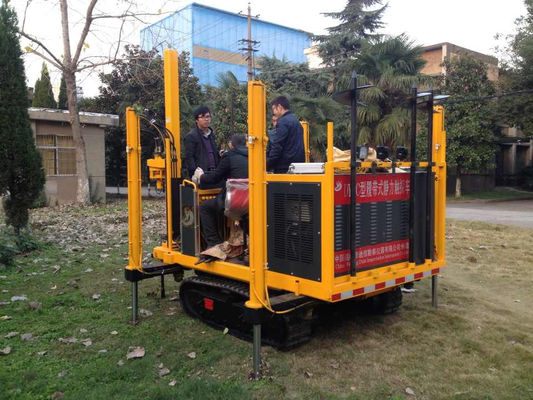

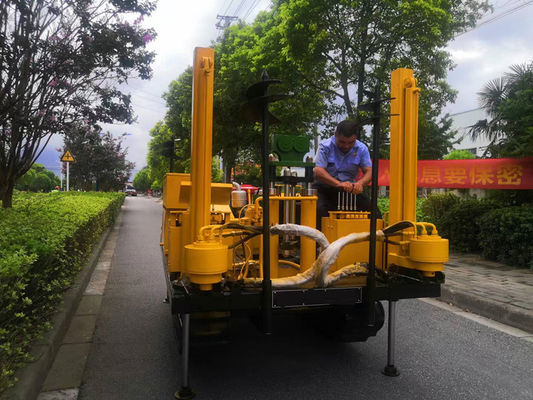

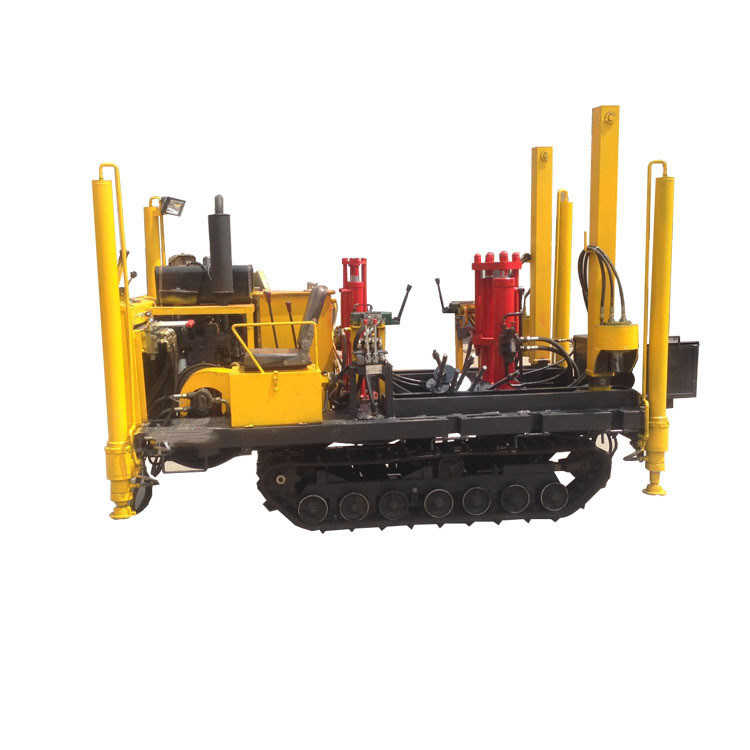

DYLC crawler type soil CPT truck static cone penetrometer

Features:

Adopts full hydraulic pressure excavator crawler chassis supporting and walk, but on the beach, the beach, sand, paddy field, such as bad environment to carry out static job, icy roads can still walk.
The advanced hydraulic technology, use of combination of fragmentation multiple directional control valves, compact structure, small volume, convenient installation, small pressure loss, good overflow valve overload characteristics.
The static test car can multi-usage, not only is ideal equipment, using the static configuration, makes pore pressure static
attachments may extend (CPTU), since the drill type pressure (PMT), vane shear (VCT), pressure into the type of wave velocity (WVT) and so on in situ test.
The biggest advantage: fuel efficiency, save manpower, high performance, high efficiency

Power for the vehicle all systems with only a small power engine and a single gear oil pump for, greatly reduce the fuel
consumption and maintenance cost.
Operators can boot up while flashboard, safe and save manpower, at least 2 people can normal operation, so greatly improve the work efficiency.

The main technical parameters:

Loading and unloading style: loading and unloading
Dimension: 3200 * 1700 * 1700 mm (length x width x height)
Engine power: 21 ~ 32 kw speed: 2000 ~ 2600 (r/min)
Walking speed: 1 ~ 4 (km/h) walking slope: 25 degrees or less
specifications: rubber tracks 300 * 52.5 * 74 (upset)
The hydraulic oil tank capacity (L) : 150 fuel tank capacity: 20
Work allows temperature: the highest temperature: 45 ° c minimum ambient temperature: - 25 c
anchor diameter (mm) : 100 ~ 400
Sheath material specifications (mm): 32 ~ Φ Φ 42 (optional)
Static agents rated penetration force: 200 KN
Static test the pull force: 230 KN

item	value
Warranty	1 year
Certification	ISO
Customized support	OEM
Place of Origin	China
	Shaanxi
Brand Name	zealchon
Model Number	DYLC
Power	Electronic
System oil pressure	14Mpa
Capacity of oil tank	100L
Penetration type	fixture blocks type press and pull out
Working temperature	-10-40°c
Transport	Four wheel manual drive
Product name	crawler type cpt vehicle
Application	Soil
Standard	BS.EN.ASTM
