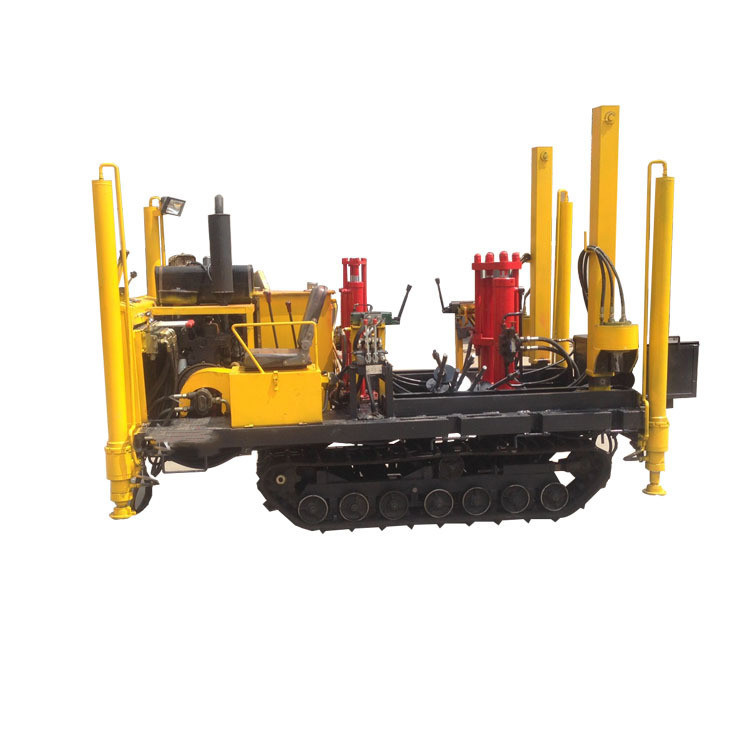

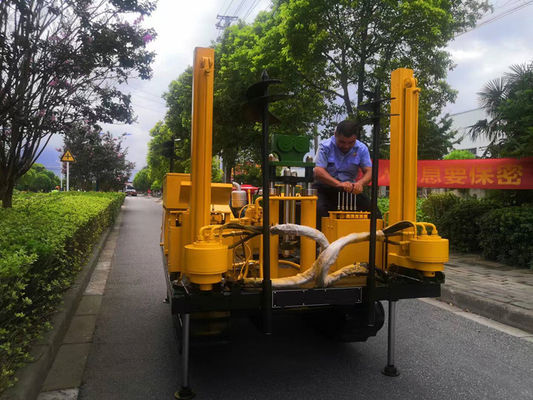

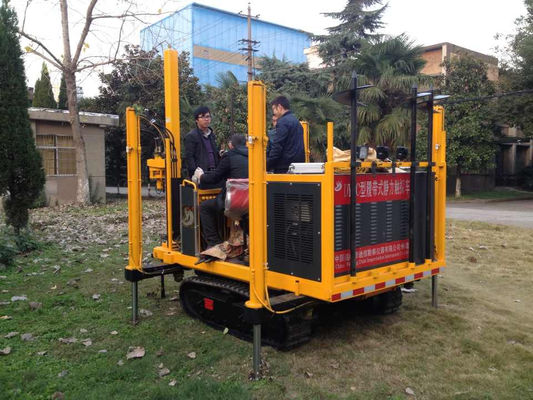

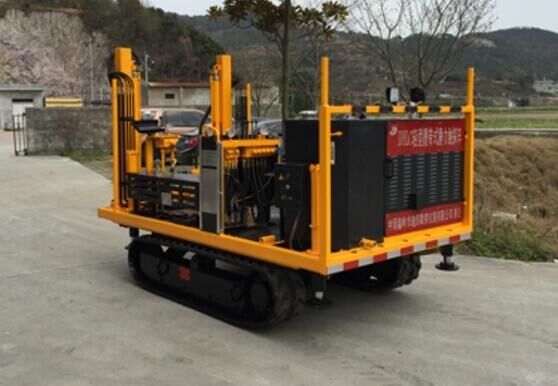

DYLC light model In Situ Site Investigation machine
The main technical parameters:
Chassis: Engineering hydraulic track chassis
Crawler Specifications: Engineering rubber track or steel track
Engine: single-cylinder 1115 diesel engine horizontal four-stroke water-cooled
Rated power - Speed: 16.2KW-2200r / min

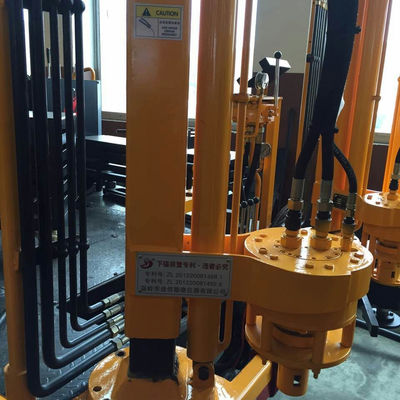

CPT hydraulic cylinder device: Rated penetration force 100 ~ 200KN rated pulling force from 130 ~ 230KN
Stroke 550mm or 1100mm can quickly rise directly under the casing

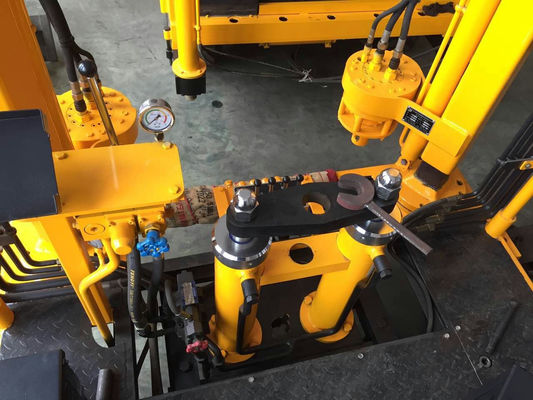

Card probe form: mechanical probe automatic rod holder or pad
Adjustable horizontal form: 4 hydraulic outrigger
Under the anchor form: dual-force static exploration vehicle anchorage device
The largest size: 3100 × 1700 × 2200 (L × W × H) mm, the size can be customized
Weight: 3300 kg
Hydraulic oil tank capacity (L): 140
Walking speed: 1 ~ 4 (km / h) Walking gradient: ≤ 30 degrees
Maximum working environment Allowable temperature: 45C ° Minimum ambient temperature: -25 ° C
Ground anchor form: single or multi - leaf anchor
Anchor diameter (mm): 300 ~ 400
Measuring instruments: static data acquisition automatic matching instrument or Europe and the United States brand
(Mm): the overall high-strength jointless probe rod Φ32 ~ Φ42 (optional) or matching European and American brands
Service:
1. Warranty 1 year of replacement and return.
2, Providing factory visit and study, technical training
3, 24-hour technical support by e-mail or phone
4, Providing laboratory construction program design guidelines
5, Providing product design and OEM service
