Geological survey euipment CPT static cone penetrometer for crawler type 200kn for 50m depth

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO
Model Number:	DYLC

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$28000
Packaging Details:	wooden box
Delivery Time:	within 7days
Payment Terms:	T/T, L/C, Western Union, T/T, MoneyGram
Supply Ability:	100 sets for month
Minimum Order Quantity:	1 set

Contact Now

Detailed Product Description

Static Agents Rated Penetration Force:

200 KN

Walking Speed:

1 ~ 4 (km/h)

Walking Slope:

25 Degrees Or Less

Caterpillar Specifications:

300 * 52.5 * 74 (upset)

Highlight:

CPT static cone penetrometer

Static Cone Penetration Machine

CPT truck

Product Description

Specification

Static cone penetrometer CPT anchoring machine for test QC, FS,U data for Bearing capacity of foundation

Specification:

1.full set include running gear,anchorage syste,penetration system and testing system
2.transport:four wheel manual drive
3.drive type:rear drive
4.turing radius:no higher than 4m
5.power force:electrical starting diesel engine
6.power:no lower than 22Hp,rotate:2200-2600RPM
7.Anchorage type:automatic rack type anchorage
8.penetration speed:0.8-1.2m/min;rated penetration power:200KN
9.pull out speed:2.5m/min;pull out power:220KN
10.working medium:68#hydraulic oil
11.system oil pressure:14Mpa
12.capacity f oil tank:100L
13.penetration type:fixture blocks type press and pull out
14.running speed:25-40Km/h
15.working temperature:-10-40 °C

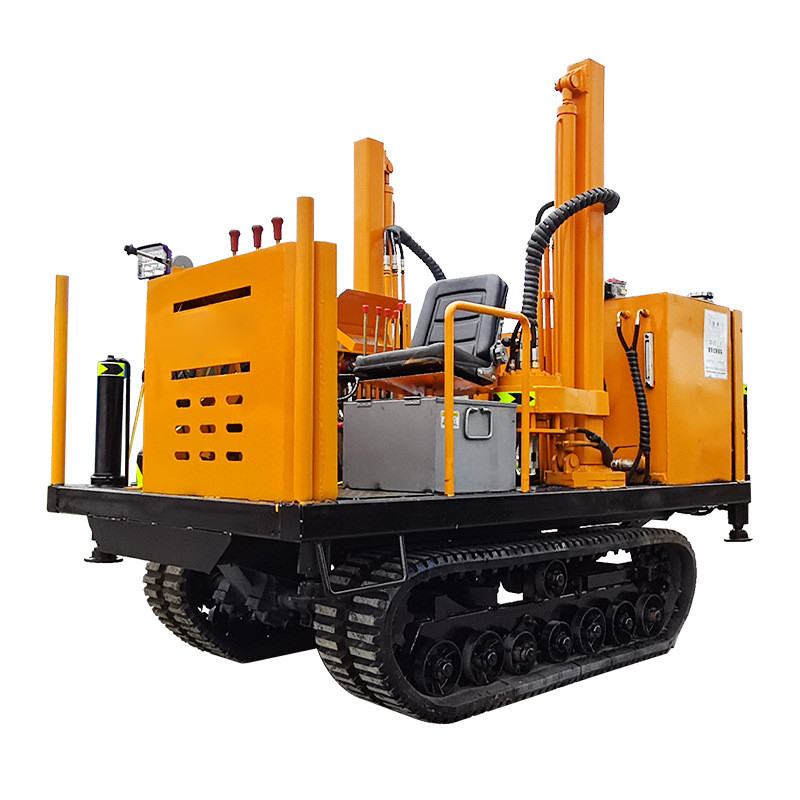

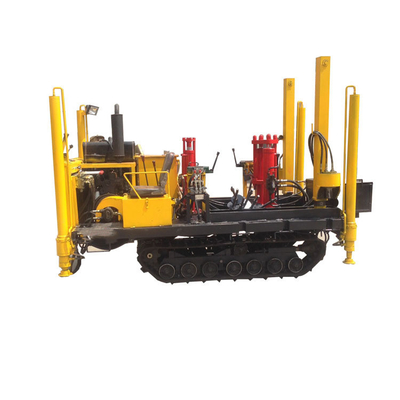

CPT vehicle

CPT Vehicle

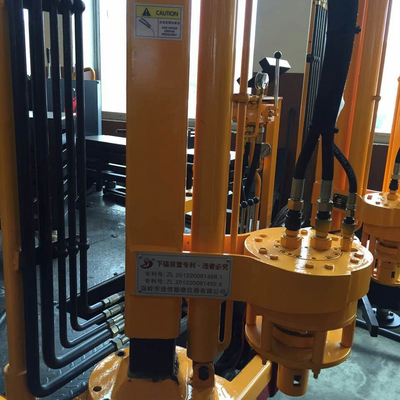

Hydraulic Transmission System

This machine uses hydraulic transmission system to penetration, anchor, leveling and support of the body, and so on.
The hydraulic system's oil is supplied by a large flow and high-pressure gear pump, used advanced sub-multi-chip
combination valve that is installed in the middle of the console body, each piece a hydraulic valve controls one
circuit. On the right of multi-valve, the relief value is installed to control the oil pressure.

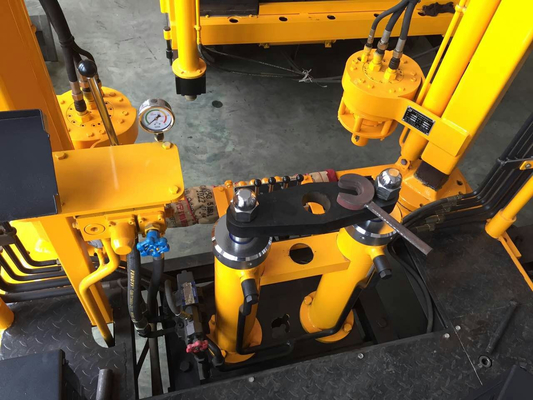

The operating panel has two layers, the upper is the main control circuit, the lower is props control circuit.
The left control rod is used to control penetration systems, the middle is to control the anchor system, the right is to
control the hydraulic props. The lower multiple of four props is to control oil cylinder, one-way throttle valve is installed
to control the lifting speed of hydraulic props.
Hydraulic oil tank is installed in the middle right of body underframe. Its standard capacity is 85 L, liquid temperature
meter is installed on the rear surface, indicating oil quality and temperature. One oil filter is installed on the inlet port to
prevent debris entering into the hydraulic system .

item	value
Warranty	1 year
Certification	ISO
Customized support	OEM
Place of Origin	China
	Shaanxi
Brand Name	zealchon
Model Number	2Y2E
Power	Electronic
power(diesel engine)	13.2KW
Drilling depth	130
Max drilling diameter	480
Driving pipe/drill pipe	53x59x4200 /50
Drill bits	75- 220
Product name	static cone penetrometer
Application	soil

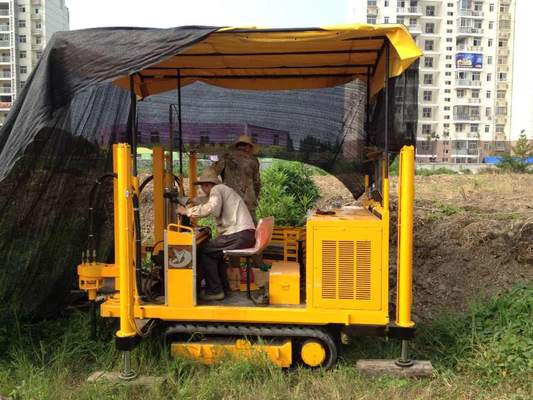

Testing results
