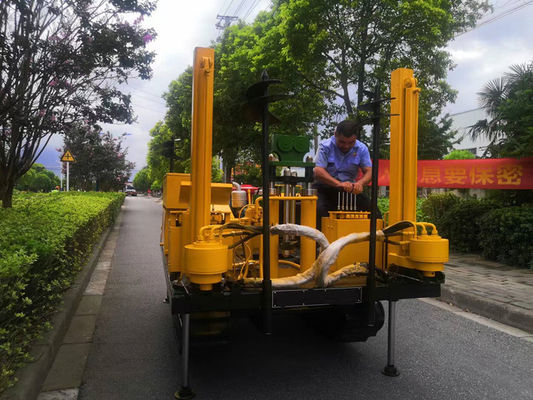

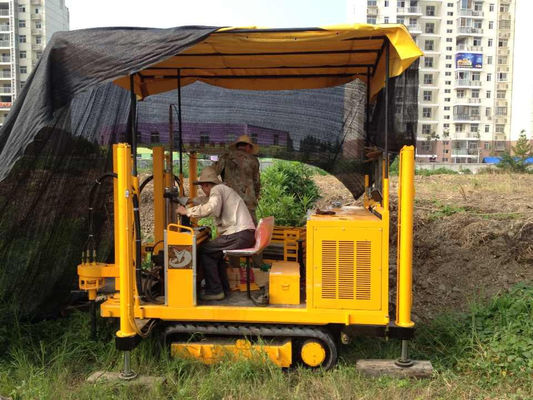

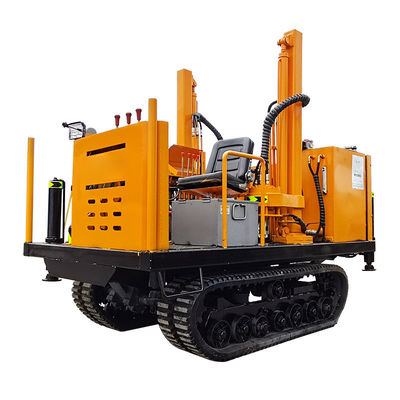

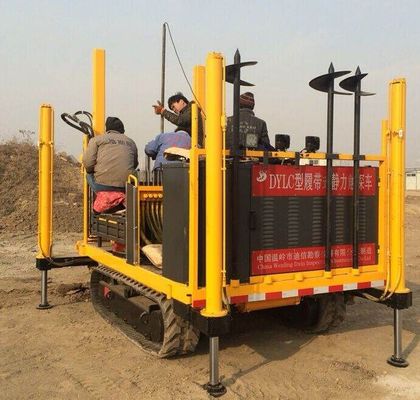

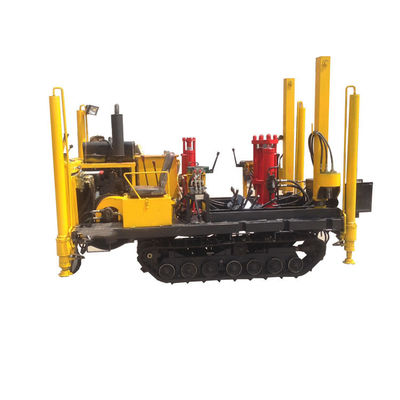

DYLC 2016 New model Hydraulic roller static cone penetrometers CPT truck

DYLC 2016 New model Hydraulic roller static cone penetrometers CPT truck

DYLC 2016 New model Hydraulic roller static cone penetrometers CPT truck

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO
Model Number: DYLC

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: $20000
Packaging Details: Wooden box
Delivery Time: WITHIN 7 DAYS
Payment Terms: T/T
Supply Ability: 100 PER SET WITHIN ONE MONTH
Contact Now
Detailed Product Description
Power: Hydraulic Usage: CPT Truck

Product Description



 The main technical parameters:
Crawler unit: The imported hydraulic motor from US
Handling form: Springboard Loader
Anchor form: Self-anchor (double force CPT car anchor means)
CPT penetration means: single plate (rated penetration force 100 ~ 200KN)
Dimensions: 3100 × 1700 × 2200 (L × W × H) mm
Cylinder diesel engine power: 16.2KW Speed: 1800 ~ 2400 (r / min)
Walking speed: 1 ~ 4 (km / h) walking slope: ≤30 degrees
Track Specifications: engineering rubber track 300 × 52.5 × 86
Hydraulic tank capacity (L): 170 Fuel tank capacity (L): 20
Working allowable temperature: Maximum ambient temperature: 45C ° minimum
ambient temperature: -25C to anchor forms: single leaf anchor anchor diameter (mm):
50 ~ 350
Probe size (mm): monolithic jointless probe Φ28 ~ Φ42 (optional)





Specification of drilling rig





Model

Items

Unit

Specification

1

structure

/

Rotary

2

power(diesel engine)

kW

13.2

3

Working dimension

mm

3250x1400x7000

4

weight

kg

2300

5

Drilling depth

m

130

6

Max drilling diameter

mm

Ø480

7

Driving pipe/drill pipe

mm

53x59x4200 /Ø50

8

Drill bits

mm

Ø75- Ø220

9

rotary speed

r/min

142;285;570

10

Hoisting machine

Diameter of roll

mm

Ø140

Single ling lifting speed

m/min

0.41;0.82;1.64

Max.single line hoisting capactiry

t

0.96

coiling length

m

27

Steel wire rope

mm

Ø9.3

11

Twoer



Rate load

t

3

Effective height

m

6.5

Model

lift and telescopic hydraulic tower

12

Water fault

Max.lifting capacity

t

4

Diameter of rubber duct

mm

Ø38

13

Mud pump

model

/

BW95A

Flow

L/min

95

pressure

m

1.5

Reciprocating frequency

Times/min

93





 Features:


This CPT truck is used hydraulic excavators and crawler chassis bracing, it can
walk in the beach, flood, sand, paddy and other harsh environment to carry out CPT
job, icy roads can still walk.
It has applied the advanced hydraulic technology, using a combination of sub-chip
multi-valve, compact structure, small size, easy installation, low pressure loss,
overload characteristics of a good relief.
The CPT car can a machine is not only ideal for static cone penetration test, configure
attachment may extend for CPTU (CPTU), since drilling pressuremeter (PMT), flat
dilatometer (DMT), Vane (VCT), pressure-velocity (WVT) and other in-situ test
trials.
The biggest advantage: fuel-efficient, saving manpower, high performance, high
efficiency

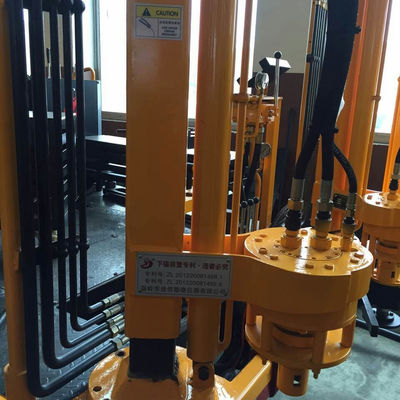

Under the country's first fully hydraulic rotary anchoring device (patent number:
201220081488.1 and patent number: 201220081492.8 configuration core barrel and
drill Opening hardened concrete pavement etc.) and self-loading and unloading trucks
devices (patent number: 201220382939.5), efficient and durable structure Compact,
convenient and quick.
It only needs small power diesel engines for the whole vehicle power system, on a
large extent, it reduced the fuel consumption and maintenance costs.
The operator can boot side edge flapper, safe and save manpower, at least two
individuals can be a normal operation, it can greatly improve the work efficiency.
