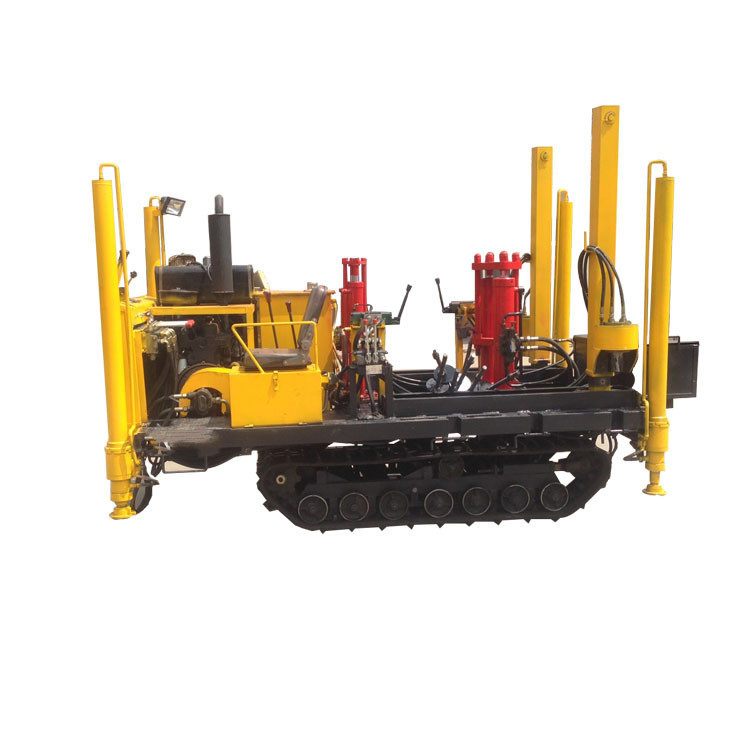

Light model Hydraulic Static Cone Penetrometer CPT Vehicle

Light model Hydraulic Static Cone Penetrometer CPT Vehicle

Light model Hydraulic Static Cone Penetrometer CPT Vehicle

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO
Model Number: DYLC

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: $20000
Packaging Details: Wooden box
Delivery Time: WITHIN 7 DAYS
Payment Terms: T/T
Supply Ability: 100 PER SET WITHIN ONE MONTH
Contact Now
Detailed Product Description
Power: Electronic Usage: CPT Vehicle

Quick Details

Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
zealchon
Model Number:
DYLB
Power:
Electronic
Usage:
Hydraulic Static Cone Penetrometer
System oil pressure:
14Mpa
Capacity of oil tank:
100L
Penetration type:
fixture blocks type press and pull out
Working temperature:
-10-40°c
.Transport:
Four wheel manual drive

Packaging & Delivery

Packaging Details:wooden box



Product Description


Specification:

1.full set include running gear,anchorage syste,penetration system and testing system
2.transport:four wheel manual drive
3.drive type:rear drive
4.turing radius:no higher than 4m
5.power force:electrical starting diesel engine
6.power:no lower than 22Hp,rotate:2200-2600RPM
7.Anchorage type:automatic rack type anchorage
8.penetration speed:0.8-1.2m/min;rated penetration power:200KN
9.pull out speed:2.5m/min;pull out power:220KN
10.working medium:68#hydraulic oil
11.system oil pressure:14Mpa
12.capacity f oil tank:100L
13.penetration type:fixture blocks type press and pull out
14.running speed:25-40Km/h
15.working temperature:-10-40 °C

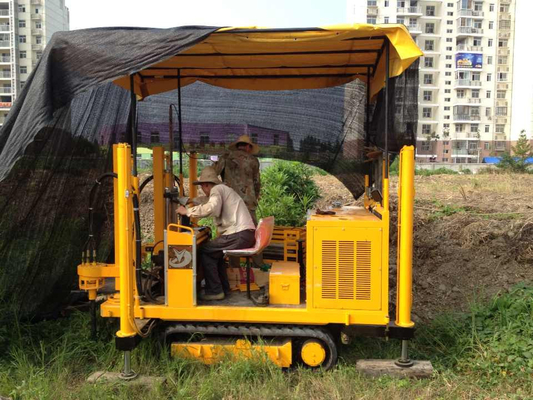

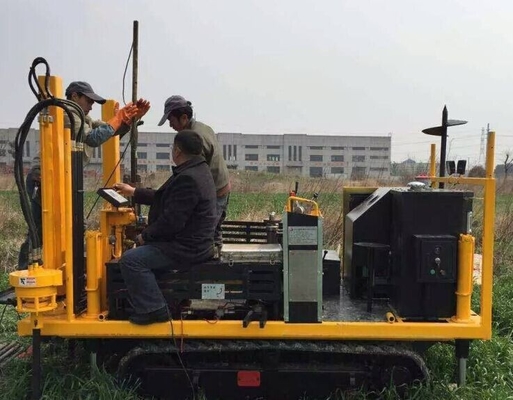

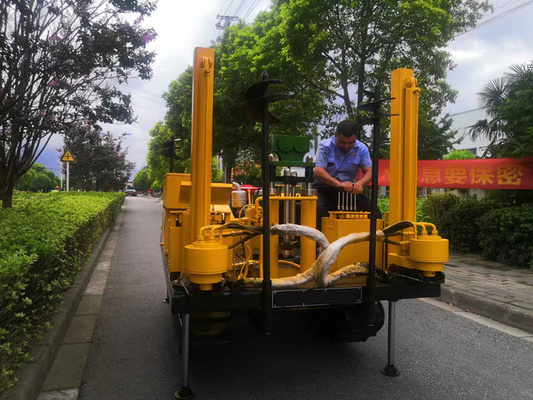

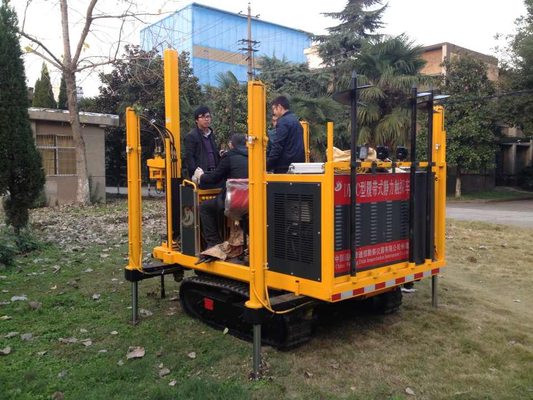

CPT vehicle

Features:
This CPT truck is used hydraulic excavators and crawler chassis bracing, it can
walk in the beach, flood, sand, paddy and other harsh environment to carry out CPT
job, icy roads can still walk.
It has applied the advanced hydraulic technology, using a combination of sub-chip
multi-valve, compact structure, small size, easy installation, low pressure loss,
overload characteristics of a good relief.
The CPT car can a machine is not only ideal for static cone penetration test, configure
attachment may extend for CPTU (CPTU), since drilling pressuremeter (PMT), flat
dilatometer (DMT), Vane (VCT), pressure-velocity (WVT) and other in-situ test
trials.
The biggest advantage: fuel-efficient, saving manpower, high performance, high
efficiency

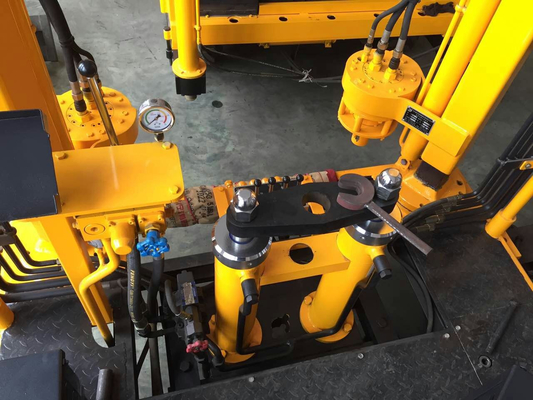

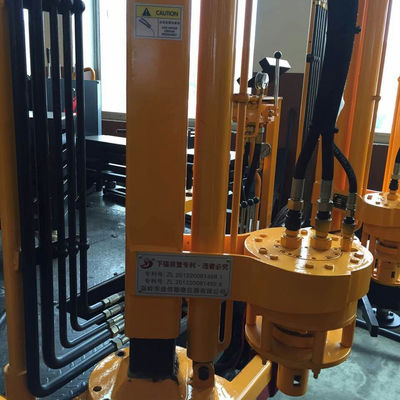

Under the country's first fully hydraulic rotary anchoring device (patent number:
201220081488.1 and patent number: 201220081492.8 configuration core barrel and
drill Opening hardened concrete pavement etc.) and self-loading and unloading trucks
devices (patent number: 201220382939.5), efficient and durable structure Compact,
convenient and quick.
It only needs small power diesel engines for the whole vehicle power system, on a
large extent, it reduced the fuel consumption and maintenance costs.
The operator can boot side edge flapper, safe and save manpower, at least two
individuals can be a normal operation, it can greatly improve the work efficiency.




Packaging & Shipping

 Light model Hydraulic Static Cone Penetrometer CPT Vehicle


 Light model Hydraulic Static Cone Penetrometer CPT VehicleLight model Hydraulic Static Cone Penetrometer CPT Vehicle
