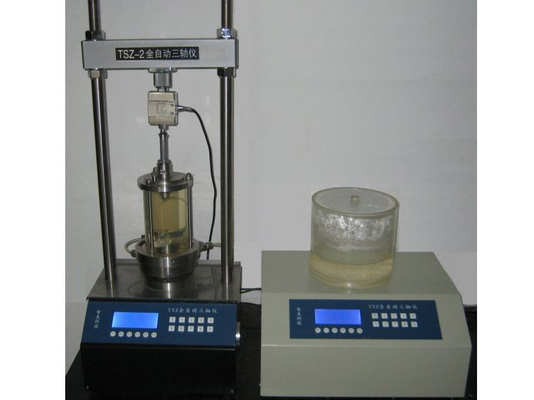

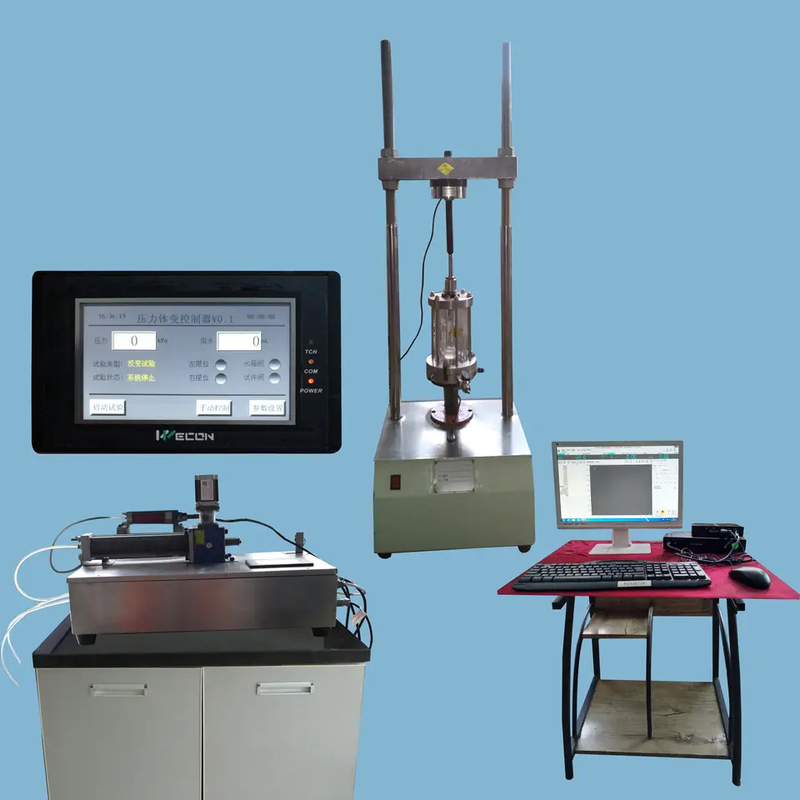

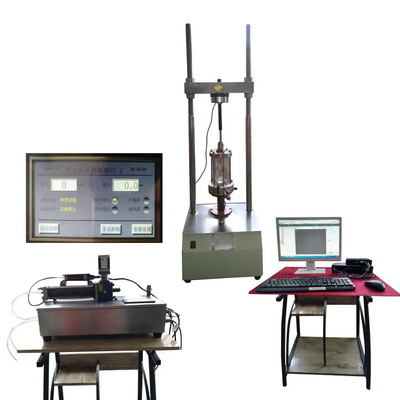

C001 Full automatic triaxial test apparatus

C001 Full automatic triaxial test apparatus

C001 Full automatic triaxial test apparatus

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: iso
Model Number: C001

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $6000
Packaging Details: Wooden box
Delivery Time: Within 7days
Payment Terms: T/T
Supply Ability: 100 sets
Contact Now
Detailed Product Description
Power: Electronic Usage: Triaxial Test Apparatus

Product Description



Product Detail


Triaxial testing equipment, Triaxial testing system. Triaxial testing machine, Geotechnical testing equipments, soil mechanics testing equipment

Noted: The ASTM and BS standards model can be tailor made.

Description

The full automatic series triaxial testing equipment including the DAQ system compared with the automatic model. it’s kind of advanced soil mechanics testing equipment for general geotechnical laboratory and teaching use.

Main Features

  • DAQ system available, free communication with computer and integration controller
  • Multifunctional, can do (UU, CU, CD shear test) with standard configurations, if equipped with necessary accessories, can do K0 consolidation test, static pressure coefficient test, multiple stress path triaxial test, stretch test, resilience modulus test, CBR test; if equipped with consolidation modules, it also can do grating loading / continuous loading consolidation test; if equipped with vibration module, it can perform full automatic vibration triaxial test.
  • Fully automatic, high efficiency and labor saving

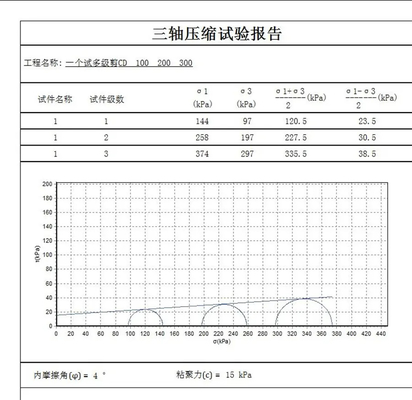

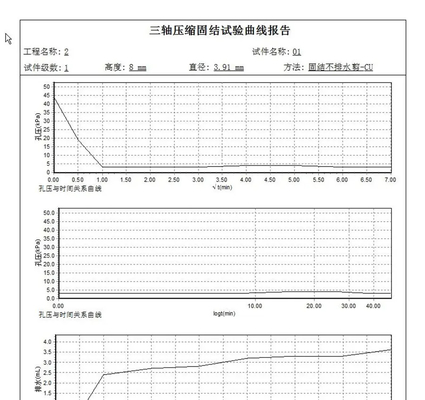

  • Test process and data management can be reached through computer


Technical Specifications


Specification

TSZ-1

TSZ-2

TSZ-6

Specimen size

Φ39.1 x 80mm

Φ39.1 x 80mm, Φ61.8mm x 125mm

Φ39.1 x 80mm, Φ61.8 x 125mm, Φ101 x 200mm

Axial Loading

Max. 10KN

Max. 30KN

Max. 60KN

Strain-controlled rate

0.0001mm/min-2.4mm/min
0.0001mm/min-4.8mm/min stepless regulation

0.0001mm/min-2.4mm/min
0.0001mm/min-4.8mm/min stepless regulation

0.0001mm/min-2.4mm/min, 0.0001mm/min-4.8mm/min stepless regulation

Working table travel

Max. 50mm

0-90mm

0-100mm

Confining pressure

0-2MPa

0-2MPa

0-2MPa

Back pressure

0-2MPa

0-2MPa

0-2MPa

Pore pressure

0-2MPa

0-2MPa

0-2MPa

Volume change

0-50ml/0.1ml

  0-50ml/0.1ml

0-100ml/0.2ml

Axial displacement

0-30mm

0-30mm

0-30mm

Power supply

AC 220V±10% 50Hz

AC 220V±10% 50Hz

AC 220V±10% 50Hz

Size

350 x 300 x 1100mm, 500 x 500 x 925mm

500 x 430 x 1200m
500 x 500 x 925mm

650 x 530 x 1200m
500 x 500 x 925mm

Net Weight

170Kg

175kg

240kg


























Standard configuration

Main frame
Triaxial cell
Sample compactor
Sample saturation device
Membrane cylinder
Sample cutter
Split mould


Service:



1. Warranty 1 year of replacement and return.


2, Providing factory visit and study, technical training


3, 24-hour technical support by e-mail or phone


4, Providing laboratory construction program design guidelines


5, Providing product design and OEM service
