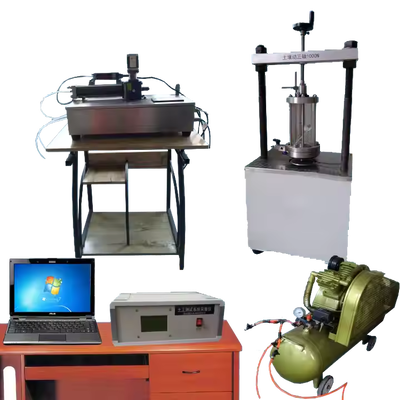

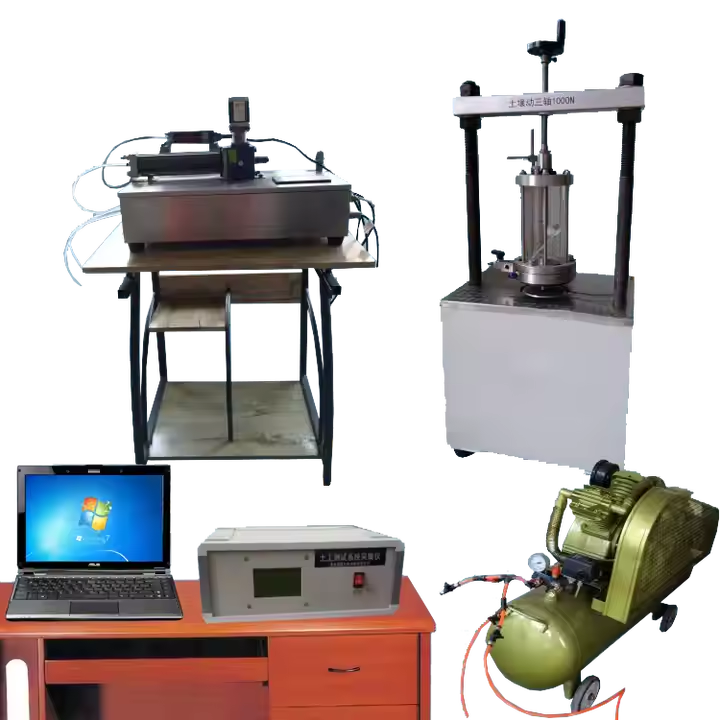

C115 Fully-Automated Resonant Column & Torsional Shear System

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	CE ISO
Model Number:	C115

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$90000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Powerful Force:	0-50Nm	. Pore Pressure:	0-1MPa
The Confining Pressure:	From 0 To 1MPa	Vibration Frequency:	0-10Hz
Sample Size:	φ 50 × 100mm

Product Description

Specification

The Soil Triaxial Resonance Column Tester is an advanced geotechnical instrument used to Measure the Dynamic Mechanical Properties of Soil in a small strain range (usually 10 ⁻⁶~10 ⁻ ³). It combines the advantages of traditional triaxial testing and resonance column technology, and can simultaneously study dynamic parameters such as shear modulus (G) and damping ratio (λ), as well as static deformation characteristics of soil. Here is its detailed description:

Major function

Dynamic characteristic testing: Determine the shear modulus (G) and damping ratio (λ) of soil under small strain using resonance frequency method.

Static characteristic testing: supports conventional triaxial tests (such as UU, CU, CD) to obtain parameters such as shear
strength (c, φ) and deformation modulus.

Wide coverage of strain range: seamless transition from small strain (elastic zone) to large strain (nonlinear failure zone).
-Multi field coupling (optional): can integrate temperature control and seepage systems to simulate complex environments (such as frozen soil and saturated soil).

loading system

Axial loading: Using servo motors or hydraulic systems to achieve static loading (stress/strain control) and dynamic excitation(sine wave, random wave)

Confining system: Apply constant/variable confining pressure (0-2 MPa, adjustable) through air pressure or hydraulic pressure to simulate the stress state of soil at different depths.

item	value
Warranty	1 year
Customized support	OEM
Place of Origin	China
	Shaanxi
Brand Name	zealchon
Model Number	C115
Power	Electronic
voltage	220 V.50HZ
Powerful force	0-50Nm
Pore pressure	0-1MPa
Sample Size	50×100mm
Product name	Rock Liquid Permeameter
Warranty	1 Year
Standard	BS.EN.ASTM
Power supply	220V 50Hz
