XRF 0.01% XRF Gold Purity Tester Machine High Precision Gold Karat Analyzer Jewelry Tester

XRF 0.01% XRF Gold Purity Tester Machine High Precision Gold Karat Analyzer Jewelry Tester

    • XRF 0.01% XRF Gold Purity Tester Machine High Precision Gold Karat Analyzer Jewelry Tester
    • XRF 0.01% XRF Gold Purity Tester Machine High Precision Gold Karat Analyzer Jewelry Tester
    • XRF 0.01% XRF Gold Purity Tester Machine High Precision Gold Karat Analyzer Jewelry Tester
    • XRF 0.01% XRF Gold Purity Tester Machine High Precision Gold Karat Analyzer Jewelry Tester
    • XRF 0.01% XRF Gold Purity Tester Machine High Precision Gold Karat Analyzer Jewelry Tester
    • XRF 0.01% XRF Gold Purity Tester Machine High Precision Gold Karat Analyzer Jewelry Tester
    • XRF 0.01% XRF Gold Purity Tester Machine High Precision Gold Karat Analyzer Jewelry Tester
  • XRF 0.01% XRF Gold Purity Tester Machine High Precision Gold Karat Analyzer Jewelry Tester

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO CE
    Model Number: EXF8200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $6200
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Working Principle: Energy Dispersive X-ray Fluorescence Size(mm): 670*400*330
    Detection Limit: 100ppm Best Substance Effect Detector:: Gas Proportional Detector
    Testable Elements: Gold, Silver, Copper, Platinum, Palladium, Cadmium, Etc

    Product Description

    XRF 0.01% XRF Gold Purity Tester Machine High Precision Gold Karat Analyzer Jewelry Tester



    Description:



    EXF 8200 is integrated an industrial computer with industrial motherboard & multi-point hand touch, providing best operation experience.

    It is designed exactly to security standards with active radiation protection, high voltage protection and X-ray tube overheating protection. Warm-up and anti interference procedure is controlled by the program, to reduce the interference by the reflected X-ray and the spectrums, to add the accuracy and stability.

    Optional colors for different elements will help to distinguish the interested elements clearly and conveniently. When the testing is over, the testing report will be shown timely.



    Schematic Diagram



    XRF 0.01% XRF Gold Purity Tester Machine High Precision Gold Karat Analyzer Jewelry Tester



    Applications:



    Fast, precise and non-destructive metal testing for jewellery retailers, jewellery manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions.

    XRF 0.01% XRF Gold Purity Tester Machine High Precision Gold Karat Analyzer Jewelry Tester



    Specifications:



    Working Principle: Energy Dispersive X-ray Fluorescence
    Size(mm): 670*400*330
    Detection limit: 100ppm Best substance effect
    Precision: ±10ppm~0.2%
    Expanded Uncertainty: 0.36%
    Operating Environment:

    Temperature 0-28

    Humidity 70%

    High Voltage: 0~50KV/0~1MA
    Detector: Gas Proportional Detector
    Testable Elements: Gold, silver, copper, platinum, palladium, cadmium, etc
    Hare Ware: Integrated PC with touch screen, Wireless LAN, USB interfaces, Video camera
    Main Structure: High-strength metal frame and industry plastic shell
    N/G Weight(KG): 33 / 45

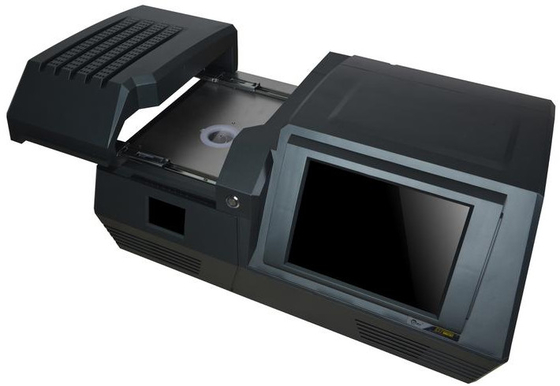

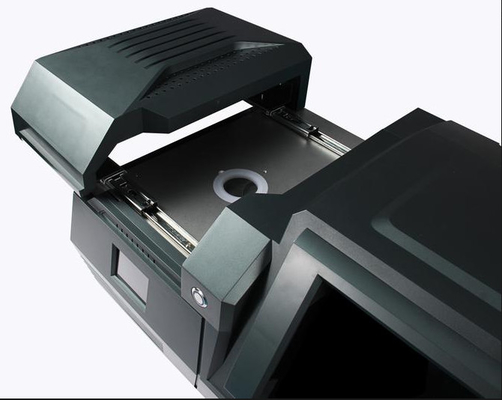

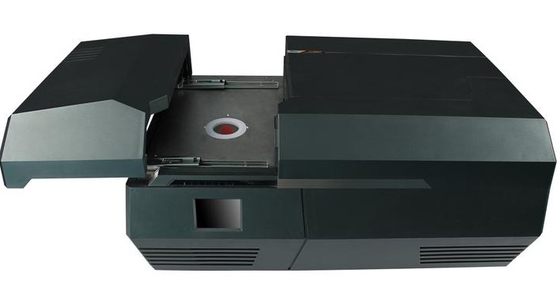

    Pictures in details:



    XRF 0.01% XRF Gold Purity Tester Machine High Precision Gold Karat Analyzer Jewelry Tester



    Use introduction





    XRF 0.01% XRF Gold Purity Tester Machine High Precision Gold Karat Analyzer Jewelry Tester

    XRF 0.01% XRF Gold Purity Tester Machine High Precision Gold Karat Analyzer Jewelry TesterXRF 0.01% XRF Gold Purity Tester Machine High Precision Gold Karat Analyzer Jewelry Tester













    certificate:

    XRF 0.01% XRF Gold Purity Tester Machine High Precision Gold Karat Analyzer Jewelry Tester




    Service We Can Provide



    Warranty 2year of replacement and return.

    Providing factory visit and study, technical training.

    24-hour technical support by e-mail or phone.

    Providing laboratory construction program design guidelines.

    Providing product design and OEM service.
