EXF8200 XRF karat gold assay equipment for jewelry shop and pawn shop.

EXF8200 XRF karat gold assay equipment for jewelry shop and pawn shop.

    • EXF8200 XRF karat gold assay equipment for jewelry shop and pawn shop.
    • EXF8200 XRF karat gold assay equipment for jewelry shop and pawn shop.
    • EXF8200 XRF karat gold assay equipment for jewelry shop and pawn shop.
    • EXF8200 XRF karat gold assay equipment for jewelry shop and pawn shop.
    • EXF8200 XRF karat gold assay equipment for jewelry shop and pawn shop.
    • EXF8200 XRF karat gold assay equipment for jewelry shop and pawn shop.
  • EXF8200 XRF karat gold assay equipment for jewelry shop and pawn shop.

    Product Details:

    Place of Origin: china
    Brand Name: zealchon
    Certification: iso
    Model Number: exf8200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $5500
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Working Principle:: Energy Dispersive X-ray Fluorescence Size(mm):: 670*400*330
    Detection Limit:: 100ppm Best Substance Effect Detector:: Gas Proportional Detector
    Testable Elements:: Gold, Silver, Copper, Platinum, Palladium

    EXF8200 XRF karat gold assay equipment for jewelry shop and pawn shop.



    Description:



    EXF 8200 is integrated an industrial computer with industrial motherboard & multi-point hand touch, providing best operation experience.

    It is designed exactly to security standards with active radiation protection, high voltage protection and X-ray tube overheating protection. Warm-up and anti interference procedure is controlled by the program, to reduce the interference by the reflected X-ray and the spectrums, to add the accuracy and stability.

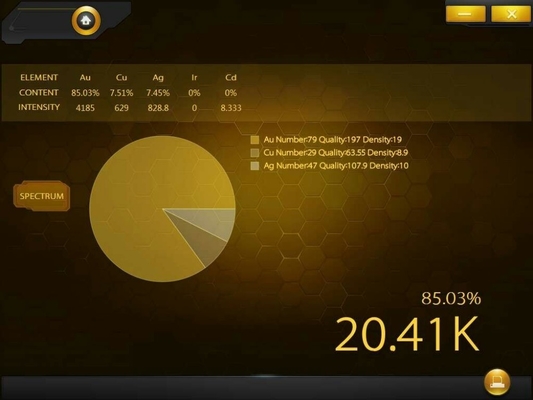

    Optional colors for different elements will help to distinguish the interested elements clearly and conveniently. When the testing is over, the testing report will be shown timely.



    Schematic Diagram





    Applications:



    Fast, precise and non-destructive metal testing for jewellery retailers, jewellery manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions.



    Specifications:



    Working Principle: Energy Dispersive X-ray Fluorescence
    Size(mm): 670*400*330
    Detection limit: 100ppm Best substance effect
    Precision: ±10ppm~0.2%
    Expanded Uncertainty: 0.36%
    Operating Environment:

    Temperature 0-28

    Humidity 70%

    High Voltage: 0~50KV/0~1MA
    Detector: Gas Proportional Detector
    Testable Elements: Gold, silver, copper, platinum, palladium, cadmium, etc
    Hare Ware: Integrated PC with touch screen, Wireless LAN, USB interfaces, Video camera
    Main Structure: High-strength metal frame and industry plastic shell
    N/G Weight(KG): 33 / 45

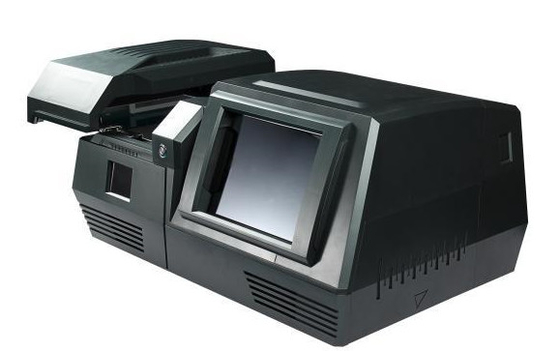

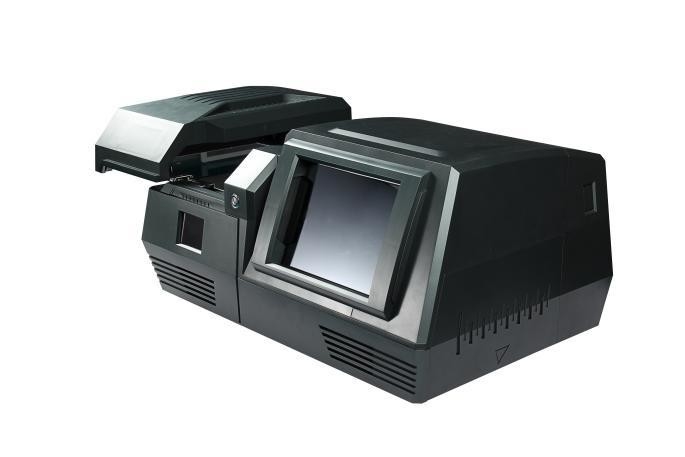

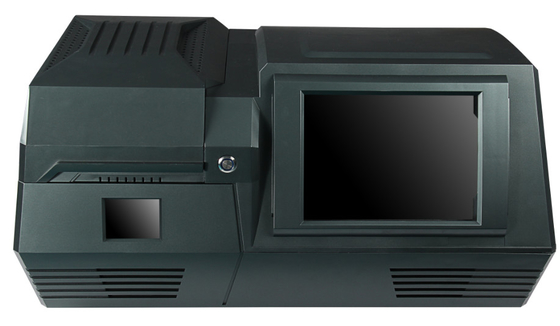

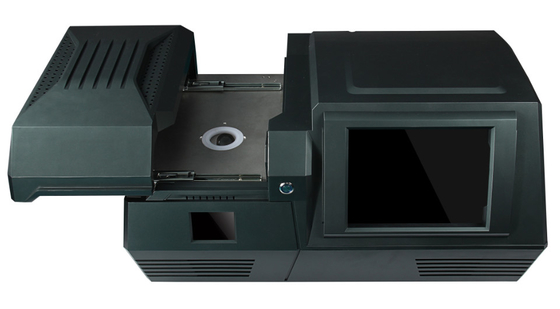

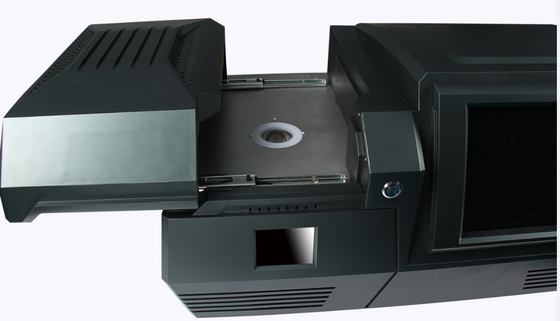

    Pictures in details:





    Use introduction

















    certificate:





    Service We Can Provide



    Warranty 2year of replacement and return.

    Providing factory visit and study, technical training.

    24-hour technical support by e-mail or phone.

    Providing laboratory construction program design guidelines.

    Providing product design and OEM service.
