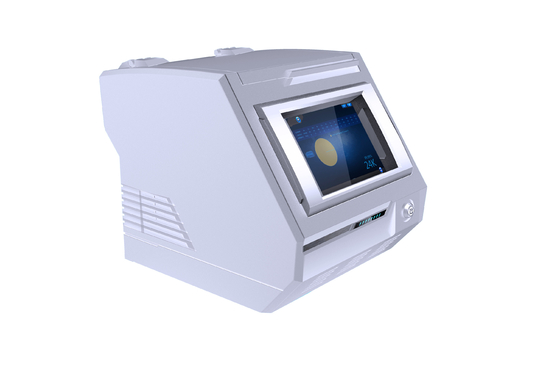

XF-A6
Portable Metals Analyzer
Quick Features:
· Italian designed Portable XRF Gold Analyzer
· Detects 20+ Elements Precisely close to Fire Assay
· Identifies Prohibited Elements (Powder) Iridium, Ruthenium, Osmium, etc.
· Lead(Pb) glass to guarantee 100% human safe
· One Key smart Test
Simple software and user interface makes it easy to operate
Mobility powered with High accuracy and performance brings our Latest XF-A6 Designed by Leading Italian Corporation to exceed Today's customer requirement. XF-A6 is packed with features, functions that you will crave for.
100% Safe design with Lead (Pb) glass in front and rear and highly protective housing, to ensure fully human safe performance. Special access switch for test function to quicken test process. Portable yet adequate chamber size with trapezium door design to increase test chamber area.
Applications:
Ø Hallmark Centre
Ø Testing and Assay Center
Ø Refinery and Exchange
Ø Jewellery Manufacturer
Ø Bullion
Ø Jewellery Showroom
Specifications:
| Working Principle: |
Energy Dispersive X-ray Fluorescence |
| Precision: |
±0.05% |
| Operating Environment: |
Temperature -11~46℃ Humidity ≤70% |
| Integrated X-Ray Generator |
50KV/1MA , Target; W |
| Detector: |
Si-Pin (Made in USA) |
| Resolution: |
145Kev±5 |
| Testable Elements: |
AU AG PT PD RH RU CU ZN NI CD In OS IR W (from AL to U, around 79 elements) |
| Inbuilt Computer |
Industrial Integrated PC |
| Inbuilt Touch Screen |
9.7” OLED |
| Cover material |
Aluminum alloy + Lead glass |
| Input Voltage |
100 – 240V |
| Rated Power |
160W |
| Instrument dimension(mm): |
312*480*310 |
| Testing chamber dimension (mm) |
300*240*110 |
| N/G Weight(KG): |
22 |
