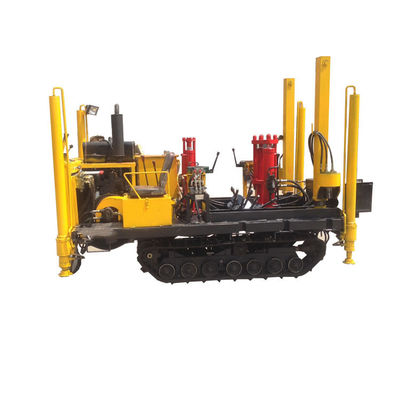

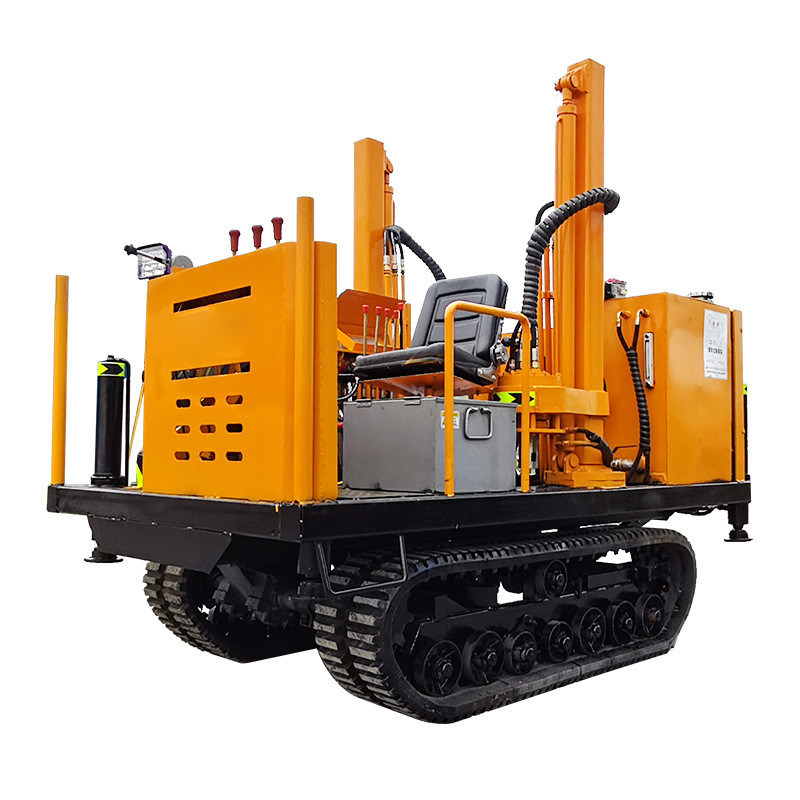

DYLC Wheel type CPT static cone penetrometer test truck

DYLC Wheel type CPT static cone penetrometer test truck

    • DYLC Wheel type CPT static cone penetrometer test truck
    • DYLC Wheel type CPT static cone penetrometer test truck
  • DYLC Wheel type CPT static cone penetrometer test truck

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO CE
    Model Number: dylc

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $20000
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Penetration Speed: 0.8-1.2m/min Rated Penetration Power: 200KN
    Pull Out Speed: 2.5m/min Pull Out Power: :220KN

    Product Description



    DYLC Wheel type CPTstatic cone penetrometer test truck



    Specification:



    1.full set include running gear,anchorage syste,penetration system and testing system

    2.transport:four wheel manual drive

    3.drive type:rear drive

    4.turing radius:no higher than 4m

    5.power force:electrical starting diesel engine

    6.power:no lower than 22Hp,rotate:2200-2600RPM

    7.Anchorage type:automatic rack type anchorage

    8.penetration speed:0.8-1.2m/min;rated penetration power:200KN

    9.pull out speed:2.5m/min;pull out power:220KN

    10.working medium:68#hydraulic oil

    11.system oil pressure:14Mpa

    12.capacity f oil tank:100L

    13.penetration type:fixture blocks type press and pull out

    14.running speed:25-40Km/h

    15.working temperature:-10-40 °C

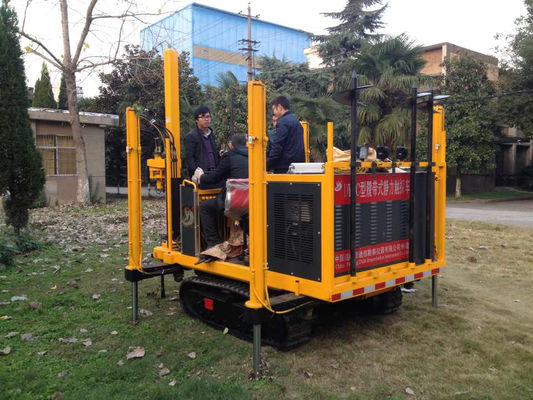

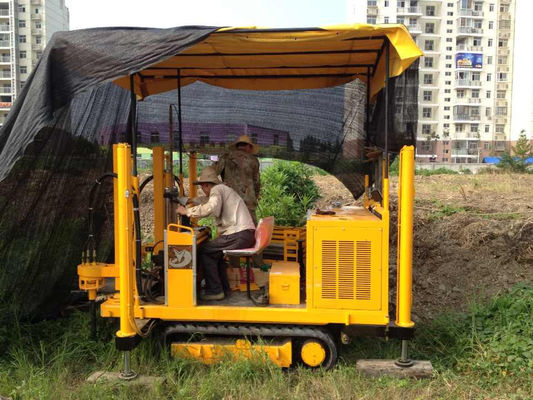

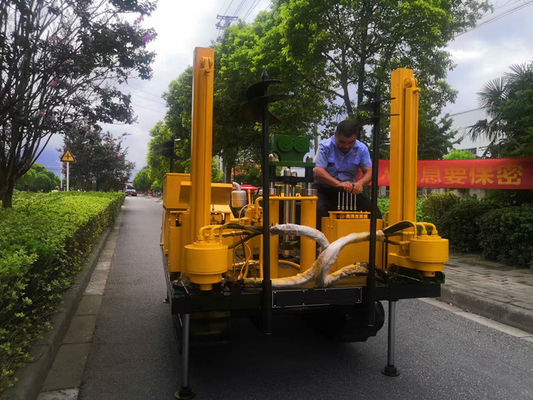

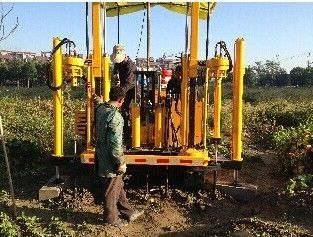

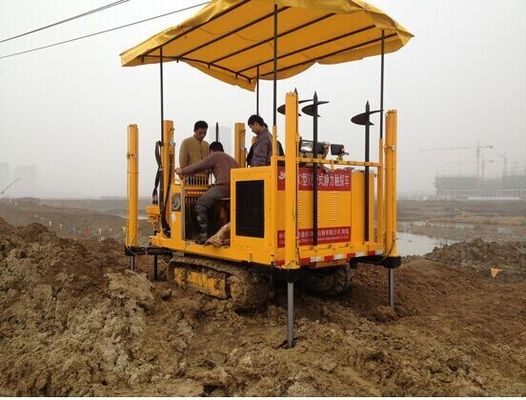

    CPT vehicle





    CPT Vehicle

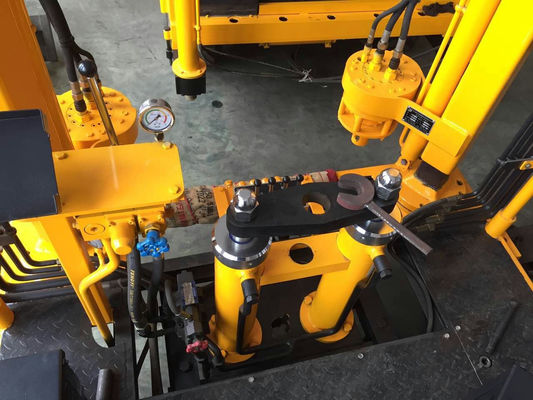

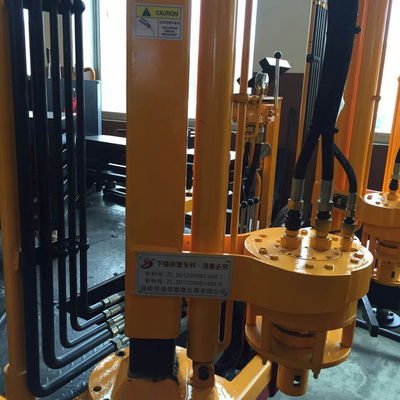

    Hydraulic Transmission System


    This machine uses hydraulic transmission system to penetration, anchor, leveling and support of the body, and so on.
    The hydraulic system's oil is supplied by a large flow and high-pressure gear pump, used advanced sub-multi-chip
    combination valve that is installed in the middle of the console body, each piece a hydraulic valve controls one
    circuit. On the right of multi-valve, the relief value is installed to control the oil pressure.
    The operating panel has two layers, the upper is the main control circuit, the lower is props control circuit.
    The left control rod is used to control penetration systems, the middle is to control the anchor system, the right is to
    control the hydraulic props. The lower multiple of four props is to control oil cylinder, one-way throttle valve is installed
    to control the lifting speed of hydraulic props.
    Hydraulic oil tank is installed in the middle right of body underframe. Its standard capacity is 85 L, liquid temperature
    meter is installed on the rear surface, indicating oil quality and temperature. One oil filter is installed on the inlet port to
    prevent debris entering into the hydraulic system .
