|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||wooden box|
|Delivery Time:||within 7days|
|Payment Terms:||L/C, Western Union, T/T|
|Supply Ability:||100 sets/month|
|.working Temperature:||-10-40 °C||Running Speed:||25-40Km/h|
|.capacity F Oil Tank:||:100L||System Oil Pressure:||14Mpa|
|Pull Out Power:||220KN|

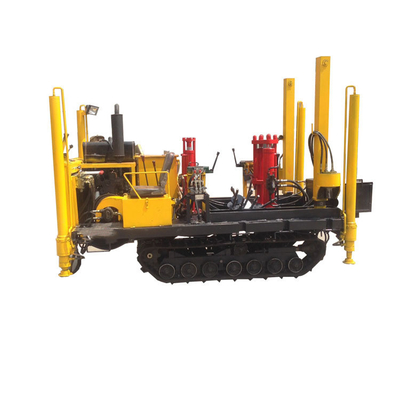

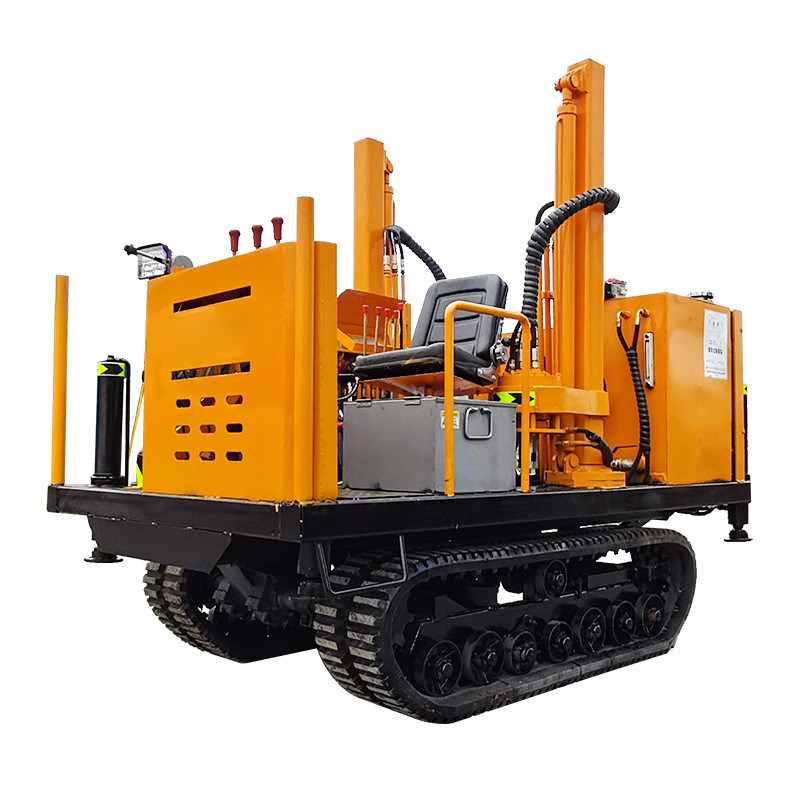

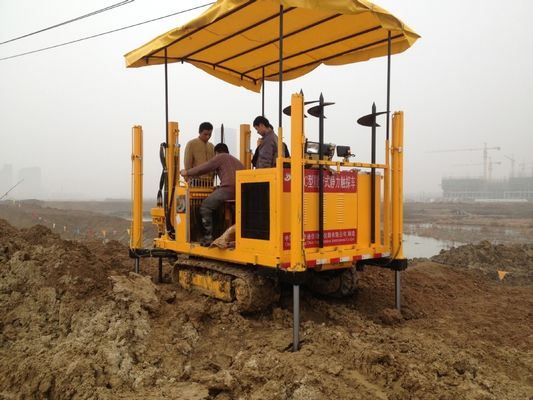

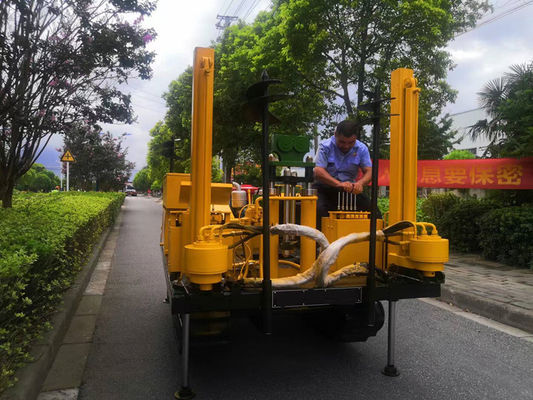

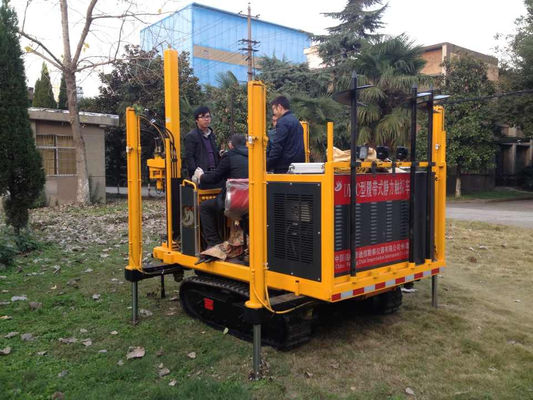

CPT truck rig for Hydraulic Static Cone Penetrometer
1.full set include running gear,anchorage syste,penetration system and testing system
2.transport:four wheel manual drive
3.drive type:rear drive
4.turing radius:no higher than 4m
5.power force:electrical starting diesel engine
6.power:no lower than 22Hp,rotate:2200-2600RPM
7.Anchorage type:automatic rack type anchorage
8.penetration speed:0.8-1.2m/min;rated penetration power:200KN
9.pull out speed:2.5m/min;pull out power:220KN
10.working medium:68#hydraulic oil
11.system oil pressure:14Mpa
12.capacity f oil tank:100L
13.penetration type:fixture blocks type press and pull out
15.working temperature:-10-40 °C

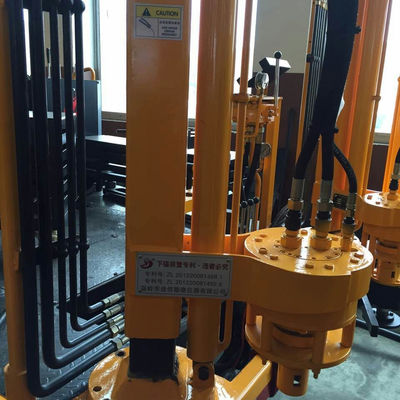

Hydraulic Transmission System
This machine uses hydraulic transmission system to penetration, anchor, leveling and support of the body, and so on.
The hydraulic system's oil is supplied by a large flow and high-pressure gear pump, used advanced sub-multi-chip
combination valve that is installed in the middle of the console body, each piece a hydraulic valve controls one
circuit. On the right of multi-valve, the relief value is installed to control the oil pressure.

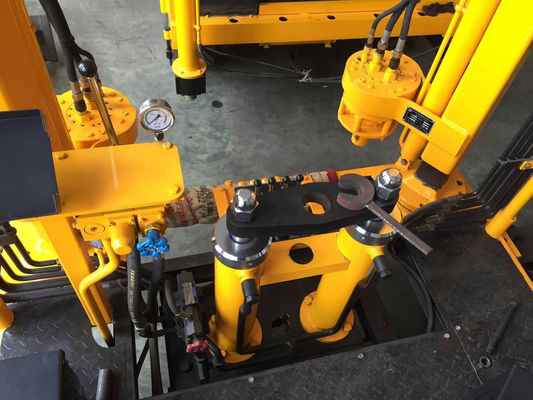

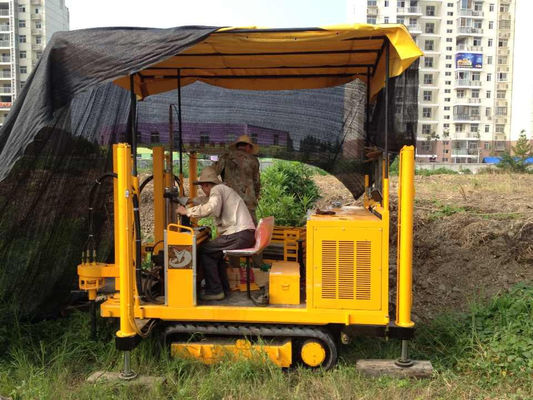

The operating panel has two layers, the upper is the main control circuit, the lower is props control circuit.
The left control rod is used to control penetration systems, the middle is to control the anchor system, the right is to
control the hydraulic props. The lower multiple of four props is to control oil cylinder, one-way throttle valve is installed
to control the lifting speed of hydraulic props.
Hydraulic oil tank is installed in the middle right of body underframe. Its standard capacity is 85 L, liquid temperature
meter is installed on the rear surface, indicating oil quality and temperature. One oil filter is installed on the inlet port to
prevent debris entering into the hydraulic system .
