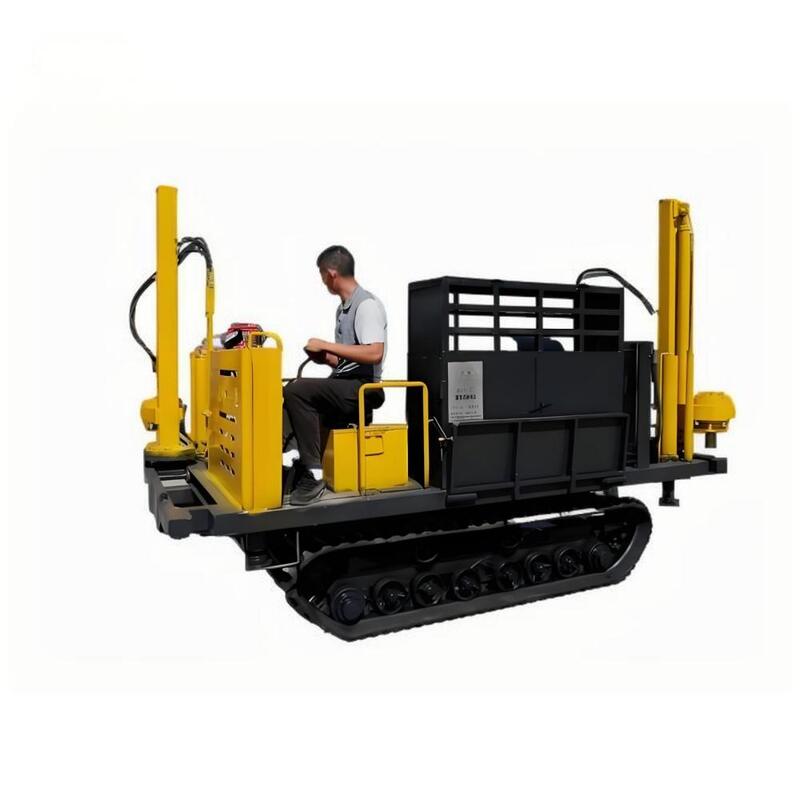

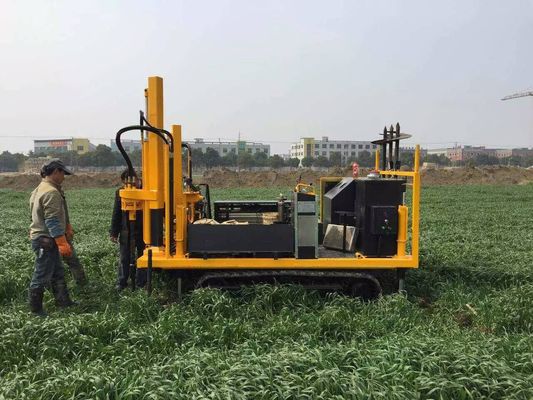

DYLC light model CPT soil investigation cone penetration testing 200KN Crawler-type Hydraulic CPT Static Cone Penetrometer Apparatus With Two Anchoring System

DYLC light model CPT soil investigation cone penetration testing 200KN Crawler-type Hydraulic CPT Static Cone Penetrometer Apparatus With Two Anchoring System

    • DYLC light model CPT soil investigation cone penetration testing 200KN Crawler-type Hydraulic CPT Static Cone Penetrometer Apparatus With Two Anchoring System
    • DYLC light model CPT soil investigation cone penetration testing 200KN Crawler-type Hydraulic CPT Static Cone Penetrometer Apparatus With Two Anchoring System
    • DYLC light model CPT soil investigation cone penetration testing 200KN Crawler-type Hydraulic CPT Static Cone Penetrometer Apparatus With Two Anchoring System
    • DYLC light model CPT soil investigation cone penetration testing 200KN Crawler-type Hydraulic CPT Static Cone Penetrometer Apparatus With Two Anchoring System
    • DYLC light model CPT soil investigation cone penetration testing 200KN Crawler-type Hydraulic CPT Static Cone Penetrometer Apparatus With Two Anchoring System
    • DYLC light model CPT soil investigation cone penetration testing 200KN Crawler-type Hydraulic CPT Static Cone Penetrometer Apparatus With Two Anchoring System
    • DYLC light model CPT soil investigation cone penetration testing 200KN Crawler-type Hydraulic CPT Static Cone Penetrometer Apparatus With Two Anchoring System
    • DYLC light model CPT soil investigation cone penetration testing 200KN Crawler-type Hydraulic CPT Static Cone Penetrometer Apparatus With Two Anchoring System
  • DYLC light model CPT soil investigation cone penetration testing 200KN Crawler-type Hydraulic CPT Static Cone Penetrometer Apparatus With Two Anchoring System

    Product Details:

    Place of Origin: China
    Brand Name: ZEALCHON
    Certification: ISO
    Model Number: DYLC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $20000
    Packaging Details: wooden box
    Delivery Time: within 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Rated Power - Speed: 16.2KW-2200r / Min 16.2KW-2200r / Min: 100 ~ 200KN
    The Largest Size: 3100 × 1700 × 2200 Hydraulic Oil Tank Capacity: 140
    Walking Speed: 1 ~ 4 (km / H)

    Product Description
    DYLC light model CPT soil investigation cone penetration testing 200KN Crawler-type Hydraulic CPT Static Cone Penetrometer Apparatus With Two Anchoring System
    DYLC light model CPT soil investigation cone penetration testing 200KN Crawler-type Hydraulic CPT Static Cone Penetrometer Apparatus With Two Anchoring System
    Specification
    The working principle of the crawler static exploration vehicle is the same as that of other hydraulic static exploration machines; it uses hydraulic transmission technology to automatically press the static exploration probe into the soil at a uniform speed, and uses the resistance of the probe to contact the soil to convert it into an electrical signal through resistance strain. The measuring instrument on the ground measures, records, and determines the relevant
    mechanical parameters of the soil for foundation design. It is suitable for working on soft soil, cohesive soil, old clay, loess, and sandy soil.

    The 2Y-20E hydraulic crawler static exploration vehicle adopts many advantages of similar products at home and abroad, with novel design, compact structure, small size and high power, and has the following characteristics:

    1. With track support and walking, static exploration operations can be carried out in harsh environments such as beaches, river beaches, sandy soils, paddy fields, etc., and the road can still be walked on if the road is icy.

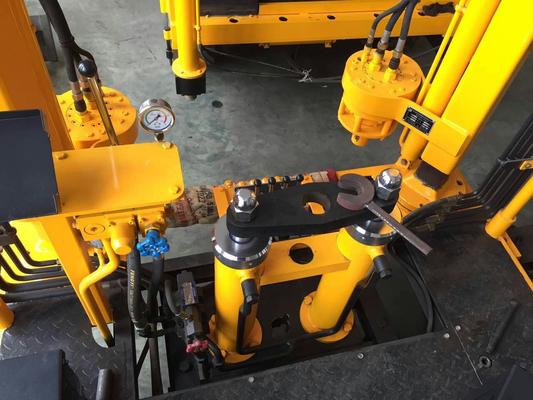

    2. Advanced hydraulic system, using split-type combined multi-way directional valve, compact structure, small size, convenient installation, low pressure loss, and good pressure overload characteristics of the overflow valve.

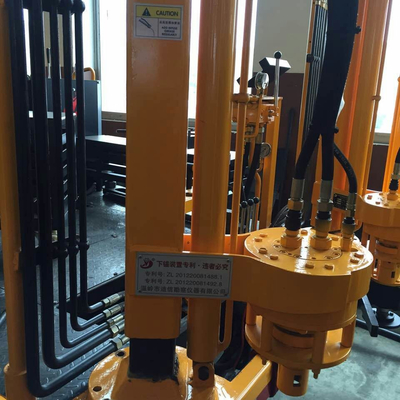

    3. The unique sliding hydraulic anchoring device is adopted. When the static penetration is working, the hydraulic anchoring device is gently slid to the outside of the vehicle, and the anchor is rotated by the high-power anchoring motor, and the device can be retracted after the work is completed. ,Convenient,


    4. This machine can be used for multiple purposes in one machine. It is not only an ideal equipment for static cone penetration testing, but also with accessories, which can be extended for pore pressure static detection (CPTU), self-drilling side pressure (PMT), flat shovel side expansion, Cross plate shear (VCT), press-in wave velocity (WVT) and other in-situ tests.
    item
    value
    Warranty
    1 year
    Customized support
    OEM
    Place of Origin
    China

    Shaanxi
    Brand Name
    zealchon
    Model Number
    DYLB
    Power
    Electronic
    System oil pressure
    14Mpa
    Capacity of oil tank
    100L
    Penetration type
    fixture blocks type press and pull out
    Working temperature
    -10-40°c
    .Transport
    Four wheel manual drive
    Product name
    Static Cone Penetrometer
    Application
    Soil test
    Power supply
    220V 50Hz
    Certification
    ISO
    Test report
    DYLC light model CPT soil investigation cone penetration testing 200KN Crawler-type Hydraulic CPT Static Cone Penetrometer Apparatus With Two Anchoring System
