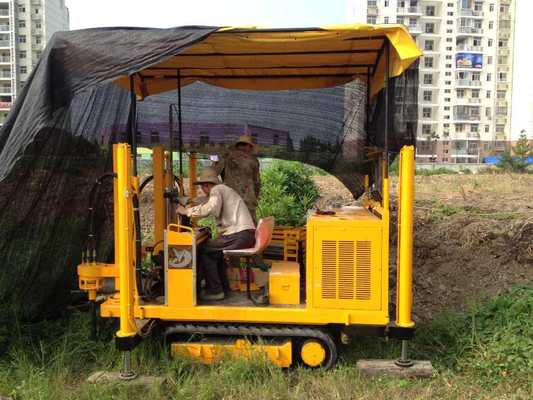

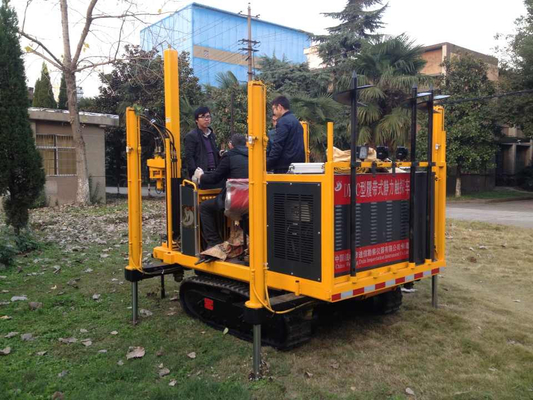

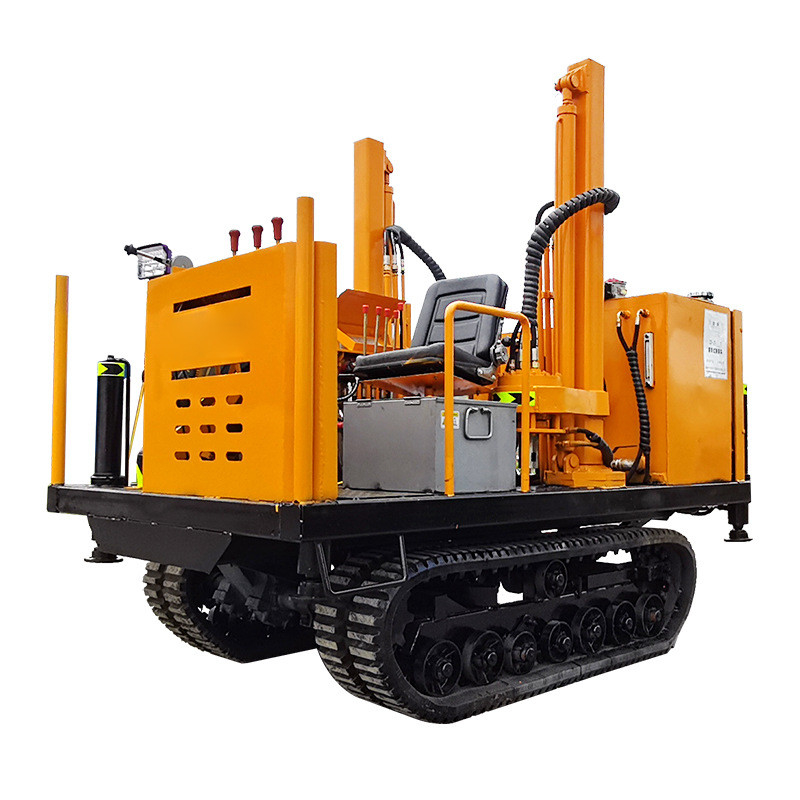

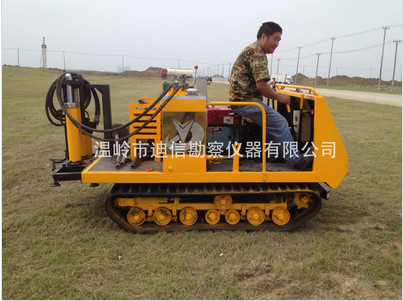

WYLB type mechanical crawler cpt car
Chassis: Mechanical farm tracked chassis
Caterpillar specification: rubber track
Engine: single cylinder 1115 diesel horizontal four stroke water cooled
Rated power speed: 16.2kw-2200r/min

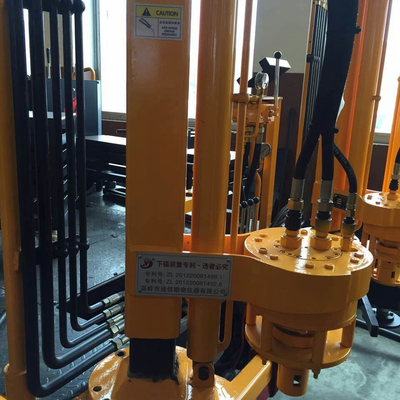

Cpt hydraulic cylinder device: rated penetration force 100-200kn
Rated pulling force: 100-200kn
Stoke 550mm can be quickly rise, directly under the casing
Card probe rod form: mechanical probe rod automatic clamp or pad insert type
Anchor: hydraulic anchor device form
Maximum size: 2600*1700*1500mm
Weight: 2100kg
Hydraulic oil thank capacity: 170
Walking speed: 1-5(km/h)less than 30 degree slop walking
Working environment temperature: -25-45℃
Anchor: single or multi leaf anchor diameter (mm:300-400)
The supporting probe: 10cm or 15cm, single and double bridge static electric measuring probe, cross plate probe, pore water pressure probe
Measuring instruments: static probe data automatic collection instrument or supporting the European and American brands
