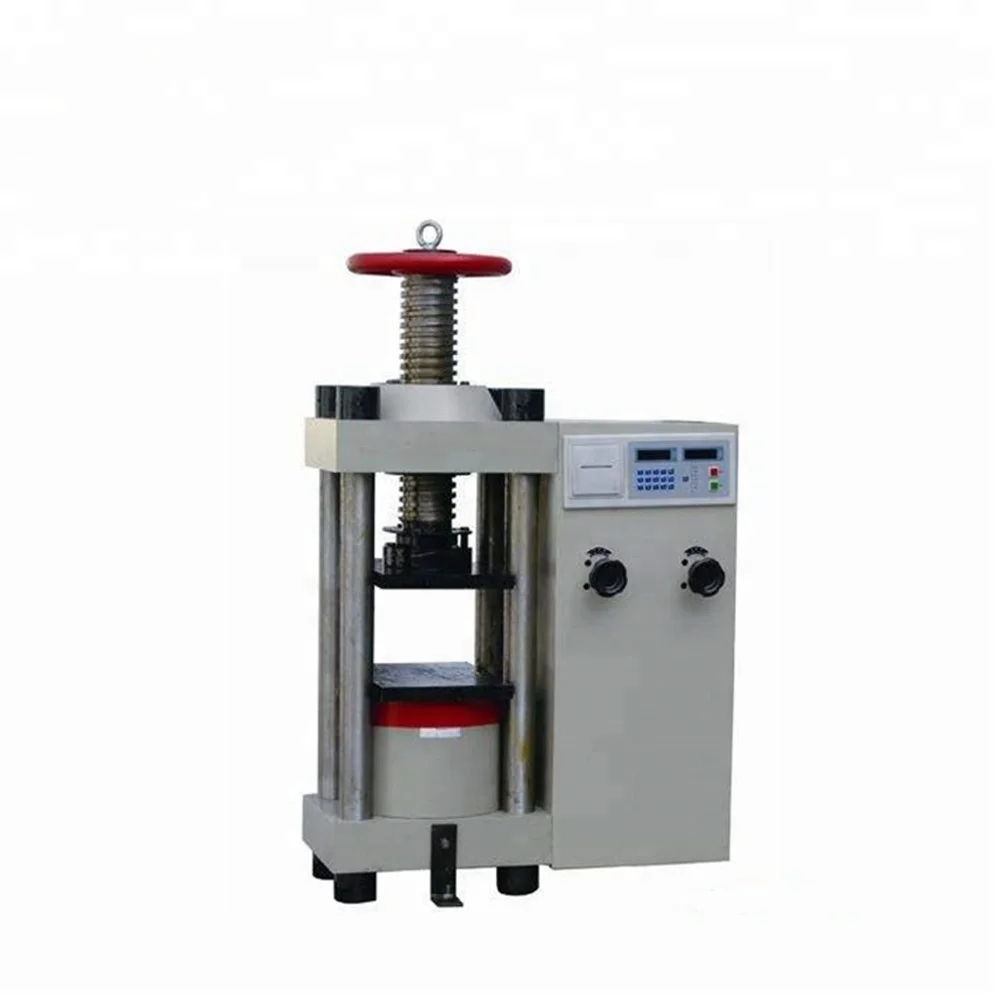

YES-3000D Digital concrete compression testing machine for bricks and steel material testing

YES-3000D Digital concrete compression testing machine for bricks and steel material testing

    • YES-3000D Digital concrete compression testing machine for bricks and steel material testing
    • YES-3000D Digital concrete compression testing machine for bricks and steel material testing
    • YES-3000D Digital concrete compression testing machine for bricks and steel material testing
  • YES-3000D Digital concrete compression testing machine for bricks and steel material testing

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO
    Model Number: YES-3000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $4500
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Max. Load: 3000kN Class: 1 Class
    Testing Space Regulating Way: Electric Ball Screw Adjust Control Way: Manual Control Load Way
    Range Of Test Force: 4% ~100%FS Piston Route: 80mm

    Product Description



    YES-3000D Digital concrete compression testing machine







    1.Application



    Digital display compression testing machine mainly used for concrete and other material compression resist testing. Widely used inmetallurgy, building materials, space flight and aviation, colleges and universitiesR&D institutionlines. The test operation and data processing meets standard requirements.





    YES-3000D Digital concrete compression testing machine  for bricks and steel material testing







    2. Main Specifications



    Model YES-3000D
    Max. load 3000kN
    Class 1 class
    Testing space regulating way Electric ball screw adjust
    Control way Manual control load way
    Oil source control cabinet structure form One-piece bench oil source control cabinet
    Range of test force 4% ~100%FS
    Indicating value accuracy 1%
    Piston route 80mm
    Max piston speed 80mm/min
    Range between the working tables 340mm
    Pressure plates size 250*250mm(Can be customized)
    Display LCD
    Power supply 2.1Kw/AC380V









    Service:





    1. Warranty 1 year of replacement and return.



    1, Providing factory visit and study, technical training



    2, 24-hour technical support by e-mail or phone



    3, Providing laboratory construction program design guidelines



    4, Providing product design and OEM service
