Place of Origin: | china |
Brand Name: | zealchon |
Certification: | iso |
Model Number: | dylc |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $10000 |
Packaging Details: | wooden box |
Delivery Time: | 7days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets/month |
Turing Radius: | No Higher Than 4m | .system Oil Pressure: | 14Mpa |
---|---|---|---|
Capacity F Oil Tank: | 100L | .running Speed: | 25-40Km/h |
Specification:
1.full set include running gear,anchorage syste,penetration system and testing system
2.transport:four wheel manual drive
3.drive type:rear drive
4.turing radius:no higher than 4m
5.power force:electrical starting diesel engine
6.power:no lower than 22Hp,rotate:2200-2600RPM
7.Anchorage type:automatic rack type anchorage
8.penetration speed:0.8-1.2m/min;rated penetration power:200KN
9.pull out speed:2.5m/min;pull out power:220KN
10.working medium:68#hydraulic oil
11.system oil pressure:14Mpa
12.capacity f oil tank:100L
13.penetration type:fixture blocks type press and pull out
14.running speed:25-40Km/h
15.working temperature:-10-40 °C

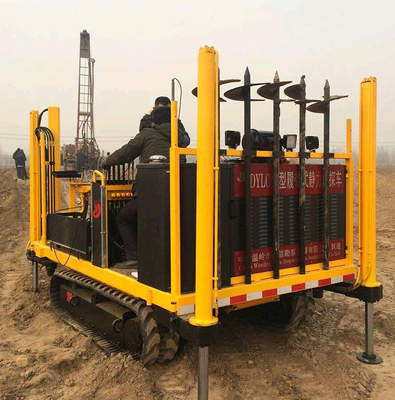

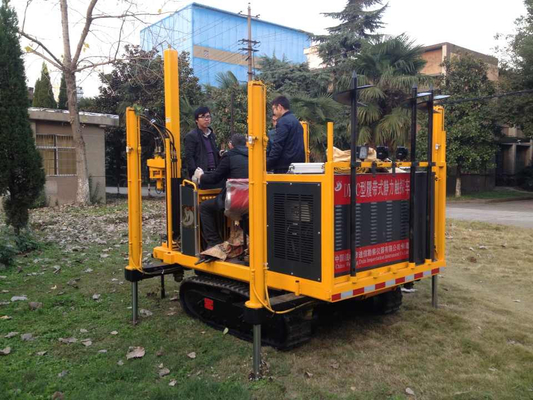

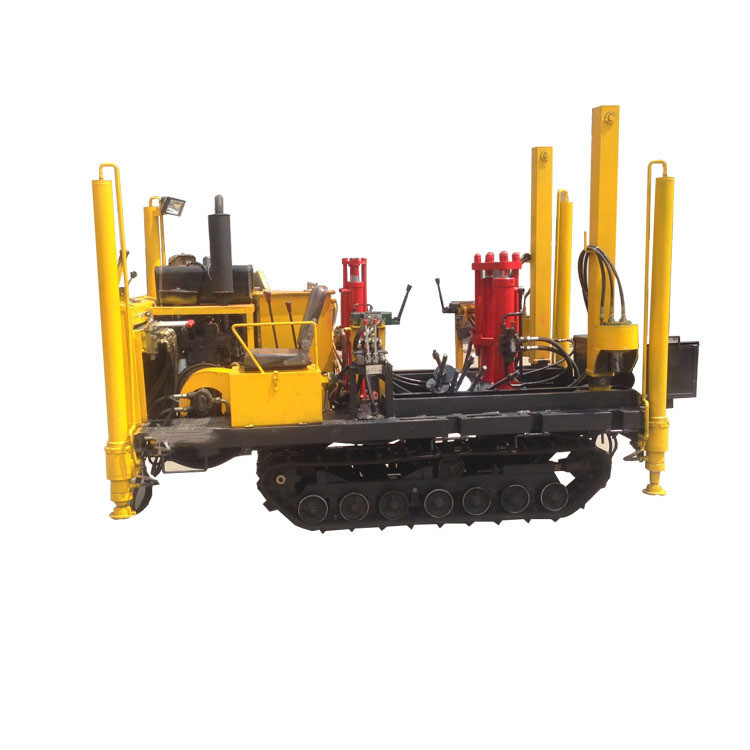

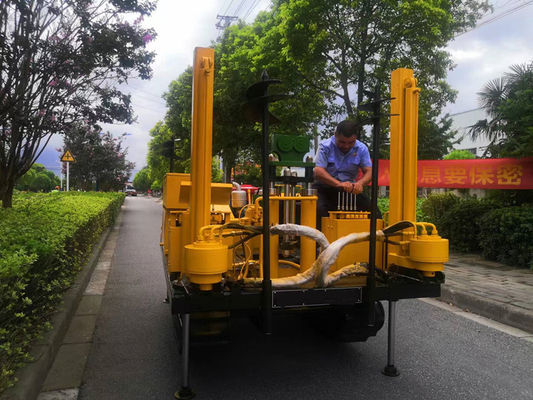

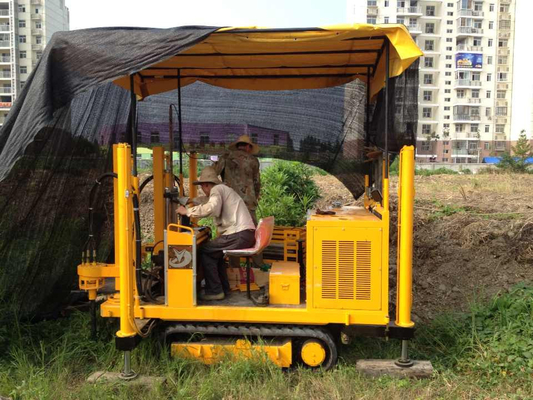

CPT vehicle
