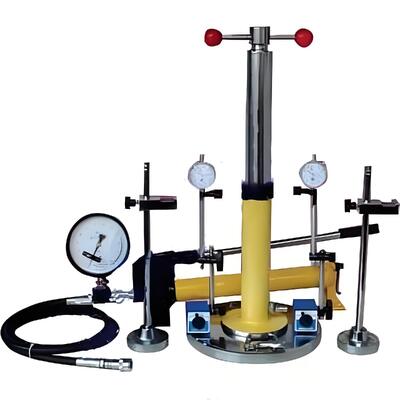

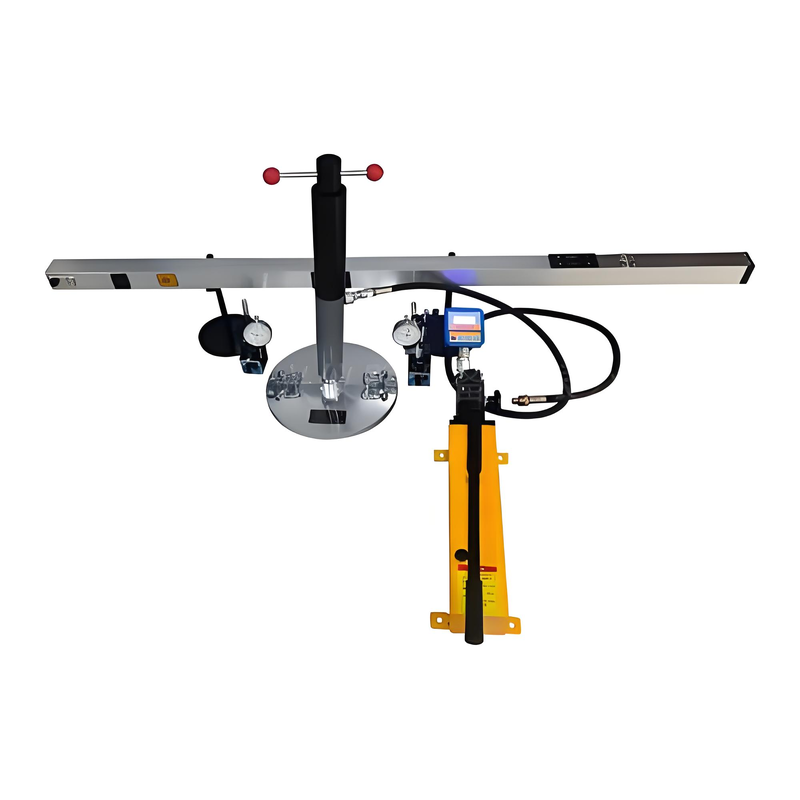

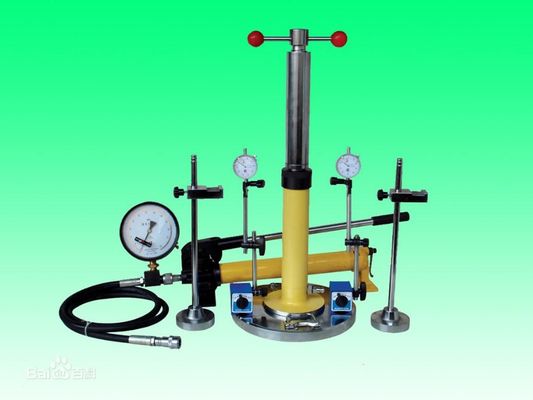

Plate bearing test apparatus
Load plate diameter: 300 mm
Jack load capacity range: 0-300 kN
Jack Stroke: 160 mm
Measuring bridge span: 3000 mm
Hand pump rated pressure: 60 Mpa
Stress test range: 0-25 Mpa
Displacement measurement range: 0-10 mm
Application:
For coarse and fine soil and earth fill embankment foundation compaction factor, grassroots and other tests
The basic structure:
Plate loading device by loading system consisting of measuring bridges
1, the loading system:
By loading plate, jack, manual pumps, high pressure tubing and other components. Load diameter 300mm, thickness carved jack placement positioning line on 25mm, the maximum thrust jack 10t, stroke 160mm, lifters lifting height 100mm, manual pump rated pressure 60Mpa.
2, measuring bridge: from branch to sit, beams and dial indicator stand, etc., along the bearing column lifting beam to adjust the height.
Installation Method:
1, the beam column with a fixed seat to 250mm from the ground is appropriate, both bearings should be flat, the column should have been in the same line, the height of the two beams to the same seat.
2, connect the pump, high pressure tubing pressure gauge, jack.
3, and then the two outer beams were inserted into the beam, and tighten the knob back in place.
4, the height of the whole measuring bridge beams on the bearing column, preferably to 300mm from the ground.
5. Connect the pressure gauge and pressure tubing.
Precautions:
1, the pressure gauge should be kept clean, dial Chela not arbitrarily or shock, measuring rod section is not tainted dirt and oil, dial indicator, pressure gauge when not in use, cover with plastic cover, placed in a dry place indoors, Eli crack. Moistureproof
2, hydraulic pump oil should be regularly supplemented with 10 oil, filling holes in the rear position, the amount of cylinder oil 1 liter
Procedure:
1. Place the load plate is placed on the test points are leveled.
2. The truck with the trial opened to a certain distance from the test point where the distance of not less than 1m, and truck rear beam is located directly above the loading plate.
3. Place the jack load placed on the board.
4. Install the measuring bridge, so that in roughly symmetrical position with the test point.
5. Turn down the jack screw up, make contact with the truck rear beam. When high enough, use an extension.
6. Install the dial indicator on the dial indicator stand, and dial side lever vertical drop to the measuring point on the load board.
7. In order to stabilize the load plate before adding a certain load (0.01Mpa) and then dismount, read the dial indicator readings as subsidence start reading.
8. Then to 0.04 Mpa as load increment, grading loaded. Once the load termination subsidence, read and record the load intensity and subsidence.
9. When the load exceeds the estimated strength of the actual site maximum contact force, or reach the ground when the yield point of the test is stopped.
Installation and commissioning:
1, the beam column with a fixed seat to 250mm from the ground is appropriate, both bearings should be flat, the column should have been in the same line, the height of the two beams to the same seat.
2, connect the pump, high pressure tubing pressure gauge, jack.
3, and then the two outer beams were inserted into the beam, and tighten the knob back in place.
4, the height of the whole measuring bridge beams on the bearing column, preferably to 300mm from the ground.
5. Connect the pressure gauge and pressure tubing
