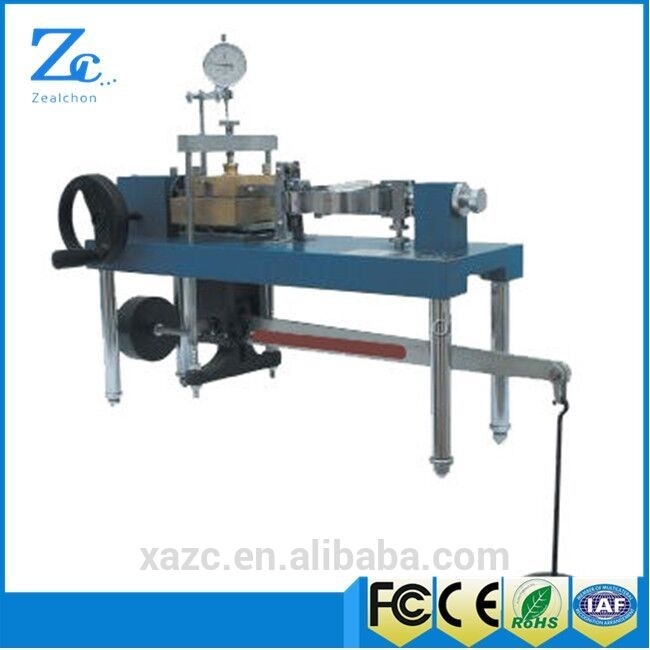

C012-A soil direct shear test machine
Application:
It is the common way to determine the shear strength of soil. under the vertical pressure, Applying horizontal shear to shear, shear stress are obtained. We can determine the shear strength parameters, internal friction Angle and cohesive force according to the coulomb's law. It contains Manual and electric function, and it is equipped with Limited position switch to protect the instruments.
Specification:
| parameter |
details |
| The sample area |
30cm²height2cm |
| lever ratio |
1:12 |
| Farmar add vertical load |
grading 50,100,200,300,400kPa |
| The maximum horizontal shear stress |
1.2kN |
| The vertical deformation |
dialgage 0-10mm precision 0.01mm |
| Instrument weight |
34kg Attached weight 6.12kg |
| size |
710×295×440(mm) |
