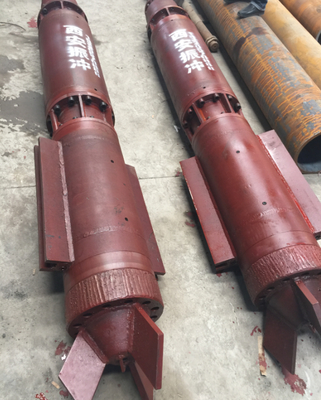

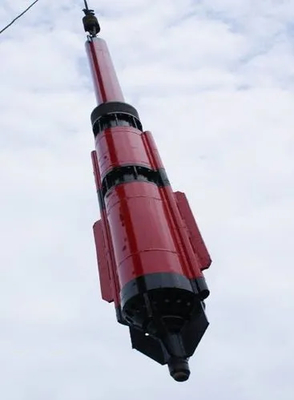

ZCQ100 Vibration Compaction Advanced Construction Equipments For Vibro Compaction Ground Improvement

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO
Model Number:	ZCQ100

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$15000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Motor Power::	150 KW	Max. Amplitude::	18.9 Mm
Rate Current:	290 A	Max. Speed:	1450 R/min

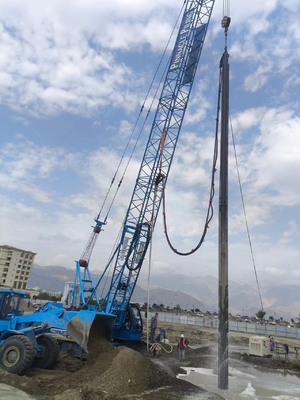

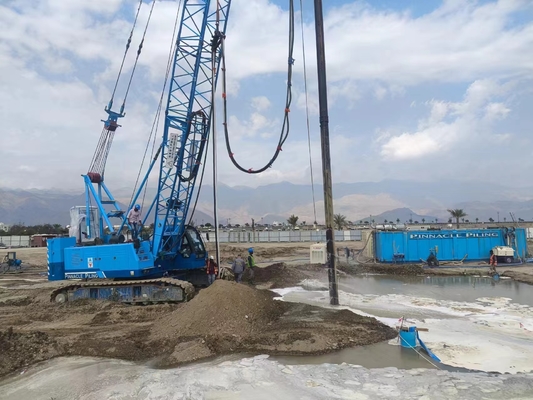

Vibro-Replacement is the process of constructing stone columns using a vibratory probe (vibroflot). After the vibroflot penetrates to the desired depth of treatment, stone fill is deposited into the hole from the ground surface or through feed tubes to the tip of the vibroflot as it is withdrawn. Repeated raising and lowering ("plunging") of the vibroflot into the stone during withdrawal results in columns of stone measuring 30-42" (750-1100mm) in diameter. As with vibro-replacement, stone columns results in higher bearing capacities for shallow foundations, a reduction in total and differential settlement, increased safety factors for slope stability, and mitigation of liquefaction potential in seismically active areas. Vibro-replacement is often an economical alternative to deep foundations, especially when considering the added liquefaction protection in seismic areas.

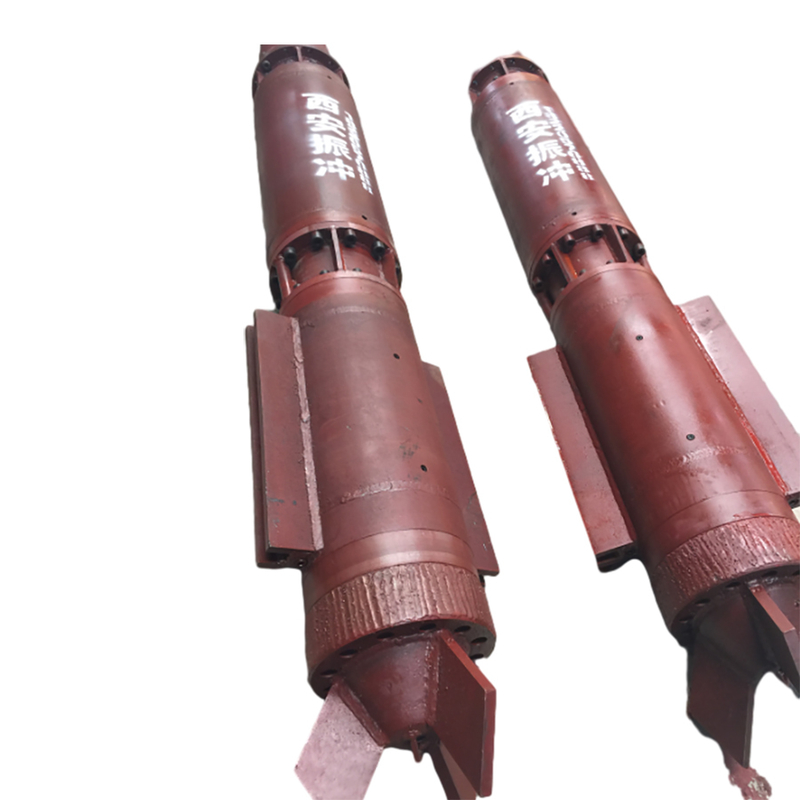

ZCQ100 Vibration Compaction Advanced Construction Equipments For Vibro Compaction Ground Improvement

Vibro Replacement is a method of constructing stone columns through fill material and weak soils, to improve their load bearing and settlement characteristics. Vibro Replacement provides an economic and technically sound solution to a wide range of geotechnical and foundation problems.

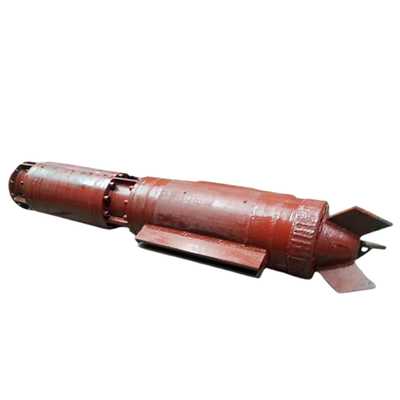

ZCQ100 Vibration Compaction Advanced Construction Equipments For Vibro Compaction Ground Improvement
