A21 Touch Screen Asphalt Brookfield Rotational Viscometer with ASTM D4402

A21 Touch Screen Asphalt Brookfield Rotational Viscometer with ASTM D4402

    • A21 Touch Screen Asphalt Brookfield Rotational Viscometer with ASTM D4402
    • A21 Touch Screen Asphalt Brookfield Rotational Viscometer with ASTM D4402
    • A21 Touch Screen Asphalt Brookfield Rotational Viscometer with ASTM D4402
    • A21 Touch Screen Asphalt Brookfield Rotational Viscometer with ASTM D4402
    • A21 Touch Screen Asphalt Brookfield Rotational Viscometer with ASTM D4402
  • A21 Touch Screen Asphalt Brookfield Rotational Viscometer with ASTM D4402

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO CE
    Model Number: A21

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $3200
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Measuring Range: 100mPa.s ~ 200000mPa. S Rotor Size: 27 # Rotor (21 #, 28 #, 29 # Rotor Is Optional)
    Rotor Speed: 5 R/ Min, 10 R/ Min, 20 R / Min, 50 R/ Min Temperature Range: RT +20 ºC ~ 200 ºC

    Product Description

    Product Description

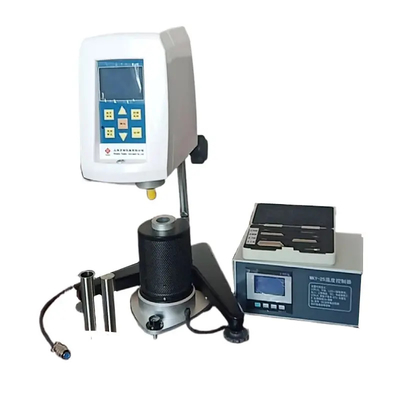

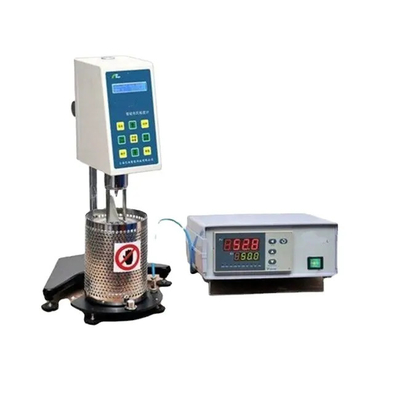

    A21 LCD Touch Screen Brookfield Rotational Viscometer with ASTM D4402


    This asphalt rotational viscometer manufacturing is according to standard of "ASTM D4402 and BIS 73 and "SH/T-0793-2003" asphalt Brandt rotational viscometer test standards, Using rotary process to test the apparent viscosity of asphalt road in the temperature range above 45 ºC, by milli-Pascal seconds (MPa. s).
    According to the measurement results, we can find out the recommended mixing and compaction construction temperatures. Compared with similar products, with high accuracy, stable viscosity value display, easy to read, easy to operate, good anti-jamming performance advantages.Specially used to measrue apparent viscosity of the asphalt road. Also used to measure the viscosity of hot melt adhesive, wax, polymer and other fluids.

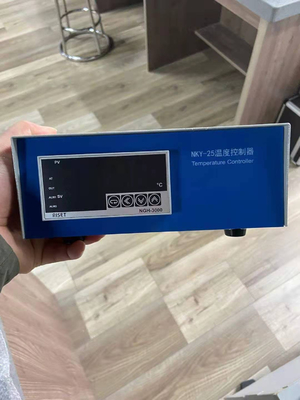

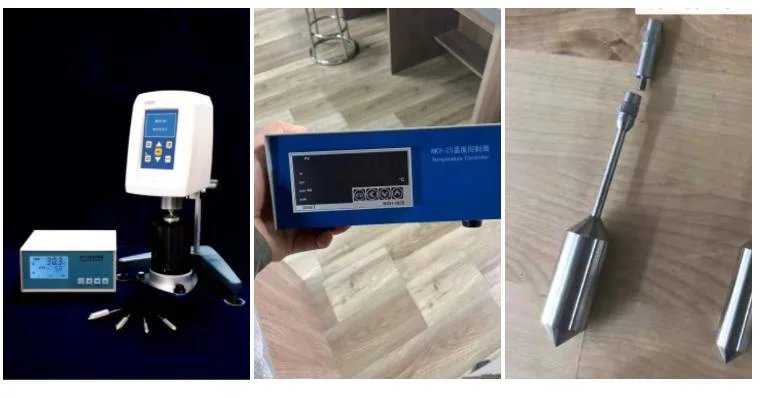

    Detailed Photos

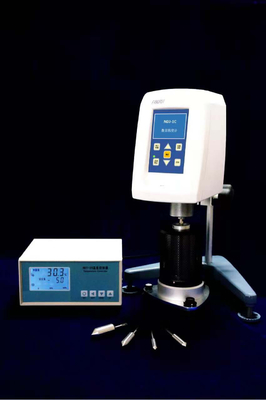

    A21 Touch Screen Asphalt Brookfield Rotational Viscometer with ASTM D4402
    Product Parameters



    Parameter Names
    Details
    Measuring range
    100mPa.s ~ 200000mPa. S

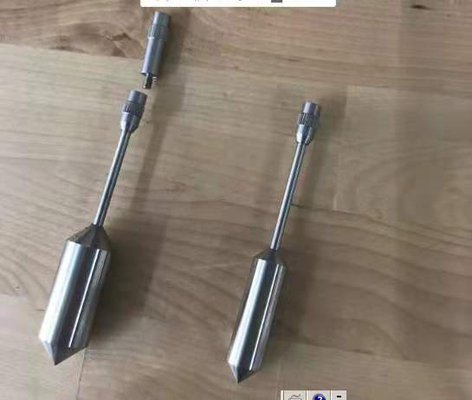

    Rotor Size
    27 # rotor (21 #, 28 #, 29 # rotor is optional)
    Rotor Speed
    5 r/ min, 10 r/ min, 20 r / min, 50 r/ min
    Measuring modes
    Manual, automatic
    measurement error
    ± 3% F.S
    Temperature range
    RT +20 ºC ~ 200 ºC
    Temperature accuracy
    ± 0.1 ºC
    Power supply
    Voltage 220V ± 10V, frequency 50Hz ± 10Hz
    Net weight
    2.5 kg (not including the base form at the top)
    Boudary Dimensions
    105mm × 120mm × 160mm (Do not include the base)
    Lab display



    A21 Touch Screen Asphalt Brookfield Rotational Viscometer with ASTM D4402

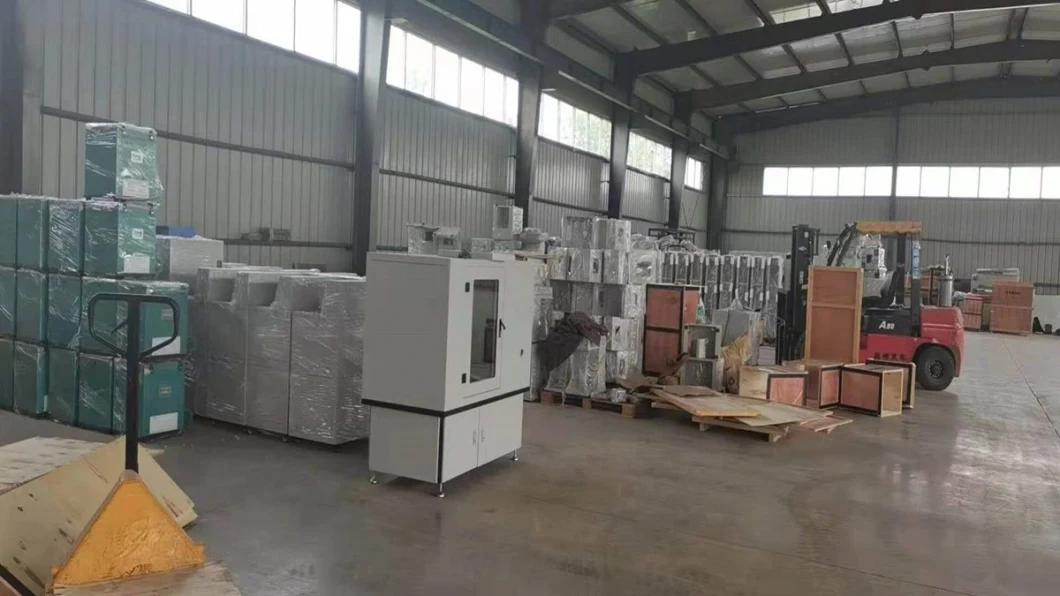

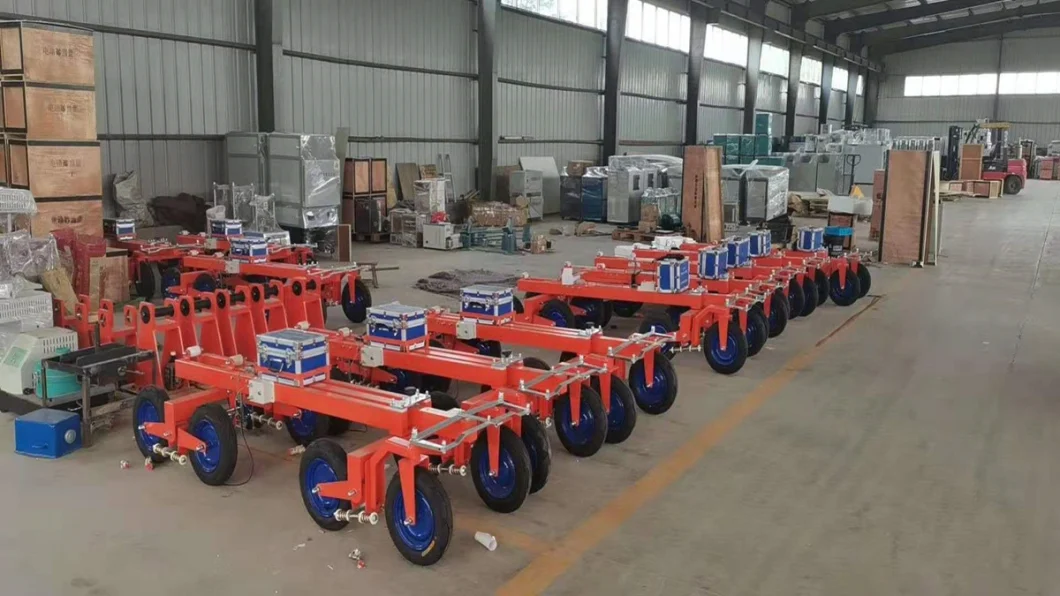

    Company Profile



    A21 Touch Screen Asphalt Brookfield Rotational Viscometer with ASTM D4402
    A21 Touch Screen Asphalt Brookfield Rotational Viscometer with ASTM D4402
    Xi 'an Zealchon electronic technology co., LTD, located in new technology industry development zone in Xi'an, an ancient city in China. It covers an area of 7500 square meters of building area. Zealchen specialize in two aspects: one is civil engineering research and experimental apparatus; another is the semiconductor laser research and development. On one hand, currently based on civil experimental instrument research, the research team is founded by the personnel who come from Chang 'an university, Xi 'an polytechnic university, Xi 'an petroleum university, which has the top technology in this expertise. In addition, its research and development has accomplished a series of leading domestic and international standards, first-class technology of asphalt and asphalt mixture, road, bridge deck, geotechnical, structural testing instruments, even more, some of the products fill the blank of similar equipment at home and abroad, won national, ministerial, provincial awards. On-site manufacturing allows us to customize our products quickly and efficiently to meet specialized customer requests. Our technical support team, marketing, and web development teams make their homes in china as well, and are dedicated to providing comprehensive customer support and services.
