B017 Portable Rubber British Pendulum Slip Resistance Testing Equipment

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO
Model Number:	B017

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$1000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Pendulum Weight:	1500g±30g	Distance Of The Center Of Gravity Of Pendulum:	410mm±5g
The Positive Static Pressure Of Gliding Block (rubber) To Pavement:	22.2N±0.5N	Rubber Size:	6.35mm×25.4mm×76.2mm(pavement)

Product Description

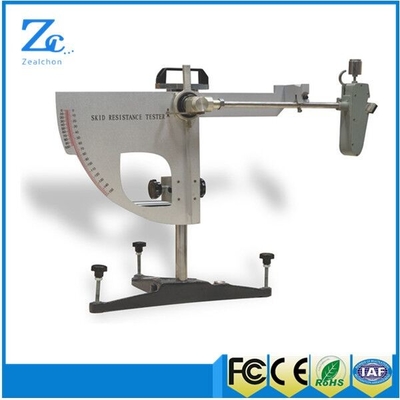

B017 Portable Rubber British Pendulum Slip Resistance Testing Equipment

Application:

The instrument is used to measure the resistance value of the asphalt pavement marking, stone, or other material (specimen)and to assess anti-sliding ability of the road and the road surface material (specimen) in wet or humid conditions.

Specification:

Parameters	Details
Pendulum Weight	1500g±30g
Distance of the center of gravity of Pendulum	410mm±5g
The positive static pressure of Gliding block (rubber) to pavement	22.2N±0.5N
Rubber size	6.35mm×25.4mm×76.2mm(pavement)
The gliding block size (rubber) Stone (coarse aggregate) used	31.75mm×25.4mm×6.35mm
Sliding length On the road surface	126mm±1mm
Rubber end to swing center distance	510mm±2mm
Rubber Shaw hardness	55±5
Measure gauge	30mm
