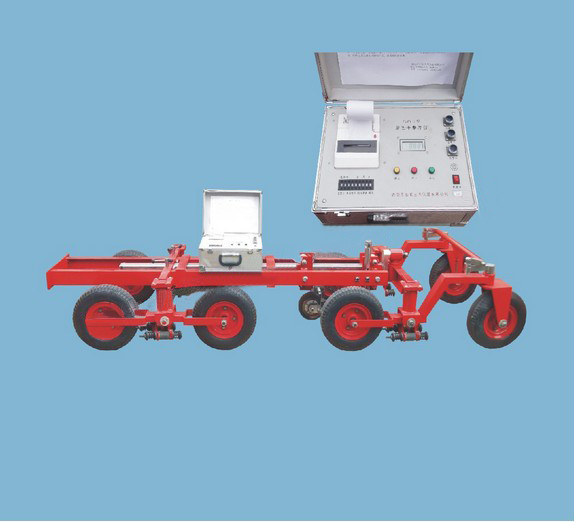

B002 Pavement texture profile meter for Continuous flatness gauge

B002 Pavement texture profile meter for Continuous flatness gauge

B002 Pavement texture profile meter for Continuous flatness gauge

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO CE
Model Number: B002

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $3000
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Sensors: 0-25 Mm ± 0.01 Mm Sampling Spacing: 0.1 M
The Maximum Speed: 25 Km/h Appearance Size: 4061 * 600 * 600 (mm)
Elongation: 4061 Mm Shorten: 2450 Mm

Product Description

B002 Pavement texture profile meter for Continuous flatness gauge









B002 Pavement texture profile meter for Continuous flatness gauge




Application:





Continuous flatness gauge is used to measure the σof surface roughness , expressed in mm, calculatio

interval length is 1000 m and printing results is convenient (less than 100 m press close button to print the results).









specification:





Parameters Details
Flatness meter testing baseline length 3 m error: ± 1%
Sensors 0-25 mm ± 0.01 mm
Working environment - 10 ~+ 40
Sampling spacing 0.1 m
The maximum speed 25 km/h
Appearance size 4061 * 600 * 600 (mm)
Elongation 4061 mm
Shorten 2450 mm
Voltage 12 V Built-in battery, work for 12 h
Apparatus, weight 235 kg
Controller weight 6 kg, can be used in setting road number, pile number of mileage number
Sampling interval 0.1 m error: 0.1 mm
Resolution 0.01 mm
Out-of-tolerance setting 0-15 mm k + k - positive and negative value H ,unit ,mm ;cumulative value s,unit, cm2







Lab Display

B002 Pavement texture profile meter for Continuous flatness gauge



B002 Pavement texture profile meter for Continuous flatness gauge
