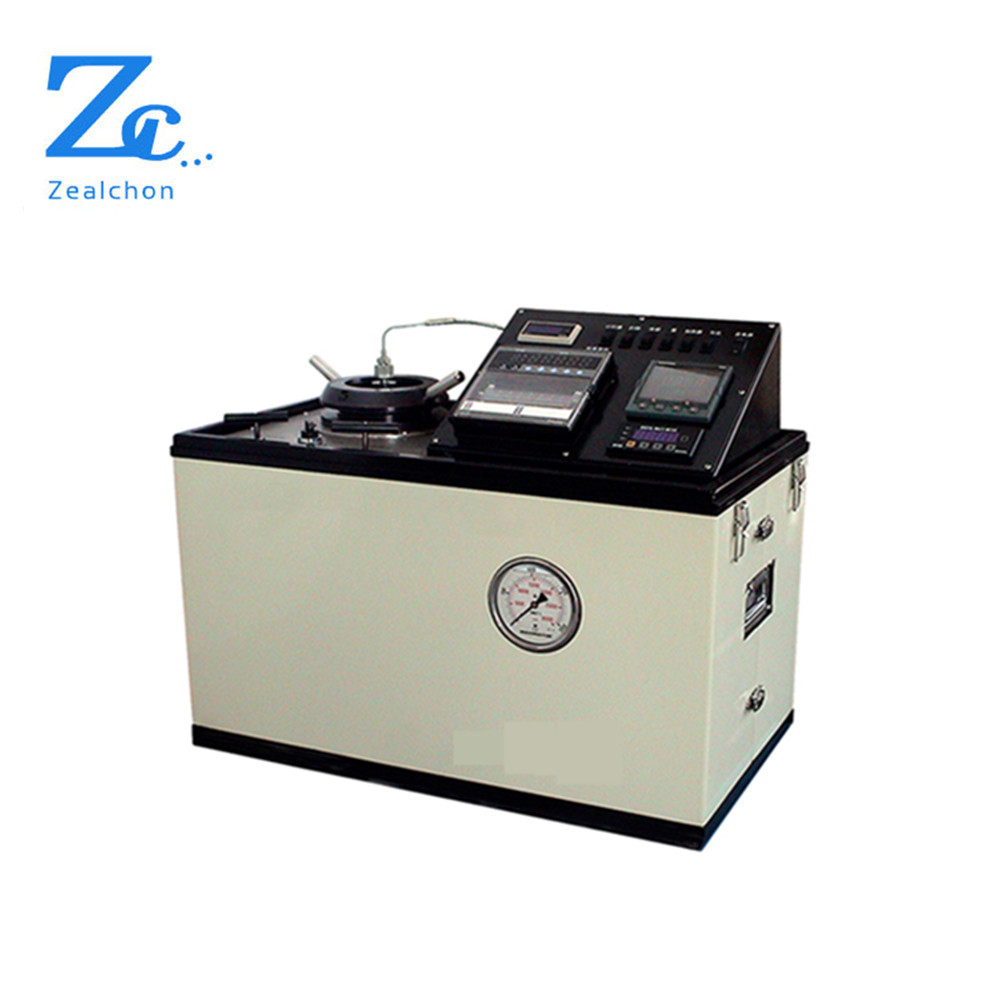

7720 HTHP pressurized cement consistometer

7720 HTHP pressurized cement consistometer

7720 HTHP pressurized cement consistometer

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO
Model Number: 7720

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $20000
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
The Highest Operating Temperature: 204℃(400℉) The Highest Working Pressure: 150 Mpa
Heater Power: 3000W Rotary Speed Of Slurry Cup: 150r/min
Compressed Air: 400–700 KPa(50–100PSI)

Product Description



7720 HTHP pressurized cement consistometer



Application:



7720 has compact design, heats and pressurizes rapidly. Cylindrical slurry cup and fixed mixer are assembled together and put in pressure autoclave. Maximum working pressure is 137 Mpa (20,000psi). Maximum temperature is 204°C(400°F). Air-Driven Hydraulic Pump provides pressure to autoclave. Hydraulic pressure system is composed to fuel tank, piping system, valve and filters.Heat the autoclave through 3000w build-in pipe heater.Programmable temperature controller controls rise speed of temperature automatically. When slurry reaches expected temperature, controller will keep set temperature. Air-Driven Hydraulic Pump pressurizes. Pressure relief valve and Air-Driven Hydraulic Pump can control pressure. Slurry cup turns at constant speed of 150±15rpm through magnetic drive. Driving torque is passed into permanent magnet inside the autoclave from a group drive magnet outside through rack. Permanent rare earth magnet can guarantee high torque and long time magnetic field. Viscosity of cement slurry will be recorded on a form through potentiometer in pressure reactor. There’s a standard torsion springs in potentiometer to prevent rotary force in mixer. Rotary force is in proportion to cement slurry’s consistency. All 7720 series slurry’s temperature and consistency are recorded on a paper printer. Automatic consistometer pressure passage is recorded on a paper printer too and with computer data capture interface.







Completely meet American Petroleum Institute norm 10 requests
The number type intelligence temperature the controller and number temperature show
The machine body adopts a special metal alloy manufacturing
The pressure is the biggest to reach to 137 Mpa(20000PSI)
The temperature is the biggest to reach 204℃(400℉)
The machine is hard enduring use convenience
Adopt High-Power heating apparatus
The magnetic force drives device and lower to support workload
The machine body has to cool off device and quickly cool off a machine body
The body is sealed by the general O-ring to compress the sealing
The factory headway goes cement syrup test to ensure to use
Draw temperature and dense degree with a type record instrument number
Have a calculator to connect, can calculator signal the line link electric outlet at the behind up













Specification:







The highest operating Temperature 204℃(400℉)
The highest working pressure 137 Mpa(20000PSI)
Heater power 3000W
Rotary speed of slurry cup 150r/min
Consistency range 0–100BC
Pressure medium HPHT consistometer special-propose oil(haitongda)
Optional automatic pressure The kettle body pressure automatic control
Consistency resolution 1BC
Input pressure 220VAC 50/60HZ
Input Power 4000 W
Environment working temperature 0–50℃(32–120℉)
compressed air 400–700 KPa(50–100PSI)
cooling water 600 KPa(20–80PSI)
cooling water connector 1/4NPT
Gross Weight 135KG
Package Size 780*480*780
Net Weight 120KG
instrument size 680*680*600

Service:





1. Warranty 1 year of replacement and return.



1, Providing factory visit and study, technical training



2, 24-hour technical support by e-mail or phone



3, Providing laboratory construction program design guidelines



4, Providing product design and OEM service
