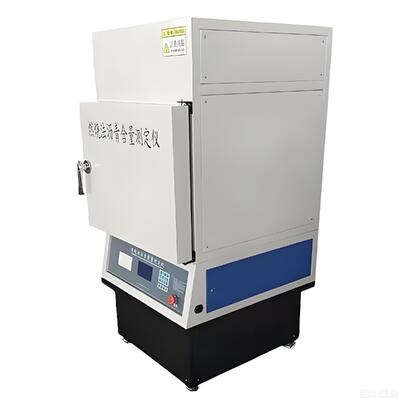

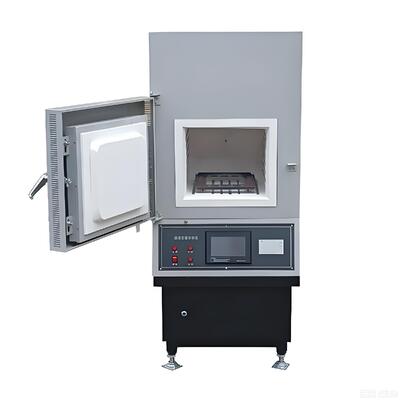

A114 Lab Asphalt Content ABA Asphalt Binder Analyzer

A114 Lab Asphalt Content ABA Asphalt Binder Analyzer - Analysis of Bituminous Mixtures

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO
Model Number:	A114

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Studio Dimension:	350 * W 440 * H 330 Mm	Power::	Operating Voltage 380 ± 10 V (requires Three-phase Star Connection), Current Less Than 20A
Balance Scale:	10Kg; Division Value: 0.1g	Maximum Combustion Temperature:	800 ℃. Heating Power 7kW
Maximum Of Sample Weight:	3500g; Recommended Sample Weight 1000 ~ 1500g

Product Description

A114 Lab Asphalt Content ABA Asphalt Binder Analyzer - Analysis of Bituminous Mixtures

Technical parameters:
1 Studio Dimension: 350 * W 440 * H 330 mm
2 Power: Operating voltage 380 ± 10 V (requires three-phase star connection), current less than 20A
(3) balance scale: 10Kg; Division value: 0.1g
4 maximum combustion temperature:. 800 ℃. Heating power 7kW
5 Maximum of sample weight: 3500g; recommended sample weight 1000 ~ 1500g
6 Test stability factor: 0.1%
7 SCM measurement and control: The control panel settings on the front of the device, the operator can set the touch key test parameters and test operation. Trials when display real-time display of test parameters and test data, automatically formed after the end of the test print documents, the printer automatically print test report.

Application:

HYRS-6-type combustion method asphalt content tester meets U.S. standards ASTM D6307-98 and AASHTO T308-99 technical requirement, can test the asphalt content quickly, accurately and safely reliably. Meet requirements of mixing station large quantities and continuous production andhighways supervision inspection, thus ensuring the quality of road construction. Also comply with the People's Republic of China Ministry of Transportation industry standards "JTG E20-2011 asphalt and asphalt mixture testing procedures highway T0735-2011 asphalt mixture asphalt content test (combustion)
