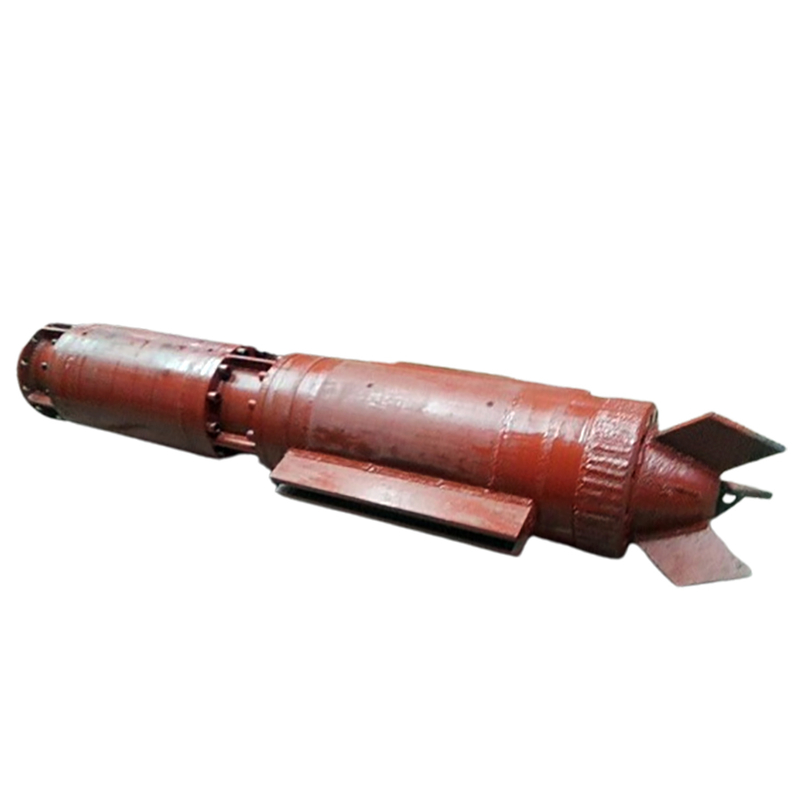

ZCQ100 Vibration Compaction Advanced Construction Equipments For Vibro Compaction Ground Improvement

ZCQ100 Vibration Compaction Advanced Construction Equipments For Vibro Compaction Ground Improvement

    • ZCQ100 Vibration Compaction Advanced Construction Equipments For Vibro Compaction Ground Improvement
    • ZCQ100 Vibration Compaction Advanced Construction Equipments For Vibro Compaction Ground Improvement
    • ZCQ100 Vibration Compaction Advanced Construction Equipments For Vibro Compaction Ground Improvement
    • ZCQ100 Vibration Compaction Advanced Construction Equipments For Vibro Compaction Ground Improvement
    • ZCQ100 Vibration Compaction Advanced Construction Equipments For Vibro Compaction Ground Improvement
  • ZCQ100 Vibration Compaction Advanced Construction Equipments For Vibro Compaction Ground Improvement

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: iso
    Model Number: ZCQ100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $20000
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Rated Power: 100 Rotating Speed: 1450 (1950)
    Current Rating: 196 Vibration Frequency: 24
    Moment: 78

    Product Description

    Vibro-Replacement is the process of constructing stone columns using a vibratory probe (vibroflot). After the vibroflot penetrates to the desired depth of treatment, stone fill is deposited into the hole from the ground surface or through feed tubes to the tip of the vibroflot as it is withdrawn. Repeated raising and lowering ("plunging") of the vibroflot into the stone during withdrawal results in columns of stone measuring 30-42" (750-1100mm) in diameter. As with vibro-replacement, stone columns results in higher bearing capacities for shallow foundations, a reduction in total and differential settlement, increased safety factors for slope stability, and mitigation of liquefaction potential in seismically active areas. Vibro-replacement is often an economical alternative to deep foundations, especially when considering the added liquefaction protection in seismic areas.





    ZCQ100 Vibration Compaction Advanced Construction Equipments For Vibro Compaction Ground Improvement









    Vibro Replacement is a method of constructing stone columns through fill material and weak soils, to improve their load bearing and settlement characteristics. Vibro Replacement provides an economic and technically sound solution to a wide range of geotechnical and foundation problems.







    specification ZCQ45 ZCQ55 ZCQ75 ZCQ100 ZCQ130
    Vibro
    Motor
    rated power kw 45 55 75 100 130
    Rotating speed r/mim 1450 (1950) 1450 (1950) 1450 (1950) 1450 (1950) 1450 (1950)
    Current Rating A 86 110 150 196 256
    Vibration
    move
    machine
    body
    Vibration frequency HZ 24 24 24 24 24
    Moment N.m 47 56 69 78 88
    Exciting force kN 110-200 130-235 180-325 190-350 210-380
    Empty vibration amplitude mm ≥18 ≥16 ≥15 ≥15 ≥16
    Empty LO current A ≤35 ≤40 ≤50 ≤60 ≤70
    The outer diameter of the body mm 351 377 426 426 426
    Body length mm ≤2230 ≤2465 ≤2600 ≤2750 ≤2860
    The total mass kg 1000 1350 1800 1950 2200

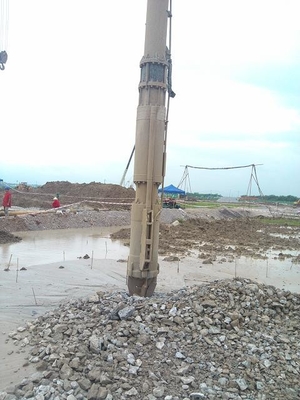

    Previous project pictures



    China Sinopec Hainan commercial crude oil reserve base project





    HZMB Island tunnel project







    China Sinopec Caofeidian crude oil commercial reserve base library project







    International market




    Companies based in China, the world. Actively explore the international market, international sales companies are mainly concentrated in Africa, the Middle East and Asian countries, including: Benin, Sri Lanka, Indonesia, Malaysia, Algeria and other countries, and high customer credibility and visibility.




    1, Chinese Embassy in Benin project equipment procurement negotiations







    2,Indonesia Port and foundation construction of offshore Vibro
