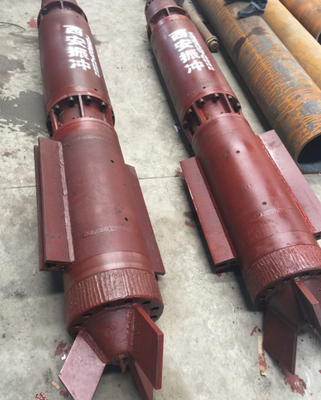

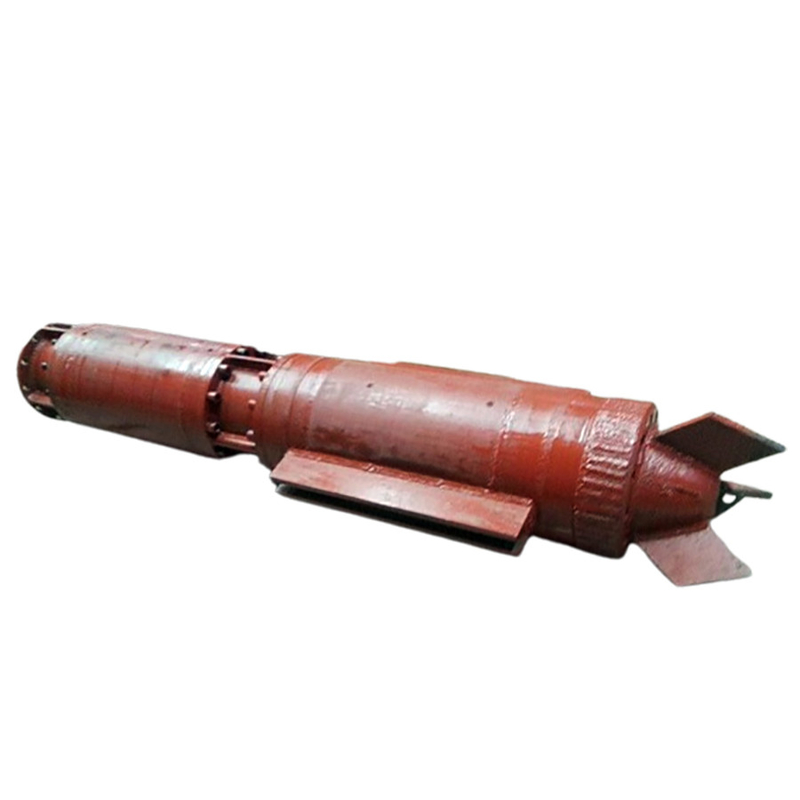

ZCQ180 Vibroflotation stone piles for Ground Improvement Engineering

ZCQ180 Vibroflotation stone piles for Ground Improvement Engineering

    • ZCQ180 Vibroflotation stone piles for Ground Improvement Engineering
    • ZCQ180 Vibroflotation stone piles for Ground Improvement Engineering
    • ZCQ180 Vibroflotation stone piles for Ground Improvement Engineering
    • ZCQ180 Vibroflotation stone piles for Ground Improvement Engineering
    • ZCQ180 Vibroflotation stone piles for Ground Improvement Engineering
    • ZCQ180 Vibroflotation stone piles for Ground Improvement Engineering
  • ZCQ180 Vibroflotation stone piles for Ground Improvement Engineering

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: iso
    Model Number: zcq180

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $20000
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Rated Power: 180kw Rotating Speed: 1450 (1950)
    Current Rating: 350 Vibration Frequency: 24
    Moment: 106

    VIBRO COMPACTION

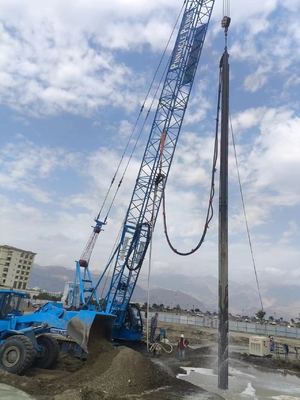

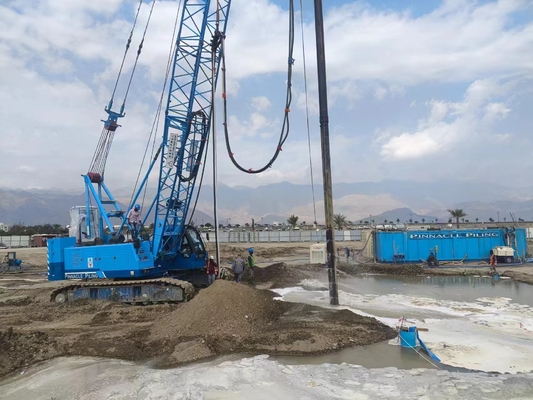

    Vibro Compaction is a deep compaction technique for densifying granular soils with less than 10 – 15% silt present. This method is popular for improving reclaimed land. Under the influence of simultaneous vibration and saturation, loose sand and or gravel particles are repacked into a denser state and lateral confining pressure within the soil mass is increased. The Vibroflot is normally suspended from a standard crawler crane or a piling rig.


    VIBRO REPLACEMENT

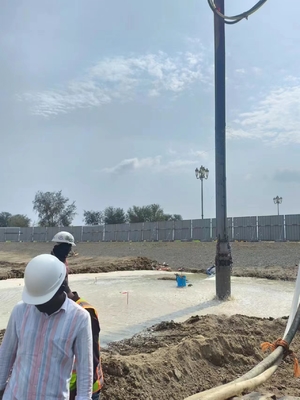

    Vibro Replacement is a technique used in soils that do not respond well to vibration alone. (too stiff, more than 15% silt). The improvement is achieved by creating columns of either crushed stone or concrete (which can be reinforced). The process enables increased load bearing, reduces settlement and even improves the shear resistance of the ground being treated. Stone columns are typically constructed with a bottom feed tube that deposits gravel from a hopper right at the tip of the vibroflot.



    ZCQ180  Vibroflotation stone piles for Ground Improvement Engineering





    ZCQ series variable frequency electric drive Vibroflot technical parameters





    specification ZCQ75 ZCQ100 ZCQ130 ZCQ150 ZCQ180
    Vibro
    Motor
    rated power kw 75 100 130 150 180
    Rotating speed r/mim 1450 (1950) 1450 (1950) 1450 (1950) 1450 (1950) 1450 (1950)
    Current Rating A 150 196 256 291 350
    Vibration
    move
    machine
    body
    Vibration frequency HZ 24 24 24 24 24
    Moment N.m 69 78 88 96 106
    Exciting force kN 180-325 190-350 210-380 230-429 280-506
    Empty vibration amplitude mm ≥15 ≥15 ≥16 ≥18 ≥21
    Empty LO current A ≤50 ≤60 ≤70 ≤80 ≤90
    The outer diameter of the body mm 426 426 426 426 426
    Body length mm ≤2600 ≤2750 ≤2860 ≤3000 ≤3150
    The total mass kg 1800 1950 2200 2300 2400





    Factory introduction:



    we are located in the historic city of China - the ancient capital of Xi'an Chanba New Area, location and convenient transportation, adjacent to China's largest inland port - Xi'an International Port District and a number of Expressway, exit from the motorway just a few hundred meters. Established in 1987, is set research and development, production, sales, promotion as one of the weak foundation and construction machinery are widely used trenchless technology engineering company. Enterprises always adhere to the quality first, the credibility of the first, with technical superiority, strong professional strength and excellence and pioneering spirit of forging ahead in Vibroflot development, production and sales, always in the same industry-leading level.
    Enterprise since its inception, with its own tenacious struggle, flexible and efficient management system and a high level of technical research and development, from weak to strong, continue to occupy the domestic market and exported to overseas, sales rose, after twenty years of effort, It has become a domestic and international Vibroflot production and construction technology leader.
