C066 coarse aggregate accelerating polishing machine

C066 coarse aggregate accelerating polishing machine

C066 coarse aggregate accelerating polishing machine

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: iso
Model Number: c066

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $2000 per set
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Power Supply: AC 380V 50Hz Road Wheel Rotation Speed: 320±5RPM
Rubber Wheel To The Specimen Total Pressure: 725±10N Rubber Wheel Size: 200×44mm
Hardness:: 69IRHD±3IRHD

Product Description

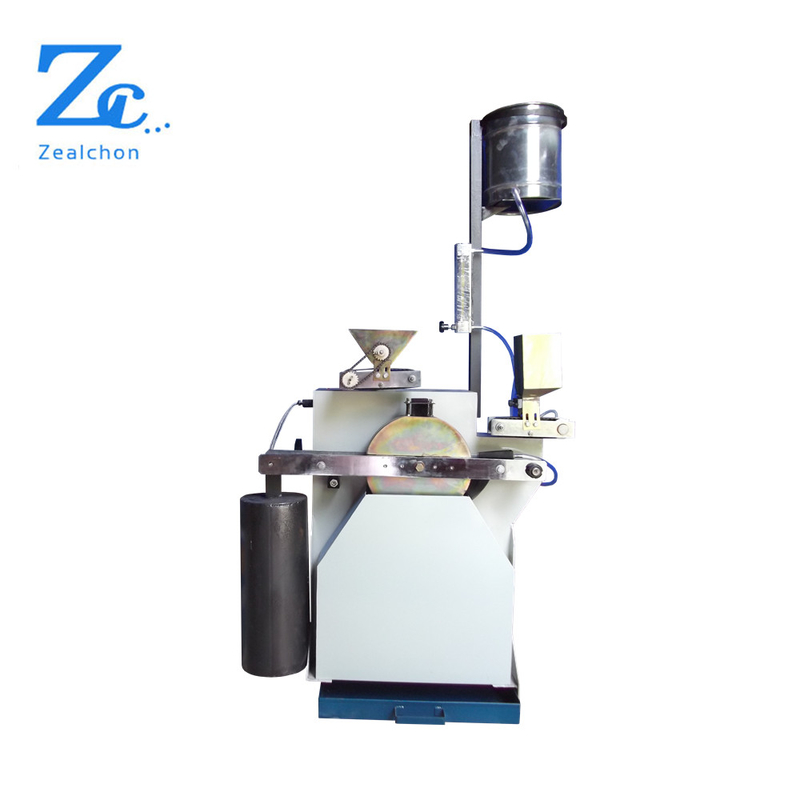

C066 Coarse aggregate accelerating polishing machine





Description

The acceleration polishing machine is used to simulate the car wheel abrasion to the road surface, by acceleration grinding on the aggregate thus to get the aggregate polishing value, and estimate the aggregate polishing property, thus to choose suitable aggregate for different road construction requirements, it’s designed and made by complies to the JTG E42-2005 standard, and also absorb the foreign made advantages. It features compact structure, intelligent control. It’s kind of very common aggregate testing instrument.

Technical parameters

1. Power supply: AC 380V 50Hz,

2. Road wheel rotation speed: 320±5RPM

3. Rubber wheel to the specimen total pressure: 725±10N

4. Rubber wheel size: Φ200×44mm, hardness: 69IRHD±3IRHD

The “C” rubber wheel is used for grind the coarse sand, the X rubber wheel is used for grind the fine sand.

5. Diamond sand (30# brown fused alumina,280#green silicon carbide

Packing list

1. Main machine—- 1set

2.Accessories——— 1set(see the list)

3. Quality certificate—1 pc

4. Operation Manual

Accessories list

No. Name Qty Unit
1 Mould 8 set
2 Water tank 1 pc
3 Sliding device 1 pc
4 Water pipe 1 pc
5 Standard specimen 10 pc
6 Asbestos gasket 20-50 pc
7 8×10 Wrench 1 pc
8 76mm ruler 1 pc



Product pictures:





Service:







1. Warranty 1 year of replacement and return.





2, Providing factory visit and study, technical training





3, 24-hour technical support by e-mail or phone





4, Providing laboratory construction program design guidelines





5, Providing product design and OEM service























Packing and Shipping:

















Trade Show:













Certification:
