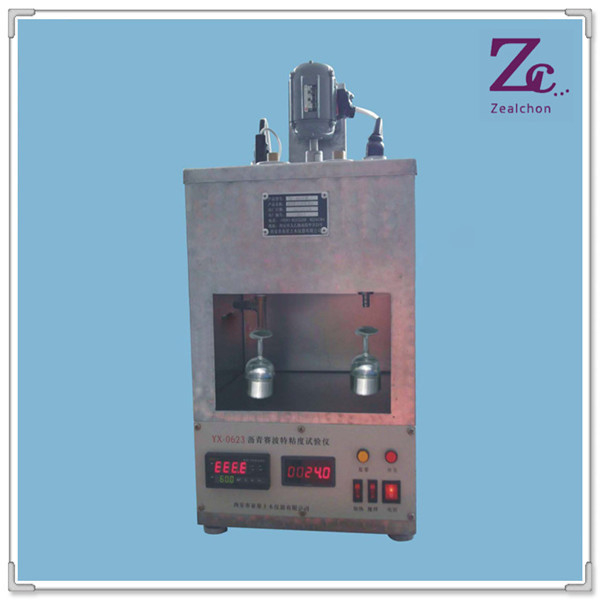

A23 Asphalt Saybolt Viscosity Usage and Vacuum Power Viscometer ASTM D88
Standard: ASTM D88
Description
The Saybolt viscometer is used to test the asphalt viscosity under specific constant temperature according to the JTJ052 T0623 Standard, it’s kind of common asphalt testing instrument.
Features
This instrument is mainly comprised of water bath, bath temperature controller, parameter display calculator (calibrate coefficient, time, viscosity).
Microprocessor control technology, dual-channel sync parallel test, digital display, automatic average value calculation
The obtained test results can converted to Engler or kinematic viscosity immediately automatically
Technical specifications
| Power supply |
AC 220V±10% , 50Hz |
| Instrument type |
Bench |
| Working mode |
Dual-channel sync parallel test |
| Sample receiving flask volume |
60±0.05ml |
| Bath heating power |
1000W |
| Bath working temperature |
RT-240.0℃ |
| Bath temperature control accuracy |
±0.1℃ |
| Test timing range |
0.0s∼999.9s |
|
Timing accuracy
Ambient temperature
|
±0.1s
≤35℃
|
| Relative humidity |
≤85%
|
Detailed Images
Specification:
| Main Technical Indicators |
| Parameter Names |
Details |
| Range of temperature control |
Room temperature to 99℃ |
| Temperature control precision |
±0.1℃ |
| Bath heating power |
1000W |
| Holding sample tube |
2 pieces, inner diameter: 56mm |
| Test timing range |
0s~9999.9s ±0.1s |
| Heat preservation tank size |
250×200×145mm |
| Boundary dimension |
330×380×720mm |
| Sample receiving flask |
Made by heat-resistant glass, volume at 20℃ is 60mL±0.05mL |
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
