A32 Asphalt Pressure Aging Vessel System
Standard: ASTMP36
Application:
The tester complies with People's Republic of China Ministry of industry standards, “JTG E20-2011 highway of bitumen and bituminous mixtures-test procedures”, “T0630-2011 pressure aging vessel accelerated aging test of asphalt”.
With a certain temperature and pressure, add the bituminous emulsifier and modifiers the asphalt performance changing. Simulate different temperatures and different pressures asphalt aging; and aging in a vacuum State;
under different conditions of medium asphalt’s ability to resist oxidative aging.

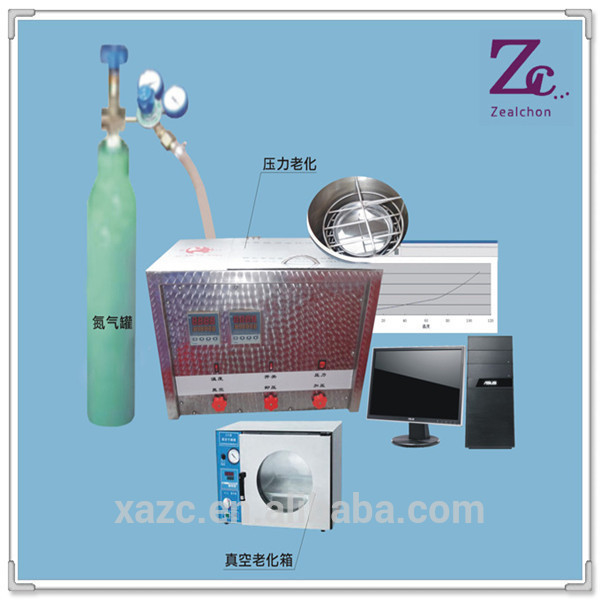

Testing equipment is consisting of pressure vessels, pressure regulator, temperature control instruments, the compressed air bottle, dedicated software. Through the serial port cable connected to the computer, to get the experiment data from the tester, generate the data report and the temperature and pressure curve, and can be
printed out.
Specification:
| Main Technical Indicators |
| Parameter Names |
Details |
| Pressure container’s pressure range |
-0.1~10MPa |
| Container cavity sizes |
Diameter 195mm |
| Height |
275mm |
| heating power |
1000W |
| Sample plate |
10 pieces, stainless steel,
Inner DIA 126mm, height 17mm |
| Nitrogen cylinder |
It’s optional |
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
Related Equipment:
Asphalt sampler, asphalt furnace.
