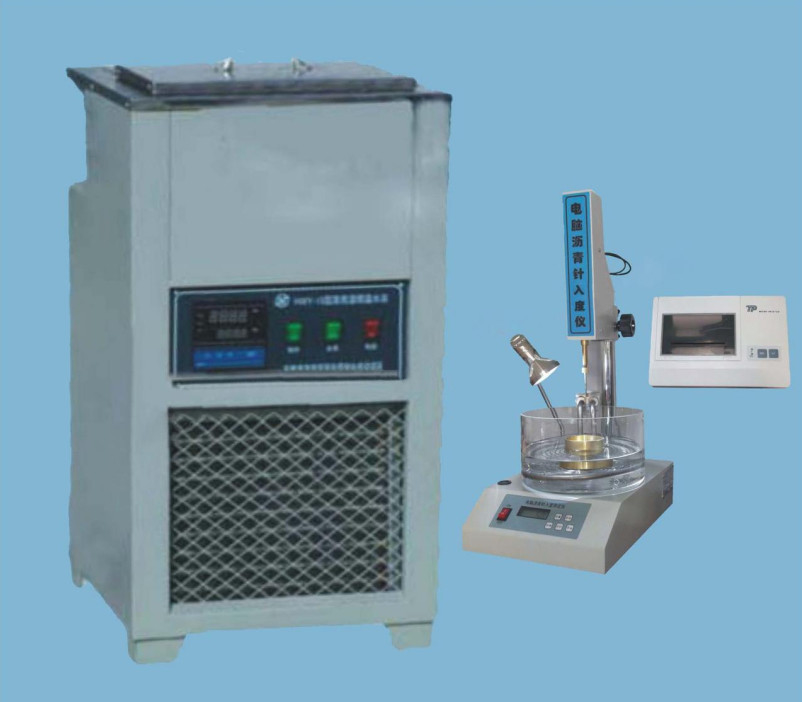

2018 Hot selling automatic Bitumen Penetration Testing Equipment
Standard: ASTMD5 ASTMD217 BS2000
Application:
Penetrometer is used to test the needle penetration of petroleum asphalt for road, polymer modified
asphalt penetration andliquid petroleum asphalt distillation or the residue after evaporation of emulsified
asphaltrecording by 0.1mm
| Main Technical Indicators |
| Parameter Names |
Details |
| Temperature Range |
Test temperature 0 ~ 90 ℃± 0.1 ℃ |
| Needle penetration time |
Boot time: 5s, you can set your own |
| Needle penetration range |
0-40mm ± 0.01 mm |
| Time range |
0-60s ±0.1s |
| Total weight of the standard pin and connecting rod |
50g ± 0.05g |
| Weight mass |
50g ± 0.05g |
| Ambient temperature |
5 ~ 40 ℃ |
| Ambient humidity |
85% |
| Power supply voltage |
220V |
| Boundary dimension |
330 × 230 × 520mm |
| Power |
600W |
| Weight |
7.2kg |
| Water bath heating power |
1000W |
| Water bath cooling power |
2 × 150W |
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
Related Equipment:
Asphalt sampler, asphalt furnace.
