Application:

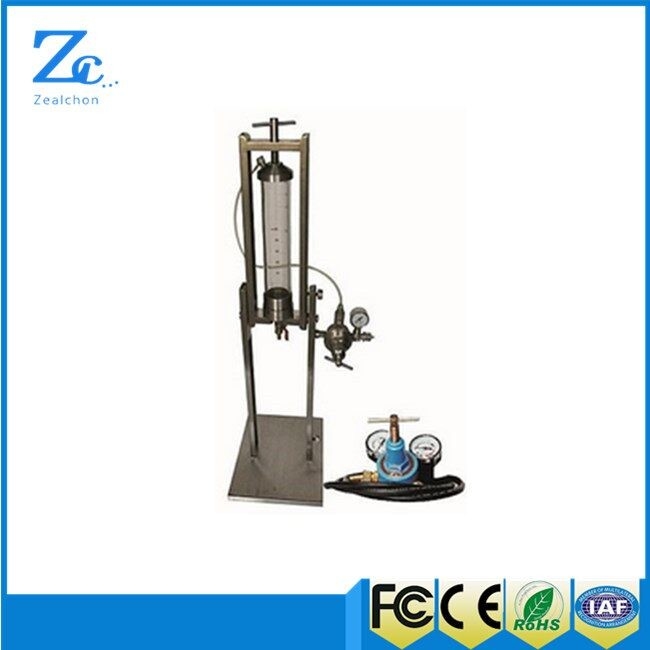

Permeability plugging drilling fluid filter press FA-BX is designed to observe drilling fluid’s filtration and permeation. With the sand filter bed and drilling fluid, then cover the lid, it can be used to observe fluid permeation in transparent barrel under air source pressure. It is widely used in various oil field, geological survey and drilling fluid’s analysis and testing. FA-BX’s barrel is made of high strength transparent materials which has compression resistance, good permeation and visuality.
specification:
| Name |
Technical parameters |
| Effective filtration area |
18cm² |
| Working pressure |
100psi |
| Filter sand injection |
180cm³ |
| Drilling fluid injection |
250cm³ |
| Name |
Model |
Outline Dimension |
Package Size |
Net Weight |
Gross Weight |
| Portable Permeability Plugging Drilling Fluid Filter Press |
FA-BX |
205×305×530mm |
610×345×385mm |
15.5kg |
22.25kg |
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
Related Equipment:
Asphalt sampler, asphalt furnace.
