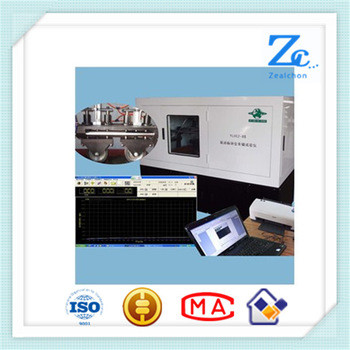

A079 Bitumen Wheel Rutting Tester EN 12697-22

Product Details:

Place of Origin:	China
Brand Name:	ZEALCHON
Certification:	ISO
Model Number:	A79

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$10000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Temperature Control Range:	30 ℃ ~ 80 ℃	Temperature Detection Resolution:	0.1 ℃
Temperature Control Accuracy:	± 0.5 ℃	Thermostatic Chamber Trials Temperature:	60 ℃ ± 1 ℃

A079 Bitumen Wheel Rutting Tester (Research-based)

This product measured asphalt mixture high temperatures rutting resistance,calculationof asphalt mixturedynamic stability.That is at specified temperature and load conditions, the deformation rate rubber wheel ruts formed by walking back and forth, the number of walking every 1mm deformation generates representation, can also be used fortesting high temperature stability of asphalt mixture at the construction sitetest.Cantest two specimen for rutting testat the same time,Convenient user-friendly design: Auto rise or put down trials rubber tire.

A079 Bitumen Wheel Rutting Tester EN 12697-22

Specification:

Technical parameters
parameters name	Details
Test Mold Size	300mm * 300mm * 50mm 300mm * 300mm * 60mm 300mm * 300mm * 80mm 300mm * 300mm * 100mm
Temperature control range	30 ℃ ~ 80 ℃
Temperature detection resolution	0.1 ℃
Temperature control accuracy	± 0.5 ℃
Thermostatic chamber Trials temperature	60 ℃ ± 1 ℃
Displacement detection range	0 ~ 30mm
deformation detection resolution	0.001mm
deformation detection accuracy	± 0.005mm
Rubber wheels on test pieces pressure	the factory tune set to 0.7MPa
cylinder pressure range	0.5 MPa ~ 1.4MPa
Rubber Wheel Size	Diameter 200mm Wheel Width 50mm thickness 15mm rubber wheel
Trials wheel walking distance	230mm
Round rolling speed	42 beats / min
Power; Rated power	380V AC, 3.5kW; 220VAC, 500W
Body dimensions	length × width × height: 2100mm × 1000mm × 1650mm
Main Body Net Weight	860 kg
Application Software For Environmental Windows 2000/Windows XP
According to customer needs, can simulate primary, secondary, surface rutting Trials, the pressure can be adjusted according to need set

Specification

item	value
Warranty	1 year
Certification	ISO
Customized support	OEM
Place of Origin	China
	Shaanxi
Brand Name	Zealchon
Model Number	a079
Power	Electronic
Temperature control range	30 ℃ ~ 80 ℃
Thermostatic chamber Trials temperature	60 ℃ ± 1 ℃
Displacement detection range	0 ~ 30mm
deformation detection resolution	0.001mm
Warranty	1 Year
Power supply	220V 50Hz
Sample size	280 x 340 mm 300 x 300 mm
Sample height	40-100 mm
Test load	up to 705 N
Measuring range of wheel track	0-20 mm , 0.1 mm accuracy
Test modes	Wet, Wet heat, Dry and Dry heat computer controlled for fully automatic operation including display of test result on computer screen
